Ribbon cable EFB Elektronik 22314B.30R

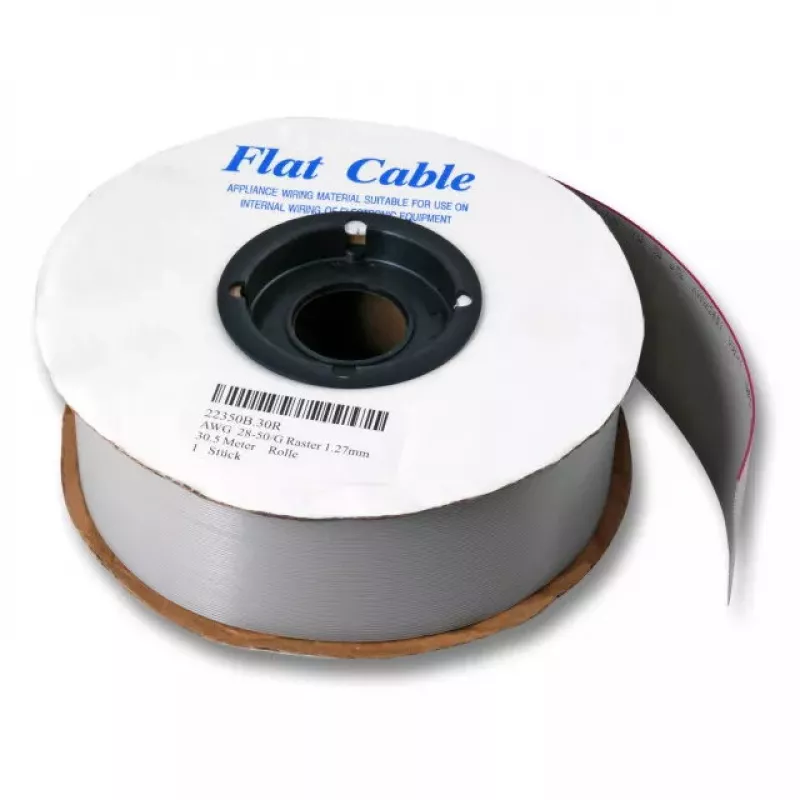

Ribbon cable EFB Elektronik 22314B.30R is a 30.5 m length multi-conductor cable with individual tin-plated wires and a grey PVC jacket. The cable uses AWG28/7 conductors and includes one core identified by a red marker to assist correct orientation during connections.

Advantages

The grey PVC jacket offers flexibility and mechanical protection while remaining suitable for routing in confined spaces. Tin-plated individual conductors improve solderability and corrosion resistance. The red-identified core simplifies correct pin alignment when connecting to headers or connectors.

Suitable for

• Internal wiring of electronic devices and control panels
• Interconnection between PCBs and modules
• Prototyping and cable assemblies where multiple parallel conductors are required

Key specifications

• Brand: EFB Elektronik
• Model/MPN: 22314B.30R
• EAN: 4049759039752
• Length: 30.5 m
• Conductor type: AWG28/7, tin-plated individual wires
• Jacket material: PVC (grey) with one red-identified core

How to use

Cut the ribbon cable to the required length and strip the individual conductors carefully to avoid nicking the copper strands. Use appropriate crimp, solder or IDC connectors compatible with AWG28 conductors. Observe correct orientation by matching the red-identified core to the corresponding pin 1 or designated reference on the mating connector.

Recommendations

For reliable long-term performance, avoid excessive bending radii and mechanical stress at termination points; secure the cable with cable ties or routing clips and keep it away from high-temperature sources. When soldering, use appropriate heat control to protect the PVC insulation.
