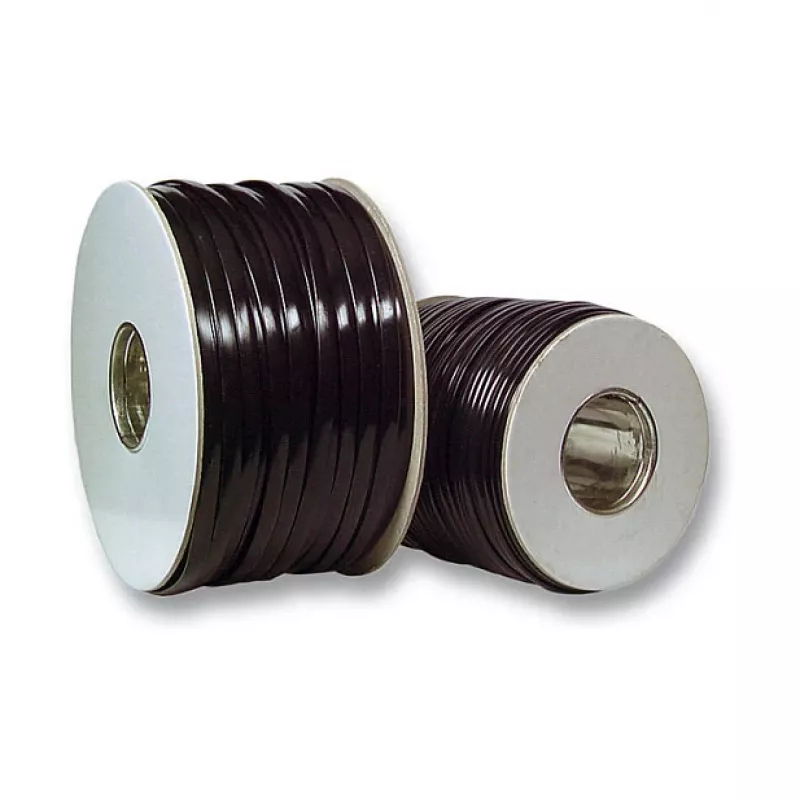

Flat ribbon cable 6-core, black, 500 m spool — EFB Elektronik 91.106.500

Flat ribbon cable 6-core, black on a 500 m spool from EFB Elektronik is a compact multi-conductor cable intended for internal wiring and signal or data connections in electronic devices, control cabinets and industrial systems. The flat construction keeps conductors parallel and closely spaced to enable neat routing in confined spaces, simple insulation layering and efficient mass termination in connectors or IDC terminals.

Advantages

The flat profile minimizes cable height and allows multiple conductors to be laid and routed together, reducing installation time and space requirements. Uniform conductor spacing facilitates reliable IDC or soldered terminations, while the black outer insulation offers standard mechanical protection and a discreet appearance. Supplied on a 500 m spool, the product is suitable for repeated cuts during production runs and reduces the need for frequent restocking.

Suitable for

Key specifications

How to use

Cut the required cable length from the spool using appropriate cable cutters or shears, taking care to avoid crushing the flat profile. For mass termination, align the ribbon with compatible IDC or ribbon connector tooling and follow the connector manufacturer's instructions for insertion and crimping. When routing the cable inside enclosures or panels, secure it with straps or clips designed for flat cables to prevent movement and abrasion. If individual conductors are required, separate the necessary cores carefully and strip insulation at the termination point before soldering or crimping.

Recommendations

Avoid exposure to direct sunlight or aggressive chemicals that can degrade the insulation. Maintain bend radii compatible with the conductor gauge to prevent conductor stress and use strain relief at connector entries. Verify voltage and temperature limits for your specific application and consult connector specifications when performing mass terminations.
