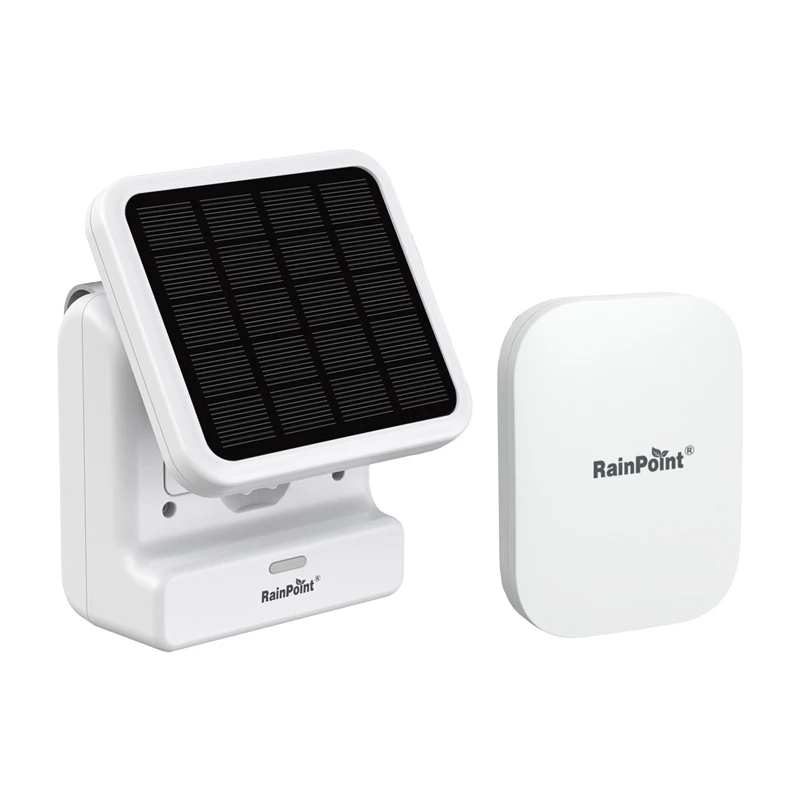

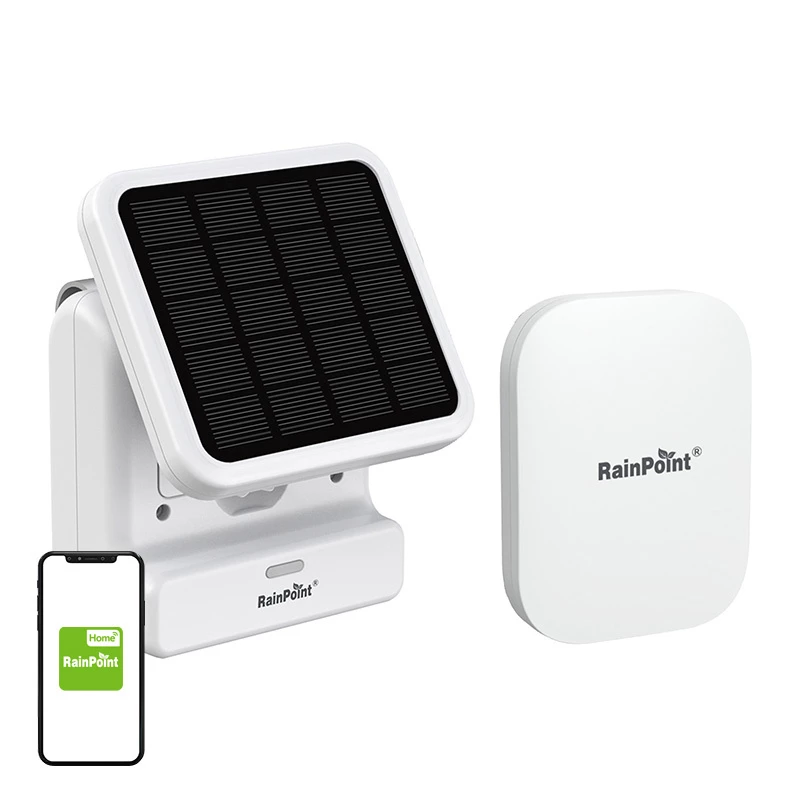

RainPoint smart solar water pump kit HTP115FR with HWG023WBRF gateway and app for garden irrigation

RainPoint smart solar water pump kit HTP115FR with HWG023WBRF gateway provides a solar-powered, rechargeable solution for garden and balcony irrigation. The kit includes a solar panel with adjustable angle and built-in battery, a pump unit, a Wi‑Fi gateway and a full set of micro‑irrigation accessories for feeding up to 10 plants. Control and monitoring are available through the RainPoint Home app, and the kit is designed for quick tool‑free installation using a rotating hook.

Advantages

The system combines solar charging with a 2600 mAh lithium‑ion battery to ensure continuous operation even during low sunlight. Adjustable solar panel angle and USB charging offer flexible power options. Installation requires no drilling or cables thanks to a hanging rotating hook, and the included Wi‑Fi gateway enables remote control via the RainPoint Home app. The kit contains filter and check valve protection to prevent backflow and debris, while the system supports precise watering schedules and real‑time soil moisture monitoring.

Suitable for

• Home gardens and allotments
• Balconies and terraces
• Caravans and off‑grid locations
• Small vegetable beds and potted plant collections

Key specifications

• Manufacturer: RainPoint
• Model: HTP115FR+HWG023WRF
• Power supply: Solar panel with rechargeable battery (USB charging supported)
• Battery: Lithium‑ion, 2600 mAh
• Solar panel output: 5 V, 1.5 W
• Max number of plants: 10
• Max lifting height: 4 m
• Max water flow: 750 ml/min
• Operating pressure: ≥0.3 bar
• Operating temperature: 3°C–50°C
• Wi‑Fi frequency band: 2.4 GHz
• Ingress protection: IP54

How to use

Mount the kit by hanging the rotating metal hook on the edge of a pot, railing or fence; no drilling or tools are required. Connect the pump to the water source, install the supplied tubing, emitters and fittings according to the layout needed, and attach the filter and check valve as shown in the user manual. Charge the unit initially via the solar panel or the supplied USB cable. Install the RainPoint Home app on your smartphone, pair the Wi‑Fi gateway and follow the app steps to add the device, set watering schedules for up to 6 plant groups, and enable soil moisture monitoring if you use the RainPoint sensor.

Recommendations

For reliable operation, position the solar panel to receive maximum daily sunlight and periodically clean the mesh filter. Use the app notifications to refill the water source and check emitter flow; during temperatures near the lower or upper operating limits take appropriate precautions to avoid freezing or overheating of components.
