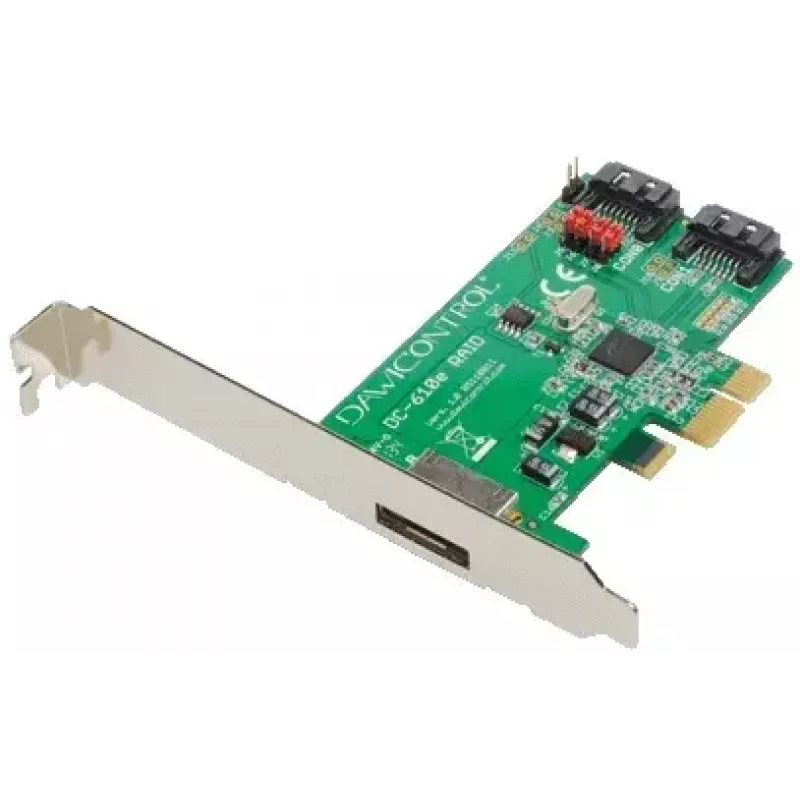

RAID Controller Dawicontrol DC-610E

The RAID Controller Dawicontrol DC-610E is a host bus adapter that supports Serial ATA drives and implements RAID 0, RAID 1 and JBOD configurations. Based on the Marvell 88SE9128 chipset, the controller provides a 5 Gbit/s SATA interface and supports systems with a maximum aggregate storage capacity of up to 2 TB. The card is intended for installation in a compatible PCI Express slot and integrates with supported Windows operating systems for basic hardware RAID functionality.

Advantages

The DC-610E offers a compact solution for adding hardware-level RAID 0 and RAID 1 capabilities to desktop systems without relying solely on software RAID. With a 5 Gbit/s SATA interface and Marvell chipset compatibility, it delivers stable throughput for connected SATA drives. The controller’s support for JBOD enables flexible drive usage when mirroring or striping is not required. Its straightforward feature set makes it suitable for straightforward performance or redundancy needs.

Suitable for

• Expanding SATA connectivity on a desktop PC
• Implementing simple RAID 0 configurations for increased sequential throughput
• Implementing RAID 1 for data redundancy on two-disk setups
• Using JBOD for combining drives without RAID management

Key specifications

• SATA interface speed: 5 Gbit/s (SATA III)
• Supported RAID levels: 0 (striping), 1 (mirroring), JBOD
• Maximum supported aggregate storage: 2 TB
• Controller chipset: Marvell 88SE9128
• Host interface: PCI Express (slot required)
• Compatible operating systems: Windows 2000, Windows Vista Home Premium, Windows 7 Home Premium

How to use

Install the RAID Controller Dawicontrol DC-610E into an available PCI Express slot on a powered-off desktop system following standard anti-static precautions. Connect SATA data and power cables from the controller to the SATA drives. Power on the system and ensure the BIOS/UEFI recognizes the card. Install the appropriate drivers for the supported Windows version if required by the operating system. Use the controller’s configuration utility or the OS-level disk management tools to create a RAID 0, RAID 1 or JBOD array according to your storage and redundancy needs. Verify array status and perform a test read/write to confirm correct operation.

Recommendations

For RAID 1 redundancy, use two drives of the same capacity and similar performance characteristics to ensure consistent mirroring. For RAID 0, use drives with comparable speeds to reduce the risk of throughput imbalance. Keep firmware and drivers for the Marvell chipset updated where available, and maintain regular backups since RAID (especially RAID 0 and JBOD) does not replace backup practices.
