RAID cable FUJITSU TX2550 M7 PY-CBS085 — internal server RAID connector

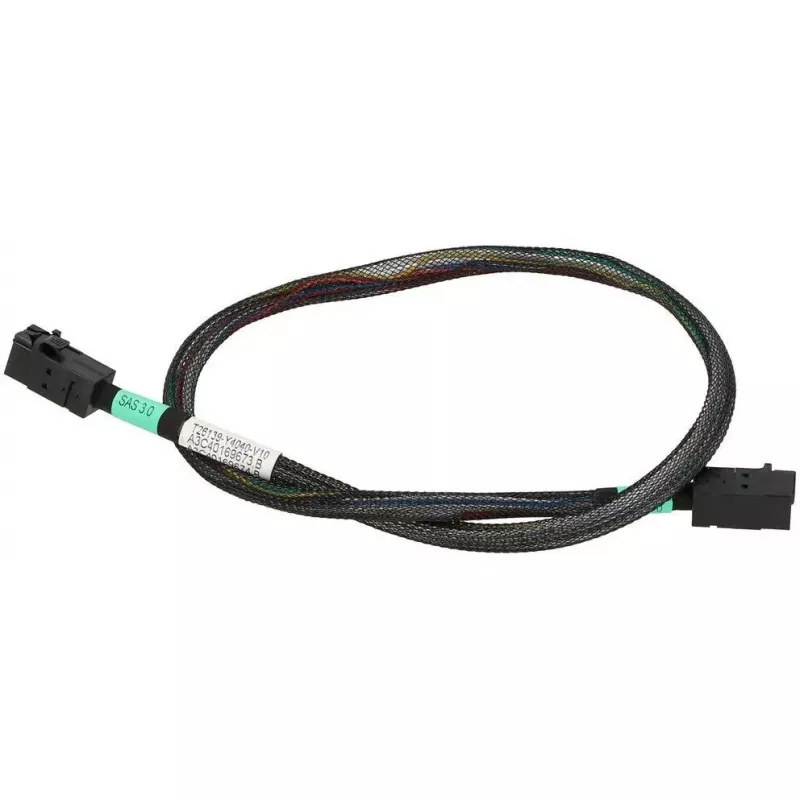

RAID cable FUJITSU TX2550 M7 PY-CBS085 is an internal server RAID connector designed to establish a stable physical link between a RAID controller and the drive backplane or drive modules in Fujitsu TX2550 M7 systems. It is intended as a direct replacement or spare part to restore original cabling and preserve data transfer reliability and system uptime in rack or tower server environments.

Advantages

This internal RAID connector offers secure, low-latency connectivity optimized for Fujitsu TX2550 M7 server architecture. The cable is built to match form factor and pinouts of the original cabling for a straightforward swap, reducing installation time and the risk of connection errors. Its design supports consistent signal integrity to help maintain RAID array performance and minimize data transmission errors during normal operation.

Key specifications

• Type: internal RAID connector cable for server use
• Compatibility: designed for Fujitsu TX2550 M7 server drive backplane and controller interfaces
• Function: connects RAID controller to drive backplane or drive modules to enable array operation
• Construction: shielded/internal cabling with manufacturer-matched pinout and connector housings
• Application environment: datacenter and enterprise server racks or tower servers

How to use

Install the RAID cable by powering down the server according to manufacturer safety procedures and disconnecting power sources. Open the server chassis to access the RAID controller and drive backplane. Align the cable connectors with the controller header and backplane socket, ensuring correct orientation; gently seat the connectors until they click or fit securely. Reassemble the chassis, reconnect power, and verify that the server BIOS/RAID utility detects the drive array. If replacing an existing cable, document any connector positions and label ends to preserve original configuration.

Recommendations

Use the cable only in compatible Fujitsu TX2550 M7 systems and handle connectors with care to avoid bent pins. Maintain ESD precautions during installation. If the server operates in a high-vibration environment, confirm connector seating and cable routing to prevent strain. For persistent connectivity issues, inspect connectors and replace with an identical OEM-specified cable.
