Radiator EK Water Blocks Brass Copper Stainless Steel Black 130mm

The EK Water Blocks 3831109838334 radiator is a compact 130mm radiator built from brass, copper and stainless steel with a black finish and a height of 44mm. It uses sixteen 2mm-wide copper tubes and non-louvered copper fins with 18 FPI to balance thermal transfer and airflow resistance, enabling effective cooling even at low fan speeds. The radiator includes five G1/4" threaded ports (four on the main body and one on the end-tank) to simplify loop planning, draining and air bleeding. Thick extruded aluminum end caps, stamped side plates and a matte black fin coating provide structural rigidity and a premium appearance. The package contains the radiator, screws for 25mm-thick 120mm fans, mounting screws for case attachment, and two hex keys.

Advantages

This EK-Quantum P series Surface radiator offers improved core performance compared to its predecessor, with up to 10% better thermal results due to an optimized fin structure. Low flow restriction across the core minimizes pump load, allowing multiple radiators to be used on a single pump (D5 or DDC). The multiport design with interchangeable modular plugs and adapters provides flexible tube routing, while standardized M4 screws and easy disassembly support DIY modding and maintenance. Compatibility with EK-Matrix7 ensures clean, parallel tubing runs and easy integration with other EK Quantum components.

Suitable for

• Compact custom liquid-cooling loops in PC builds
• Systems that require low-noise operation at low fan speeds
• Multi-radiator loops using a single pump (D5 or DDC)
• Modding projects that need easy disassembly and painting

Key specifications

• Materials: brass, copper, stainless steel, aluminum end caps
• Dimensions: 130 mm (width) × 165 mm (depth) × 44 mm (height)

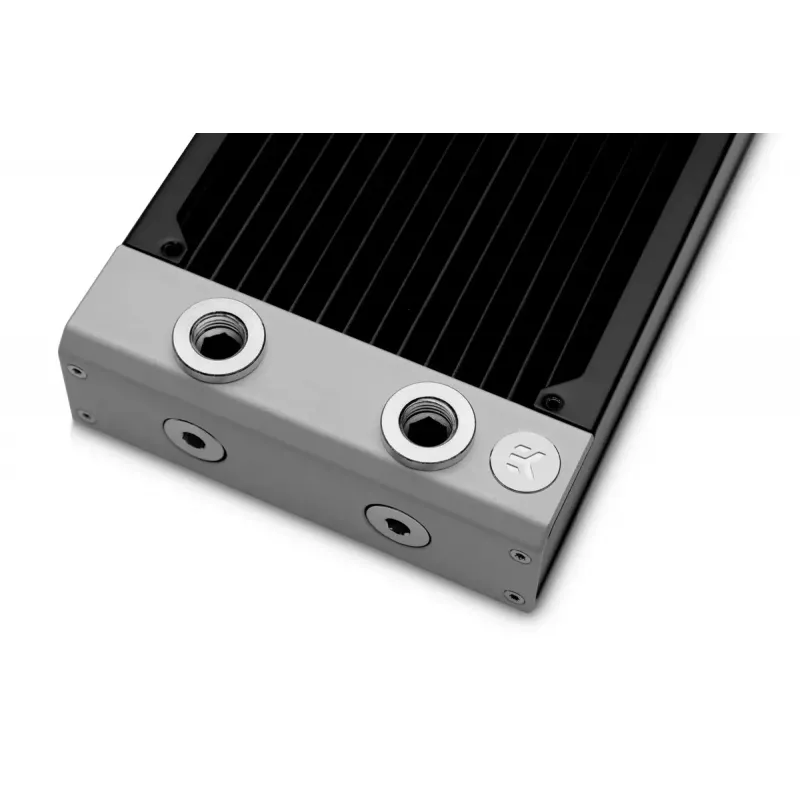

• Ports: five G1/4" threaded ports (four on body, one on end-tank)
• Tube configuration: 16 copper tubes, 2 mm wide

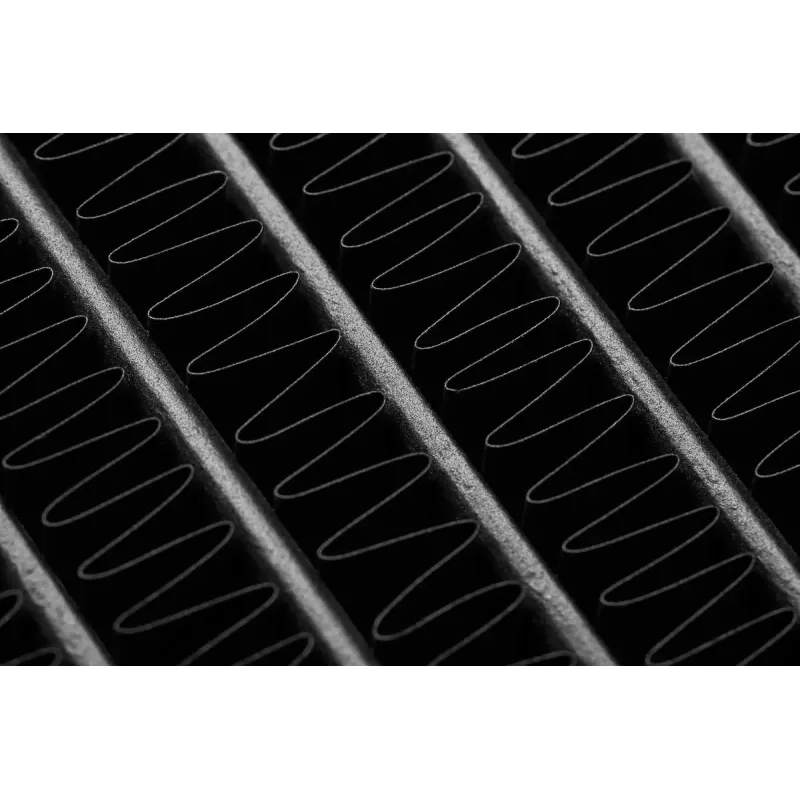

• Fin density: 18 FPI, non-louvered copper fins with matte black coating
• Fan compatibility: 120 mm fans, 25 mm thickness (screws included)
• Included accessories: 4× M4×30 mm screws (fan mounting), 4× M4×5 mm screws (case mount), 6 mm and 9 mm hex keys

How to use

Mount the radiator using the supplied M4 screws: use the M4×30 mm screws to attach standard 120 mm, 25 mm-thick fans in push or pull configuration, and use the M4×5 mm screws to secure the radiator to the case. Plan tubing routes using the four main G1/4" ports and the additional end-tank port for draining and air bleeding. For higher cooling performance, consider a push/pull fan configuration. When installing longer screws, be cautious not to overtighten; the core is designed to prevent structural damage if longer screws contact the fins.

Recommendations

Use sealed-edge frame fans (such as EK fans or similar) and keep fan speeds low where possible to benefit from the radiator's low airflow resistance. When assembling multi-radiator loops, prefer a single adequate pump (D5 or DDC) thanks to the radiator's low flow restriction. Use the extra G1/4" port on the end-tank for draining and air removal during maintenance.
