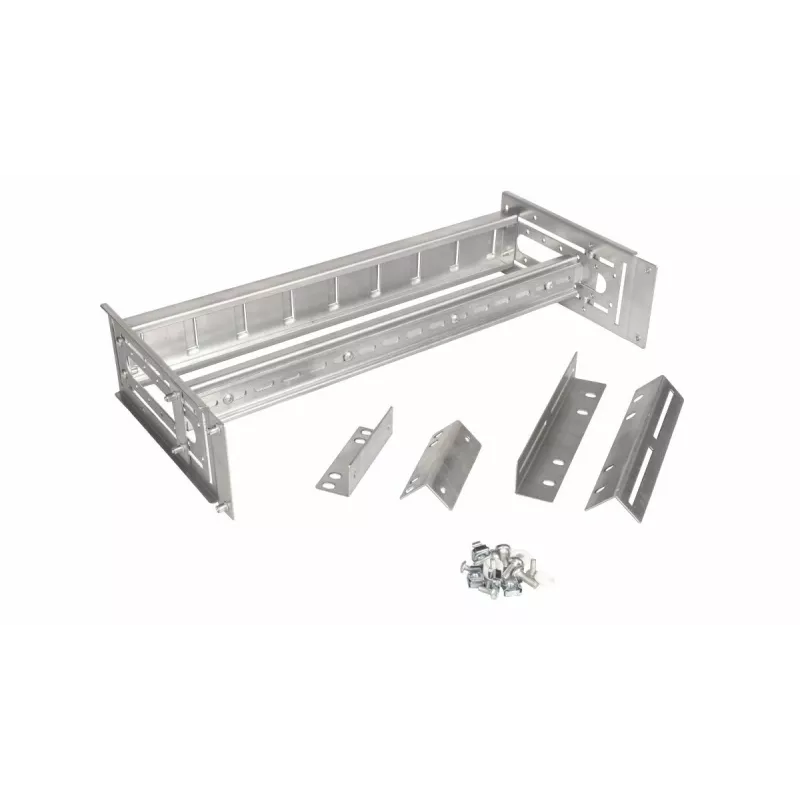

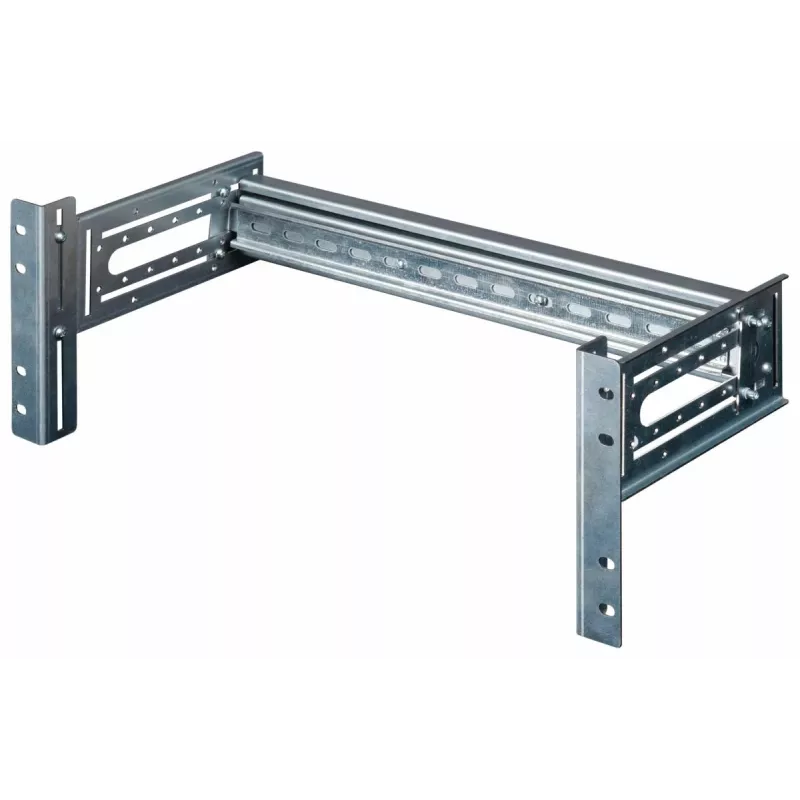

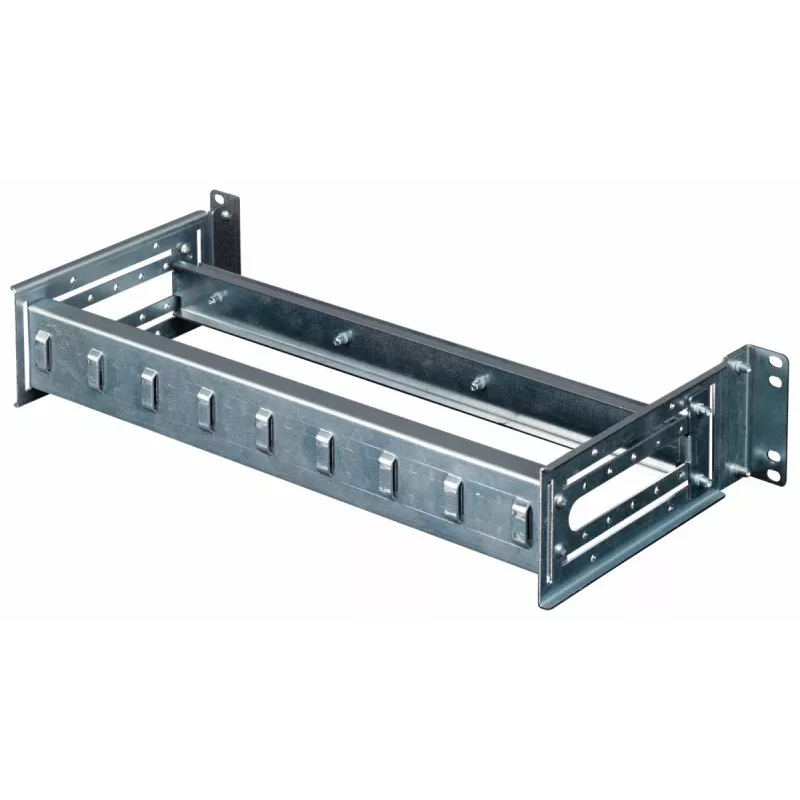

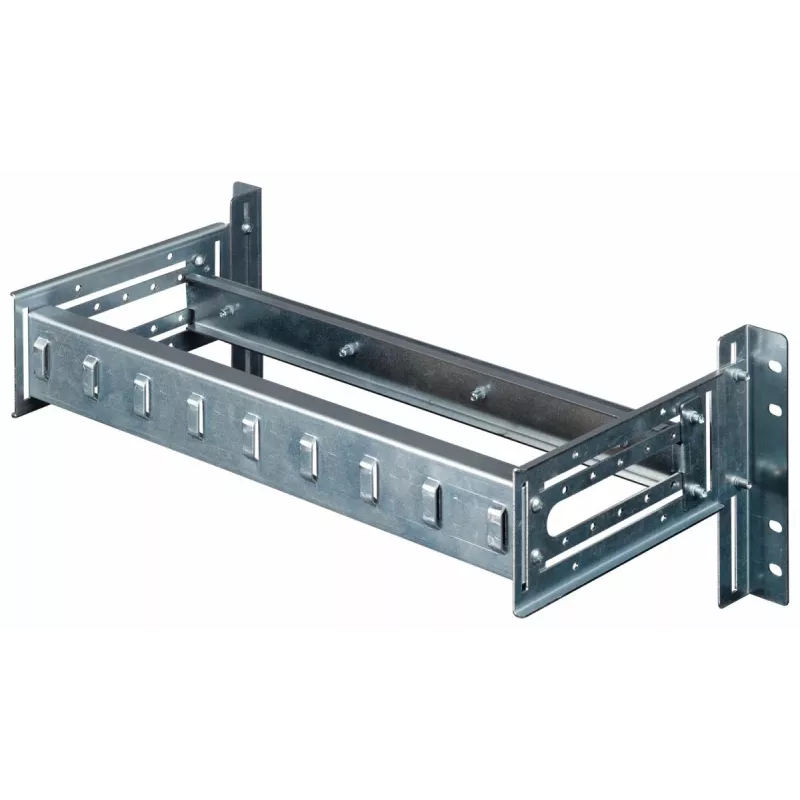

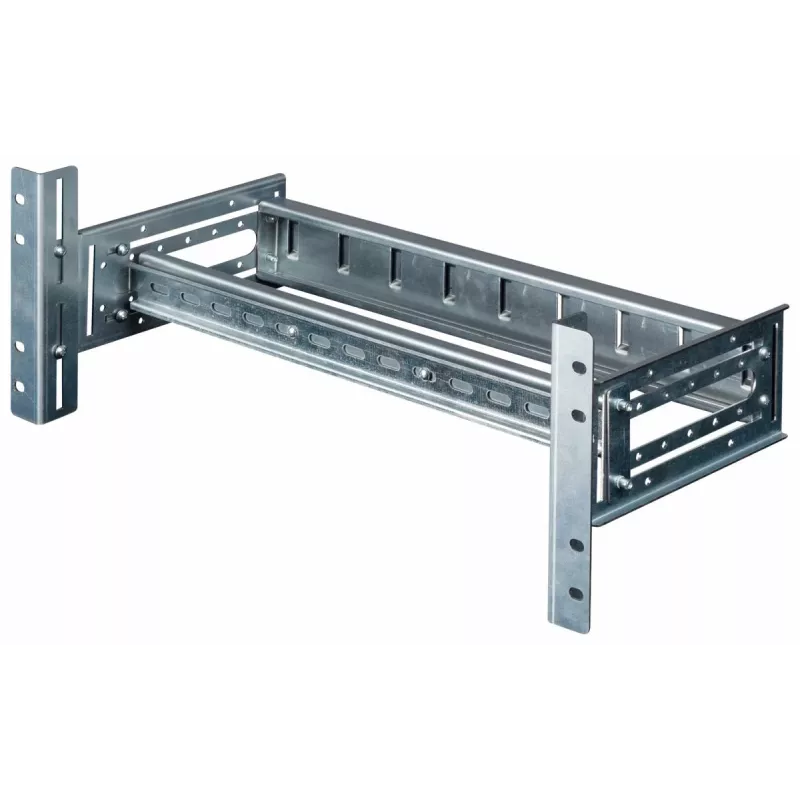

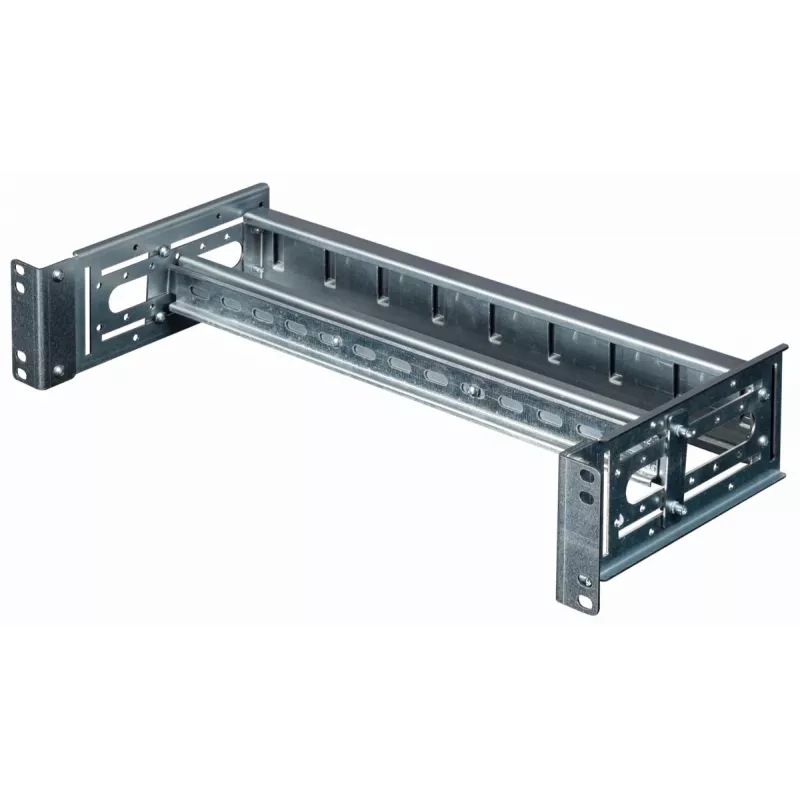

Rack rail 19 inch EQUIP EZR-DIN-4, 4U DIN, RAL7035 grey, 485×210 mm

Equip 19" rack rail EZR-DIN-4 is a 4U DIN-compatible mounting rail finished in RAL7035 grey for installation inside 19-inch cabinets and enclosures. The rail corresponds to a nominal 19" width (48.3 cm) with an actual outer width of 485 mm and a depth of 210 mm, providing standardized support for DIN-rail modules, terminal blocks and similar equipment. The product is supplied individually and is suited for use in server rooms, telecom racks and industrial control cabinets. Packaged dimensions are 520×83×55 mm and the product is identified by model number EZR-DIN-4 (EAN 4015867233436).

Advantages

The EZR-DIN-4 rail offers a compact 4U footprint and DIN compatibility that enables orderly mounting of modular components within a 19" rack. Its RAL7035 grey finish provides a neutral appearance that matches common cabinet interiors. The specified actual width of 485 mm and depth of 210 mm ensure predictable clearances for mounted equipment and cabling. Individual supply and pallet handling information (160 pcs per pallet) simplify inventory planning and logistics.

Suitable for

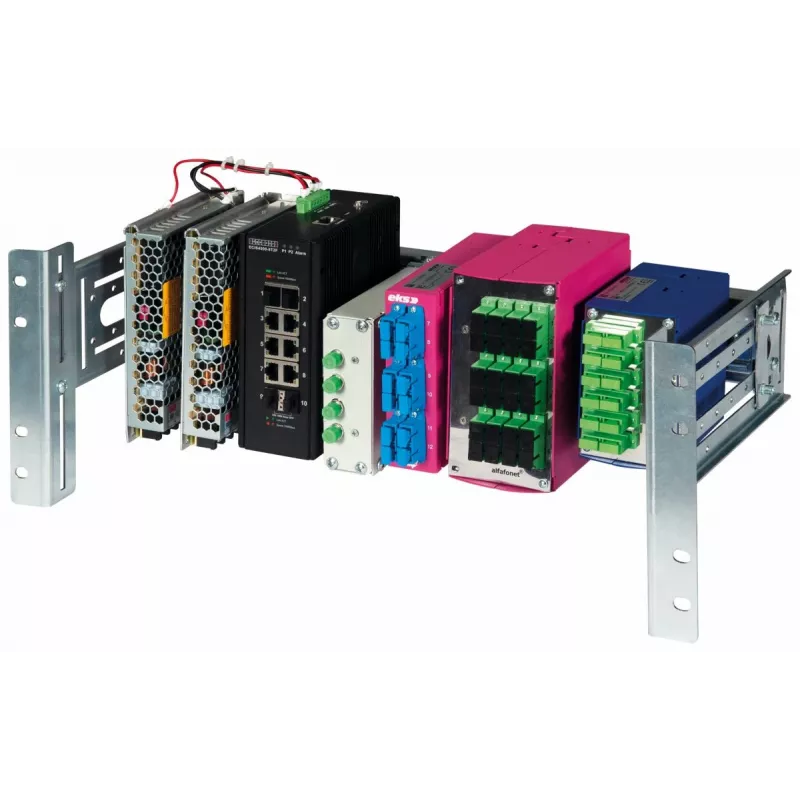

• Mounting DIN-rail modules and terminal blocks inside 19" cabinets
• Organizing power distribution and control components in industrial enclosures
• Telecom and network racks requiring DIN-compatible subassemblies
• Server rooms and technical rooms where space-efficient 4U mounting is needed

Key specifications

• Brand: EQUIP
• Model: EZR-DIN-4
• MPN: EZR-DIN-4
• EAN: 4015867233436
• Rack size: 19" nominal (48.3 cm)
• Actual width: 485 mm
• Depth: 210 mm
• Height: 4U
• Finish: RAL7035 grey
• Packed dimensions: 520×83×55 mm
• Supply: single unit; pallet quantity: 160 pcs

How to use

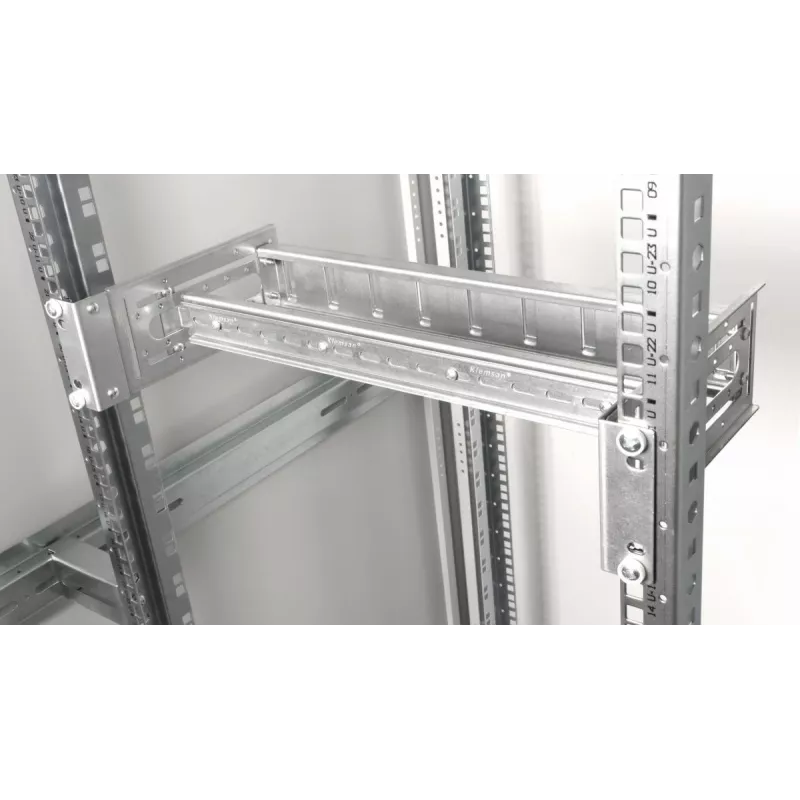

Install the EZR-DIN-4 rail inside a compatible 19" cabinet using standard rack mounting points or the cabinet manufacturer's recommended fasteners. Position the rail at the desired U-height to provide 4U of DIN-rail mounting space. Securely attach DIN modules, terminal blocks or other compatible components to the DIN rail sections and route connecting cables with appropriate cable management accessories. Verify that the 485 mm width and 210 mm depth fit the cabinet interior and do not obstruct adjacent equipment.

Recommendations

Use appropriately rated fastening hardware and ensure that the total mounted load does not exceed the cabinet or rail support limits. When installing in environments with specific regulatory or safety requirements, follow site rules and equipment manufacturer instructions. For efficient layout, plan module placement and cable routing before installation to make full use of the 4U DIN space.
