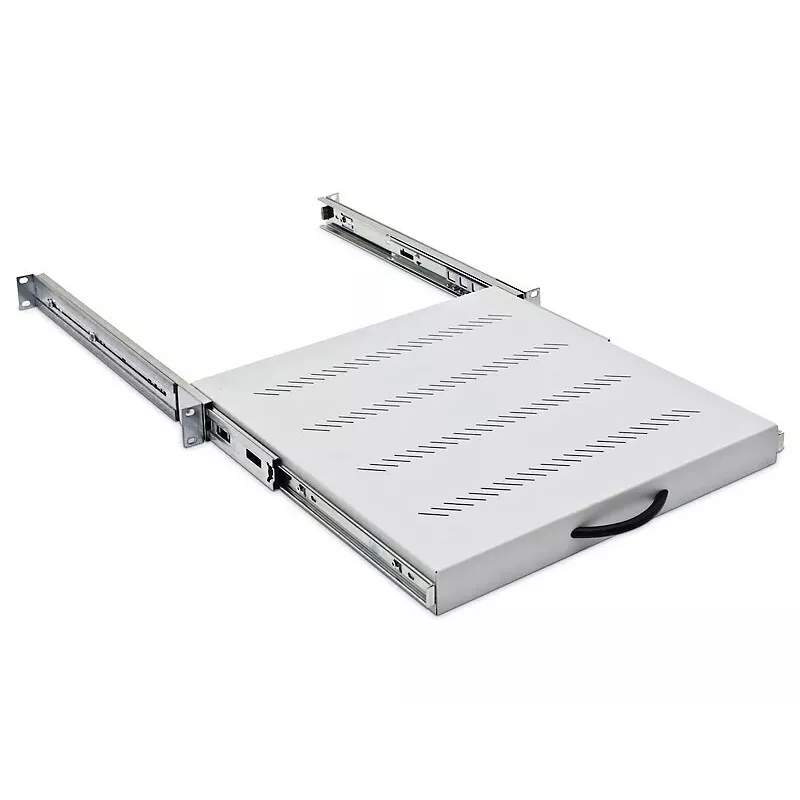

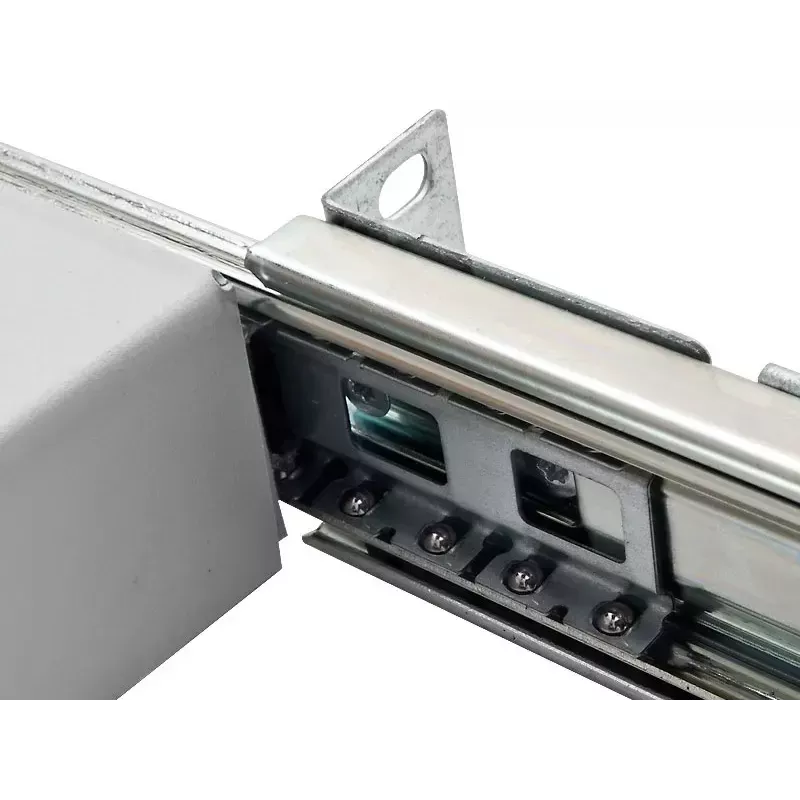

Rack accessory Triton RAC-UP-X20-A1

The Triton RAC-UP-X20-A1 is a grey rack accessory engineered for 1U installations, providing a compact and stable shelf solution for equipment in server cabinets and network racks. With a width matching standard 19-inch racks and a depth of 550 mm, this 45 mm high unit supports a maximum load of 45 kg. Its dimensions and build are intended to help organize devices and small components while maintaining accessibility and airflow inside the rack.

Advantages

The accessory offers a robust carrying capacity of up to 45 kg in a slim 1U form factor, enabling you to place heavier small devices or equipment modules within the rack without consuming additional vertical space. Its grey finish and standard 48.3 cm width make it compatible with typical server rack environments, while the 550 mm depth accommodates a range of devices and cabling needs. The low-profile design promotes orderly installation and reduces obstruction to airflow across adjacent rack units.

Suitable for

• Mounting small servers, storage devices, or network appliances that fit within 1U space
• Storing power supplies, patch panels, or cable management accessories
• Temporary placement of tools or test equipment during maintenance
• Organizing peripheral devices in telecommunications and data center racks

Key specifications

• Form factor: 1U rack accessory
• Color: grey
• Maximum load capacity: 45 kg
• Width: 48.3 cm (standard 19" rack compatible)
• Depth: 550 mm
• Height: 45 mm

How to use

Install the Triton RAC-UP-X20-A1 into a compatible 19-inch rack by aligning the mounting points with the rack posts at the chosen 1U position and securing it using appropriate rack screws or fasteners. Place equipment centrally on the shelf to maintain balanced load distribution and ensure that mounted devices do not exceed the specified 45 kg limit. Leave adequate clearance at the front and rear for connectors and airflow. If used for heavy or vibration-sensitive equipment, verify that all fasteners are tightened and consider additional support or restraint as needed.

Lietošanas ieteikumi

Mount the shelf on a stable, properly grounded rack and periodically inspect mounting hardware and load condition. Avoid exceeding the maximum load to prevent deformation or instability. For best airflow and service access, keep cabling organized and avoid stacking heat-generating devices directly above or below restrictive panels.
