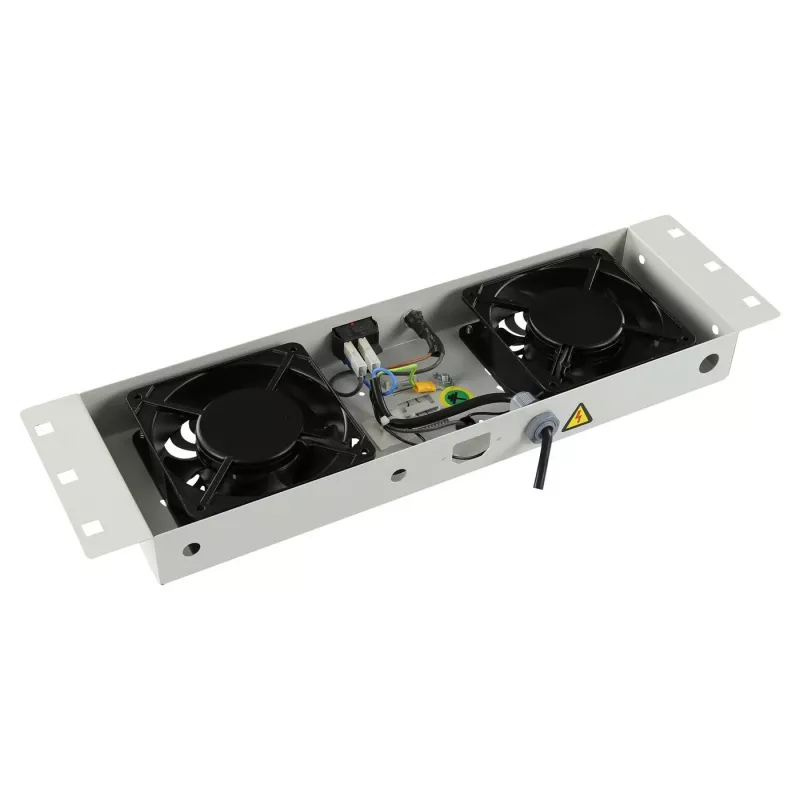

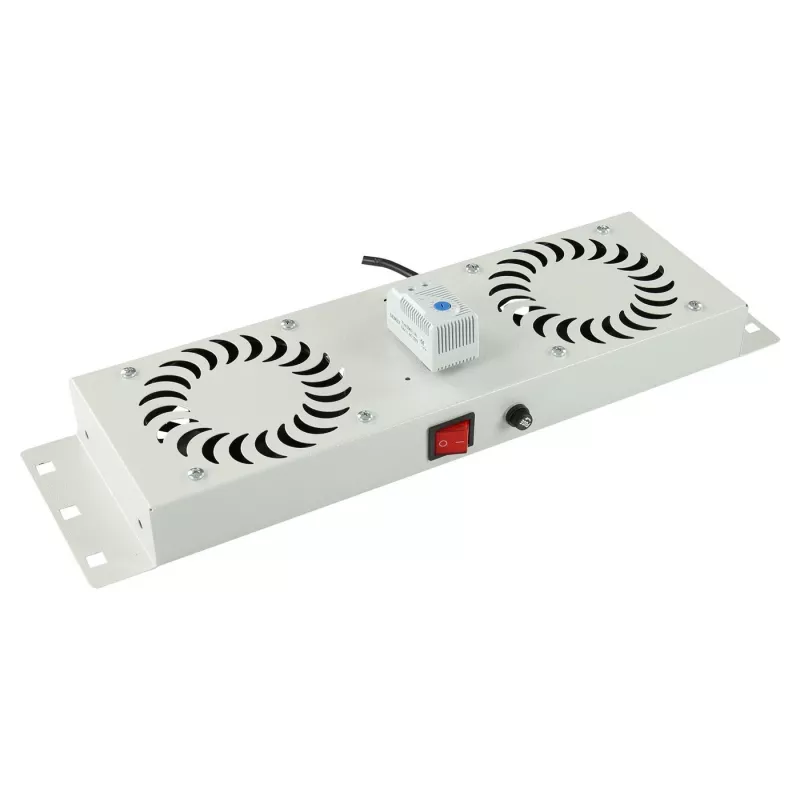

Rack accessory Lanview RAF115WH-UK 1U 2 fans White

The Lanview RAF115WH-UK is a 1U roof-mounted rack accessory with two fans and an analog thermostat. Designed to fit standard 19-inch racks, the white unit (RAL7035) provides targeted airflow of 280 m³/h to help maintain stable temperatures inside server or network cabinets. The compact dimensions (487 mm width, 133 mm depth, 45 mm height) and a lightweight construction (package weight 1.81 kg) make it suitable for a variety of rack installations.

Advantages

This 2-fan module offers reliable ventilation with a built-in analog thermostat for automatic fan activation. Its roof-mounted, universal design allows installation in most standard racks, while the 280 m³/h airflow capacity supports effective heat removal. The white finish provides a neutral appearance that integrates with common rack environments.

Suitable for

• Cooling small to medium server cabinets and network racks
• Maintaining airflow for patch panels, switches, and routers
• Environments where a compact 1U roof-mounted fan unit is required

Key specifications

• Model: RAF115WH-UK
• Form factor: 1U roof-mounted fan module
• Fans: 2
• Thermostat: Analog
• Airflow: 280 m³/hour
• Dimensions (W×D×H): 487 × 133 × 45 mm
• Color: White (RAL7035)
• Package weight: 1.81 kg

How to use

Install the RAF115WH-UK in the roof position of a standard 19-inch cabinet in the 1U space. Connect the unit to the rack’s power source following the manufacturer’s wiring instructions. Set the analog thermostat to the desired activation temperature so the fans run automatically when enclosure temperature exceeds the threshold. Verify airflow direction and secure the unit to prevent vibration.

Recommendations

Position the unit at the top of the cabinet for optimal heat exhaust, periodically check the thermostat setting and fan operation, and clean fan intakes to maintain airflow efficiency.
