Rack accessory Lanview RAX141 Steel 1U IP20 482x35x44mm

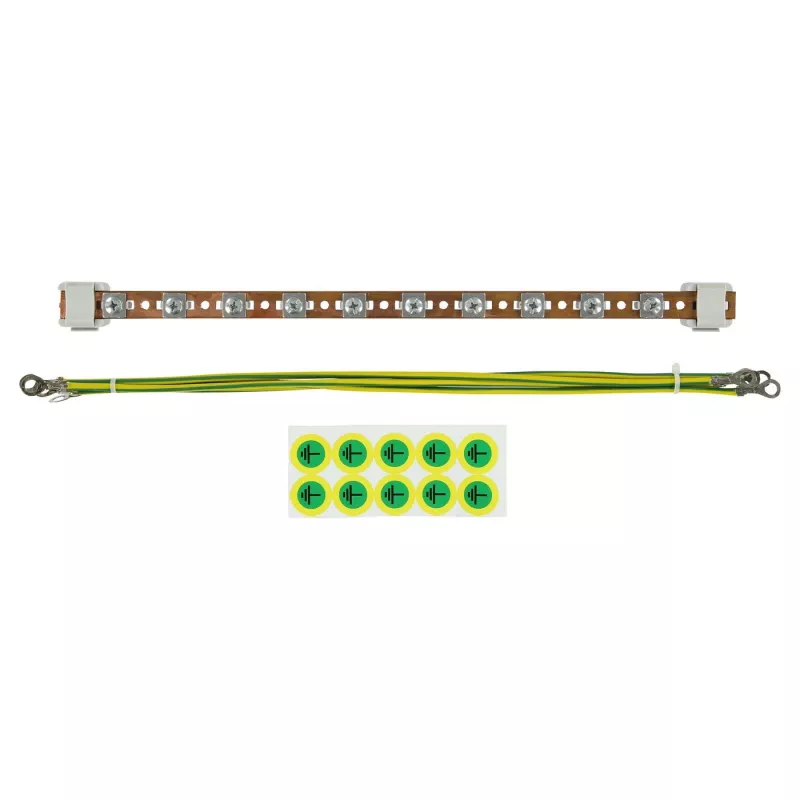

The Lanview RAX141 is a steel 1U rack accessory designed for 19" cabinets. It provides 10 earthing points and includes a 400 mm copper busbar mounted on a 1U metal installation base. The unit measures 482 x 35 x 44 mm and has an IP20 rating suitable for standard indoor rack environments.

Advantages

The grounding set offers a compact, standardized 1U form factor compatible with 19" racks and cabinets. A 400 mm copper busbar ensures reliable conductivity while the included four yellow-green grounding leads simplify connection to equipment and cabinet earth. The steel construction provides mechanical strength and the IP20 rating indicates protection for general rack installations.

Suitable for

• Grounding and earthing of 19" server, network and telecom cabinets
• Rack installations requiring multiple earth points in a 1U space
• Data centres, server rooms and network closets with indoor environments

Key specifications

• Product type: 1U rack earthing/grounding set
• Dimensions (W x D x H): 482 x 35 x 44 mm
• Mounting: 19" rack, 1U metal installation base
• Earthing points: 10
• Copper busbar length: 400 mm
• Grounding wires: 4 x yellow-green, 400 mm length, 4 mm diameter
• Material: steel (frame) and copper (busbar)
• Protection rating: IP20
• Manufacturer: Lanview, MPN: RAX141, EAN: 5420016847362

How to use

Install the RAX141 into a free 1U position of a 19" cabinet using standard rack mounting screws. Connect the copper busbar to the cabinet earth point if available, then attach equipment grounding wires to the busbar and tighten connections to ensure firm contact. Use the provided yellow-green leads to connect equipment chassis to the busbar where required. Verify continuity to building earth with appropriate testing tools after installation.

Recommendations

For reliable earthing, ensure all connections are clean, mechanically secure and comply with local electrical codes. Use appropriate torque on terminal connections and verify continuity with a multimeter or loop tester. The product is intended for indoor rack environments with IP20 protection; avoid exposure to moisture or corrosive conditions.
