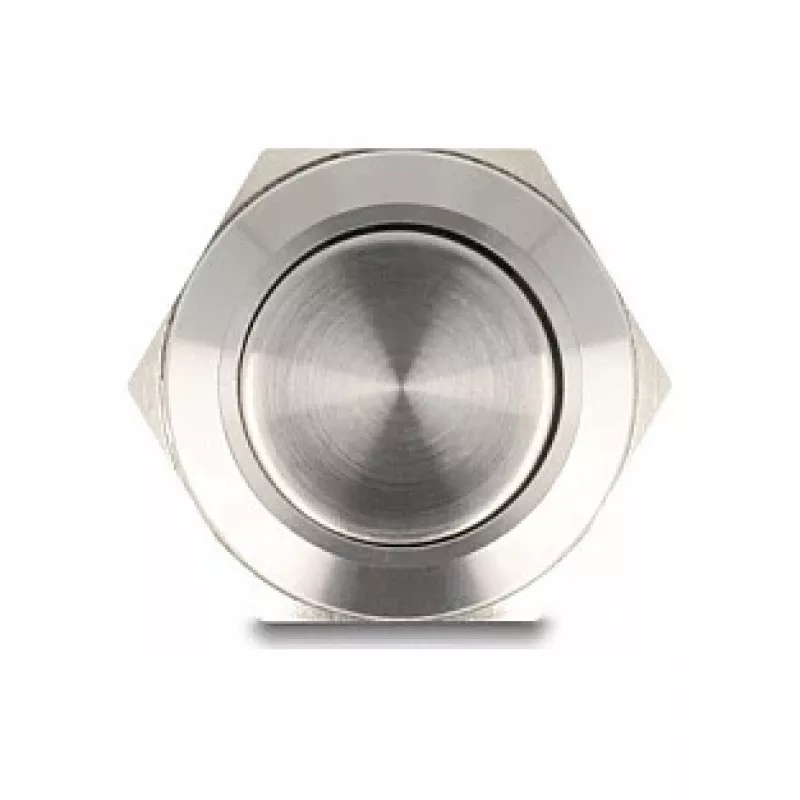

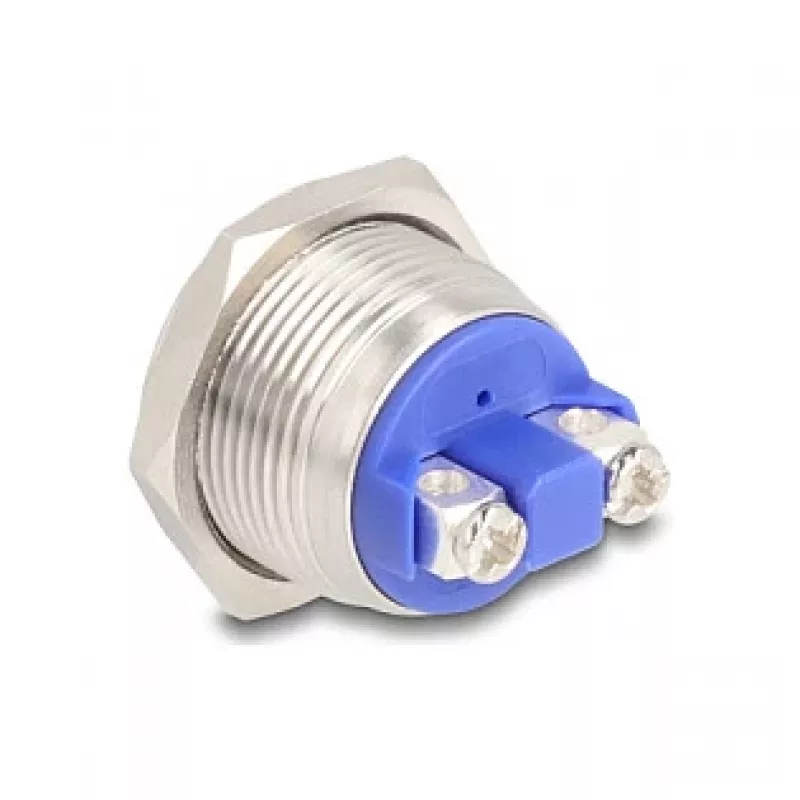

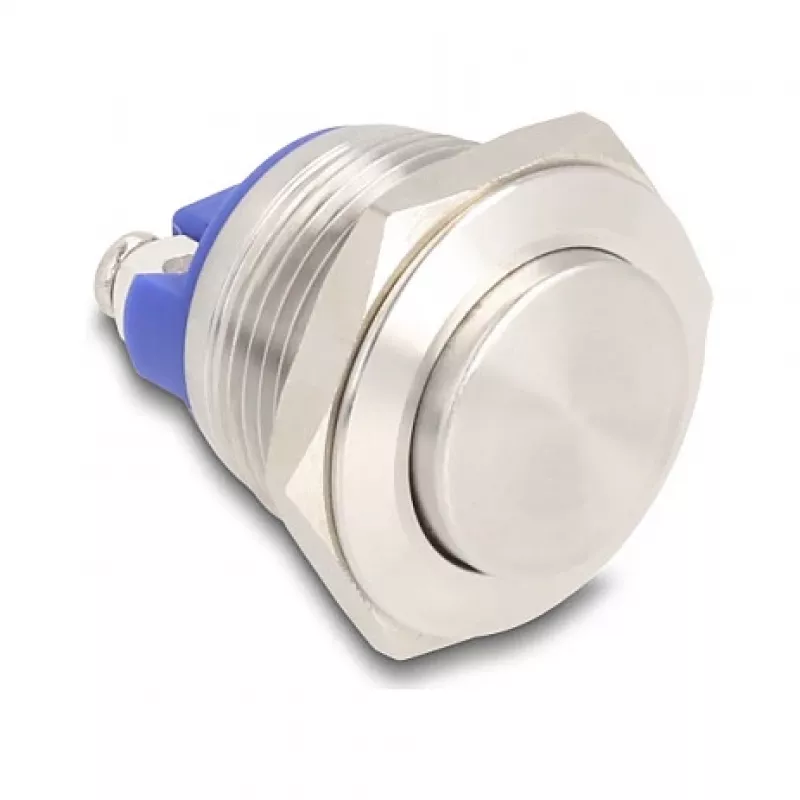

Push Button DELOCK 22042 19 mm, 2 screw terminals, panel-mount

DELOCK Push Button 19 mm is a panel-mount control switch designed for basic on/off operation in electronic and electrical systems. The compact 19 mm body fits standard panel cutouts and provides two screw terminal connections for secure wiring. Intended for use in control panels, equipment front panels and simple user interfaces, this push button offers a reliable mechanical switching action and straightforward installation.

Advantages

The device features a compact footprint for tight panel layouts and two screw terminals that allow firm, low-resistance connections without specialized connectors. Its panel-mount format ensures a secure mechanical fit and simple replacement or maintenance. The straightforward construction reduces the number of potential failure points and simplifies wiring during assembly or servicing.

Suitable for

• Basic on/off control in control cabinets and electrical panels
• Front panel user interfaces for machinery and equipment
• Prototype and test rigs needing manual switching
• Small appliances or devices requiring a durable mechanical switch

Key specifications

• Mounting type: panel-mount for 19 mm cutout
• Actuation: push button (mechanical)
• Terminal type: two screw terminals for wire fastening
• Body size: 19 mm panel diameter
• Connection: fixed screw-clamp connections suitable for stranded or solid wire
• Typical use: manual on/off switching

How to use

Prepare a 19 mm diameter cutout in the panel according to the device outline and insert the switch body until it seats firmly. Secure the switch according to its panel-retention mechanism and connect the supply and load conductors to the two screw terminals, tightening the screws to a secure torque to avoid loose connections. Verify correct wiring and mechanical function before applying operational voltage. For safety, perform installation with power removed and follow applicable electrical standards.

Recommendations

Use appropriately sized wire for the expected current and ensure terminal screws are tightened to prevent arcing. Avoid exposure to excessive moisture or corrosive environments; if installed in such conditions, provide additional sealing or protective enclosures. Regularly inspect connections and the switch mechanism as part of routine maintenance.
