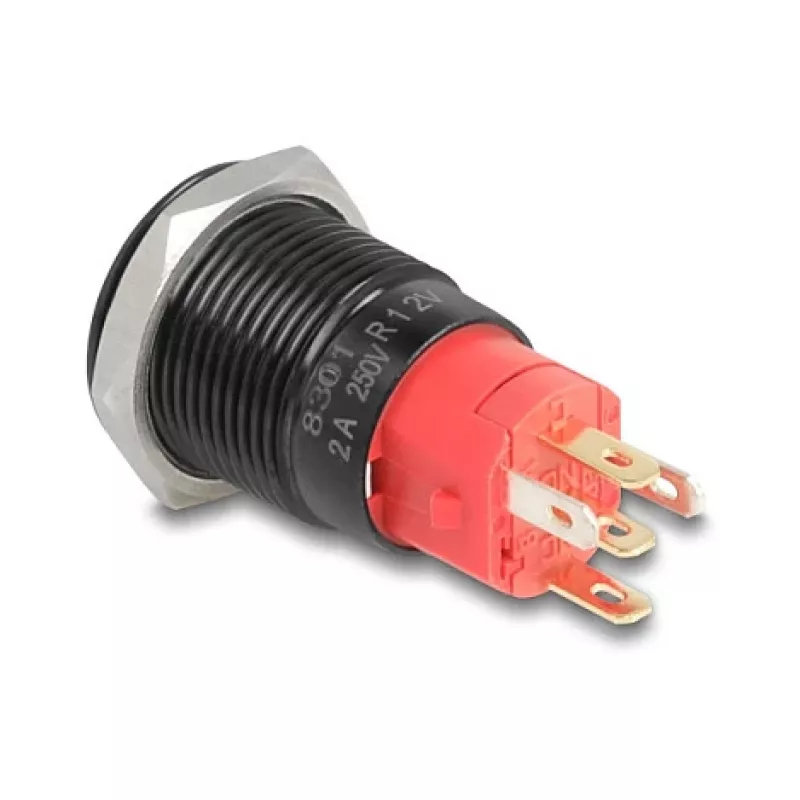

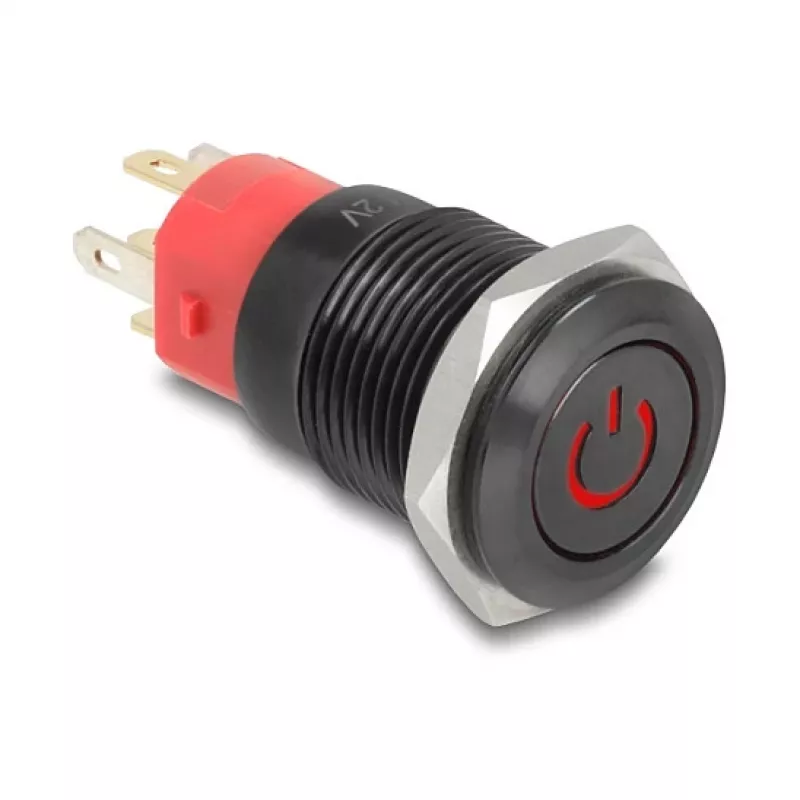

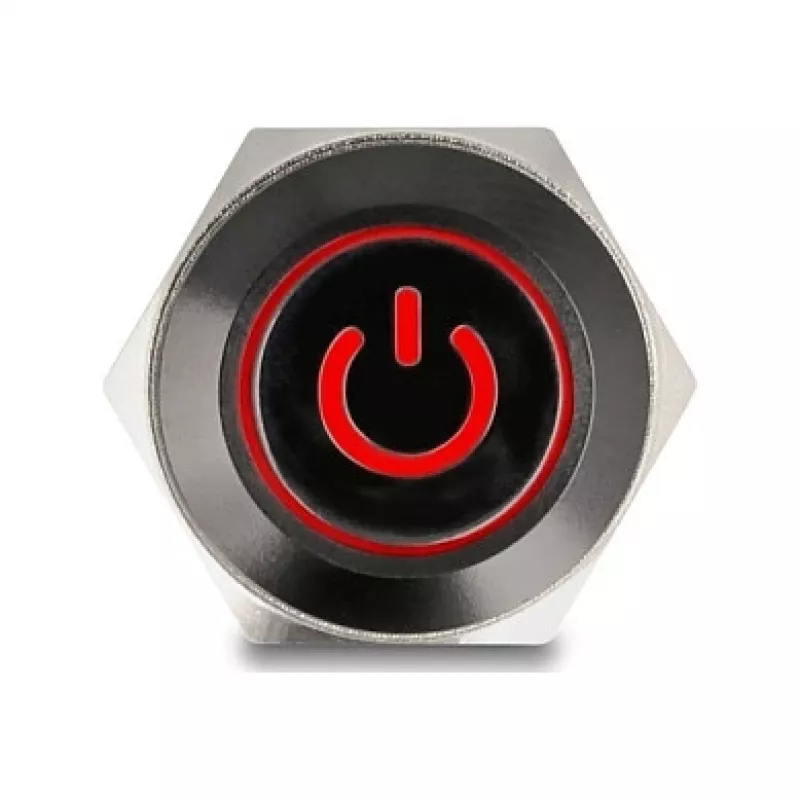

Push Button Switch DELOCK 22013 16 mm 12 V Black

DELOCK 22013 is a 16 mm panel-mounted push button switch designed for 12 V systems. The element has a compact round bezel in black and is intended for on/off control of low-voltage circuits. Its simple construction and standard panel cutout size make it suitable for electronics projects, automotive accessories and small control panels that require a straightforward manual control input.

Advantages

The push button switch offers a compact 16 mm diameter bezel that saves panel space while providing a clear tactile on/off actuation. Constructed for low-voltage 12 V applications, it ensures easy integration into existing wiring and control layouts. The black finish provides a neutral appearance that fits varied installations and hides dirt and wear. Its panel-mount design secures the switch reliably in place and allows straightforward replacement or retrofitting.

Suitable for

• Small electronics projects and hobbyist control panels
• Automotive and marine 12 V accessory control (lighting, fans, pumps)
• DIY instrument panels and equipment front panels
• Replacement of similar-sized panel switches in appliances and devices

Key specifications

• Panel cutout diameter: 16 mm round bezel
• Rated voltage: 12 V DC suitable for low-voltage systems
• Function: push button on/off actuation
• Finish: black bezel for neutral appearance
• Mounting type: panel-mounted with securing nut

How to use

Install the switch into a 16 mm panel cutout, secure it with the supplied nut and connect the electrical terminals to the 12 V supply and load according to the intended on/off circuit. Ensure power is disconnected during installation. After mounting, verify wiring polarity and tightened connections. Operate the switch by pressing the button for switching the circuit on or off; check that the switch rating matches the load requirements to prevent overheating or contact damage.

Recommendations

For reliable operation, use this push button in circuits within the 12 V DC range and within the current capability of the switch contacts. Avoid use in high-voltage or high-current applications without appropriate relays or contactors. Protect the switch from prolonged exposure to direct water ingress and heavy mechanical impact to prolong service life.
