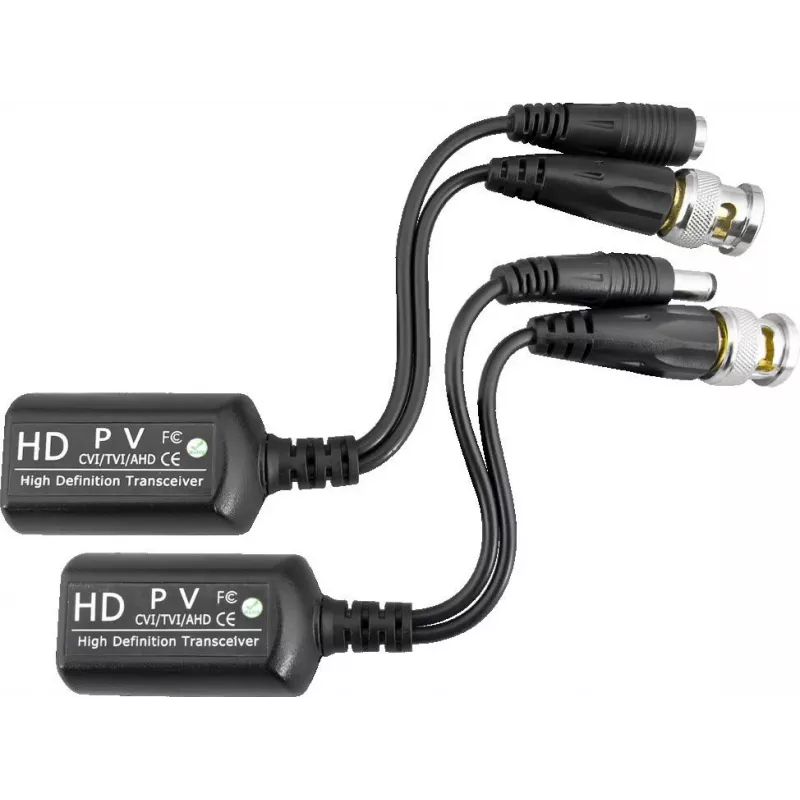

PULSAR P-TRPV1 Passive Video Transmitter Set (2 pcs) - 4K 8MP, UTP Cat5e/6, BNC, 400m

The PULSAR P-TRPV1 is a professional passive video transmitter set designed for transmitting analog and HD video signals over long distances via UTP Cat5e/6 cable. This set includes two units (transmitter and receiver) and requires no external power supply, making it ideal for quick and cost-effective installations in CCTV and surveillance systems.

Advantages

Passive design eliminates the need for power at the transmission point, reducing installation complexity and cost. Supports resolutions up to 8MP (4K) and distances up to 600m for CVBS signals. Built-in surge and ESD protection ensure reliable operation in demanding environments.

Suitable for

• Security camera installations using AHD, HD-CVI, HD-TVI, or analog cameras
• Extending video transmission distances over existing UTP cabling
• Applications requiring passive, low-maintenance video transmission

Key specifications

• Video Signal Compatibility: AHD, HD-CVI, HD-TVI, CVBS (Analog)
• Max Resolution: Up to 8MP (4K)
• Transmission Type: Passive (no power required)
• Transmission Medium: UTP Cat5e/6
• Video Connector: BNC Male
• UTP Connector: RJ45 Female
• Max Distance (720p/1080p): 400m
• Max Distance (4MP/5MP): 250m
• Max Distance (8MP/4K): 200m
• Max Distance (CVBS): 600m
• Surge Protection: 2kV
• ESD Protection: 15kV
• Impedance (BNC): 75 Ohm
• Impedance (UTP): 100 Ohm
• Bandwidth: 0-70 MHz
• Attenuation: 0.5 dB (typical)
• Operating Temperature: -10°C to 50°C
• Housing Material: ABS Plastic
• Number of Units in Set: 2

Recommendations

For optimal performance, use high-quality Cat5e or Cat6 UTP cable and ensure proper termination. This set is ideal for upgrading existing analog systems to HD without replacing cabling.
