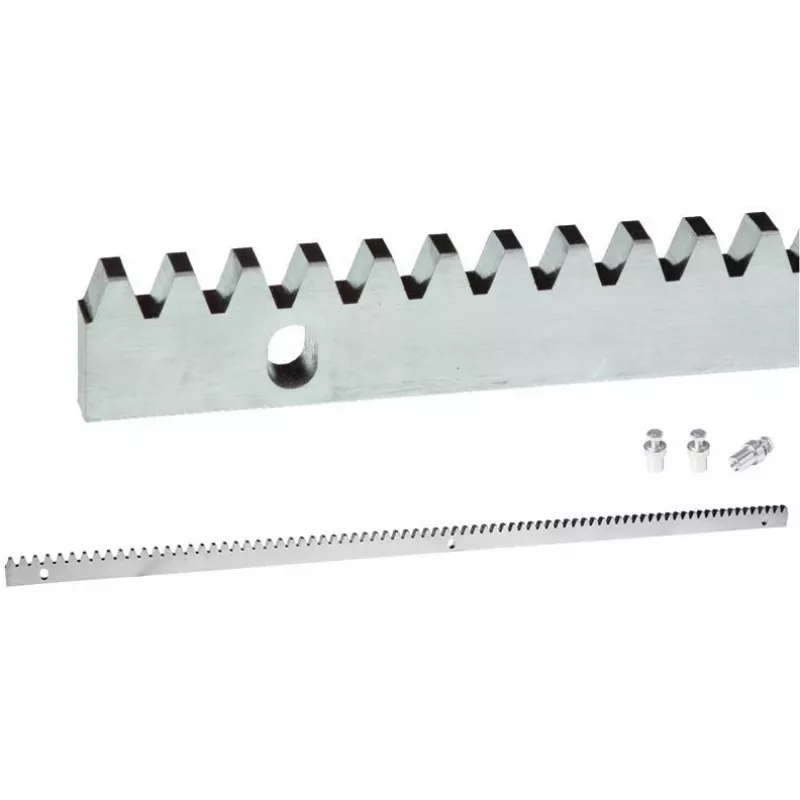

PSG Premium Gear Rack 60.051 for Sliding Gates - 8 mm Base Plate, M4 Module, 1 Meter, Galvanized Steel

The PSG Premium Gear Rack 60.051 is a high-quality, galvanized steel rack designed specifically for sliding gate systems. With a module M4 and a length of 1000 mm, this rack ensures smooth and reliable operation for residential and light industrial gates. The 8 mm base plate width and weld-on studs provide secure mounting, while the zinc-plated finish offers excellent corrosion resistance for outdoor use.

Advantages

This gear rack is built to last, featuring high-strength steel construction and a protective zinc coating that withstands all-weather conditions. The precision-cut M4 teeth ensure compatibility with standard gate motors, delivering quiet and efficient performance. Easy to install with welding, the rack includes three M8 mounting studs per section for a firm attachment.

Suitable for

• Residential sliding gates
• Light industrial sliding gates
• Gate automation systems using M4 pinion motors

Key specifications

• Material: Galvanized Steel (Zinc Plated)
• Gear Module: M4 (Module 4)
• Length: 1000 mm (1 meter)
• Base Plate Width: 8 mm
• Total Height: 30.5 mm
• Mounting Studs: 3 x M8 per section
• Stud Spacing: Approx. 333 mm
• Colour: Metallic Silver
• Application: Sliding Gates
• Mounting Type: Weld-on Studs

Recommendations

For optimal performance, ensure the gate motor pinion matches M4 module. Weld the studs securely to the gate frame. Suitable for outdoor use in all weather conditions.
