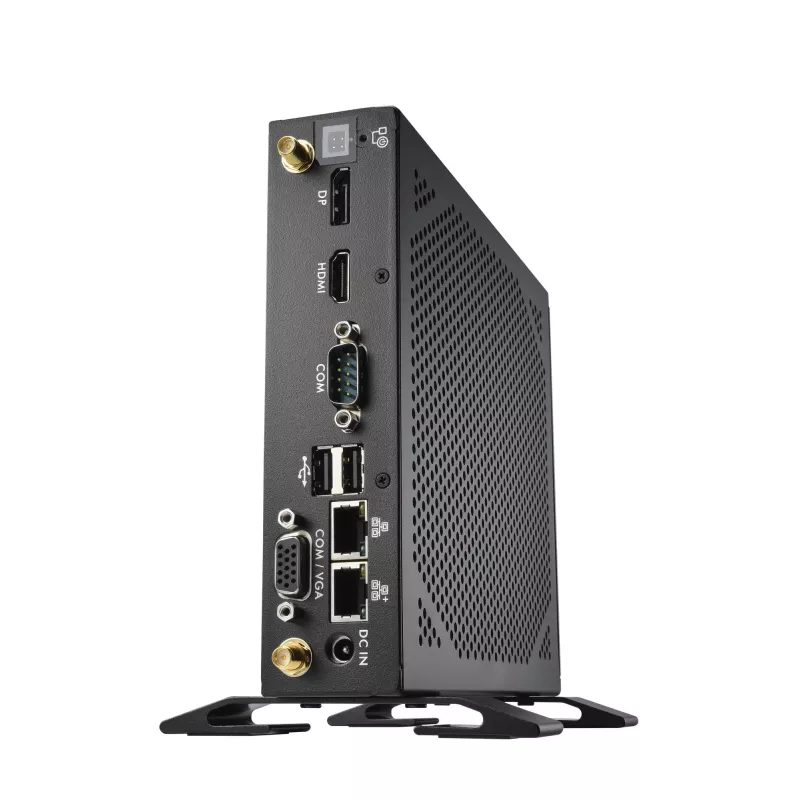

Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation

Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
R5,715
Fanless Slim PC with integrated ULV processor in industrial designThe DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 ... Read More
Stock 2 Code 2458333 Brand SHUTTLE Model DS50U Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

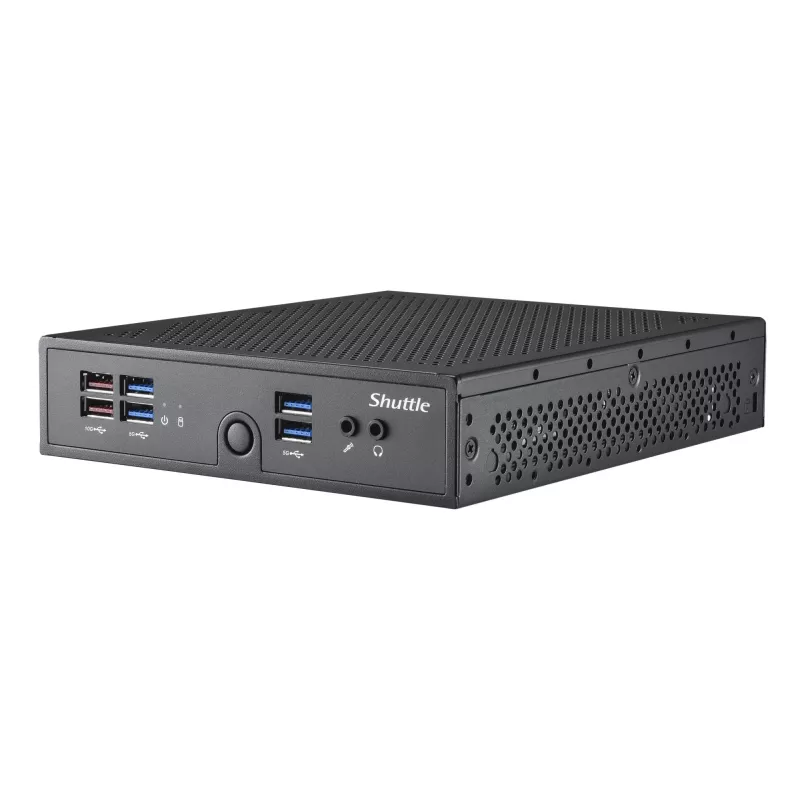

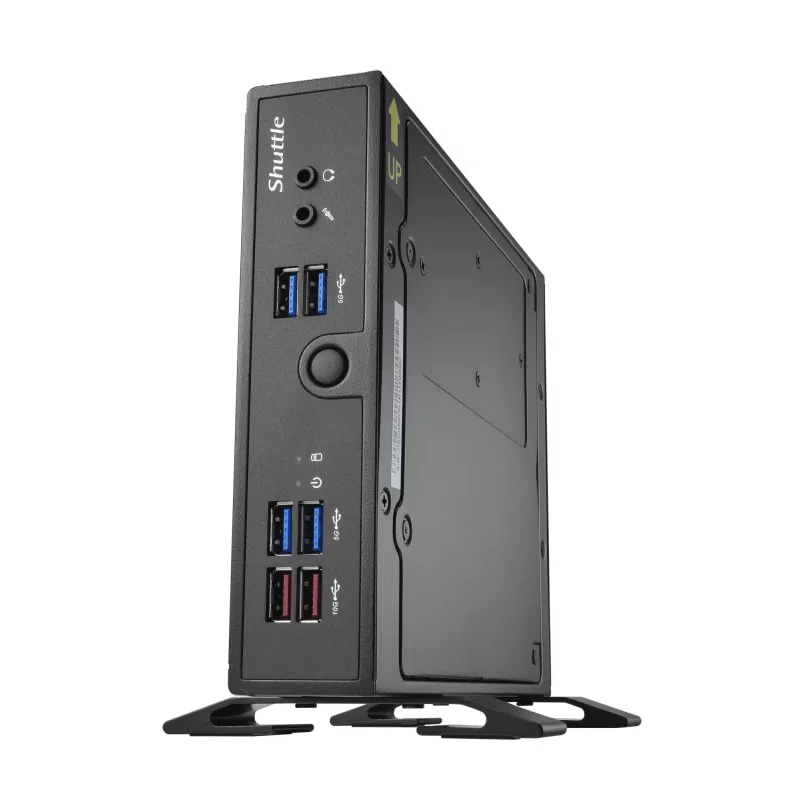

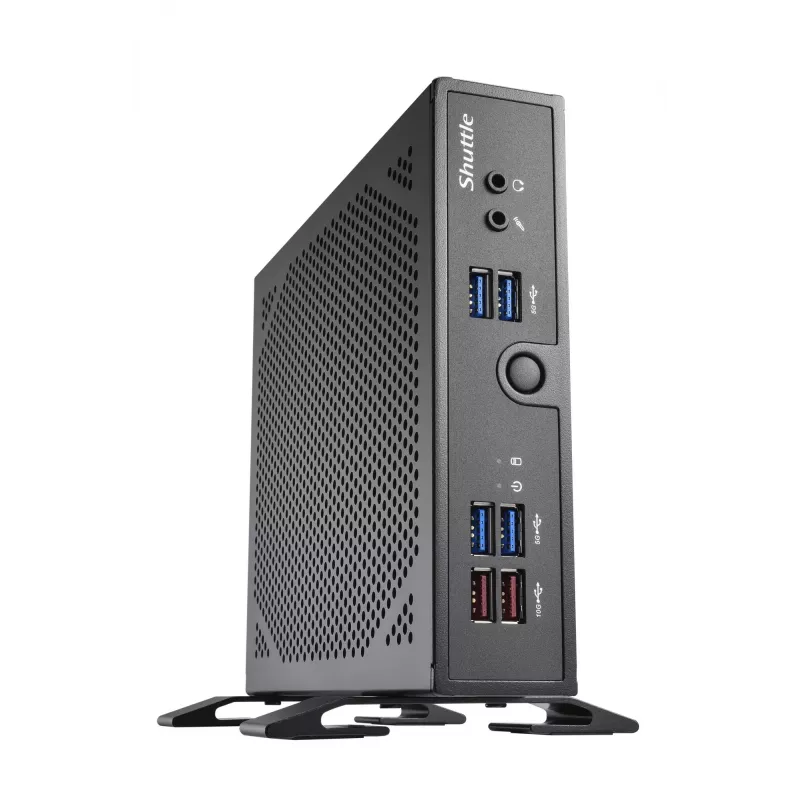

Fanless Slim PC with integrated ULV processor in industrial design

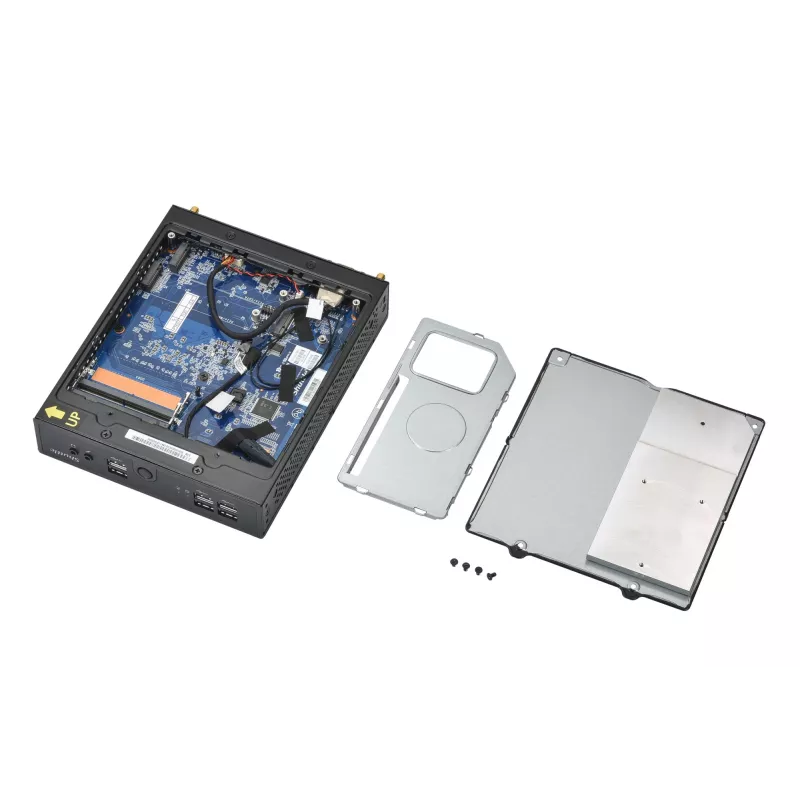

The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.

Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Shuttle XPC slim Barebone DS50U, Intel Celeron 7305, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation. Chassis type: 1.3L sized PC, Product type: Mini PC barebone. BIOS type: UEFI AMI. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Passive. Power supply: 90 W

Key Highlights
  • Fanless 1.3L-PC supports 24/7 operating

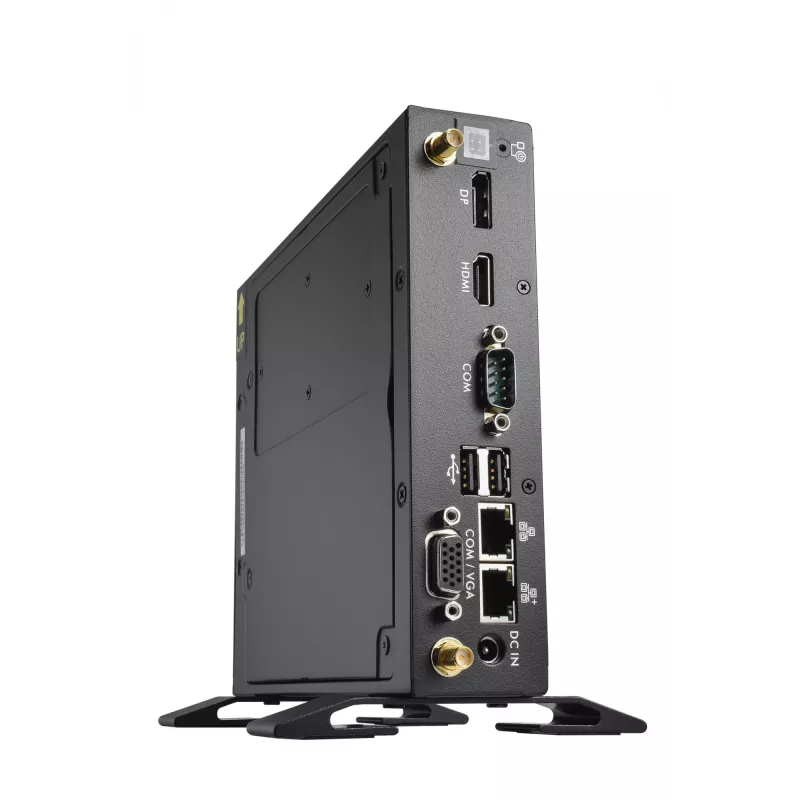

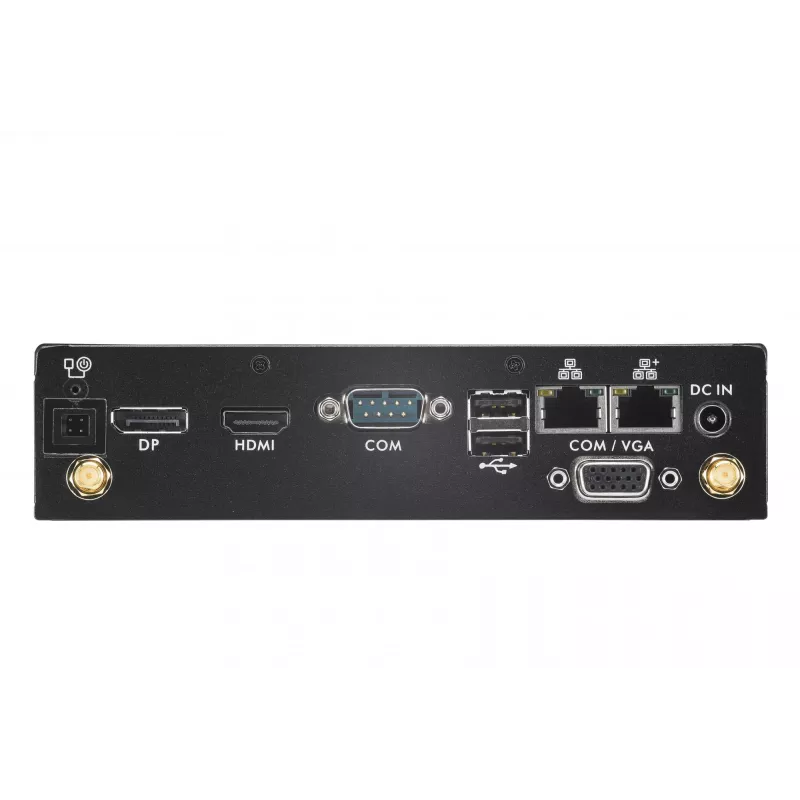

  • Dual LAN (1x 2.5Gbit , 1x 1Gbit) , 1x COM (RS232) , VESA

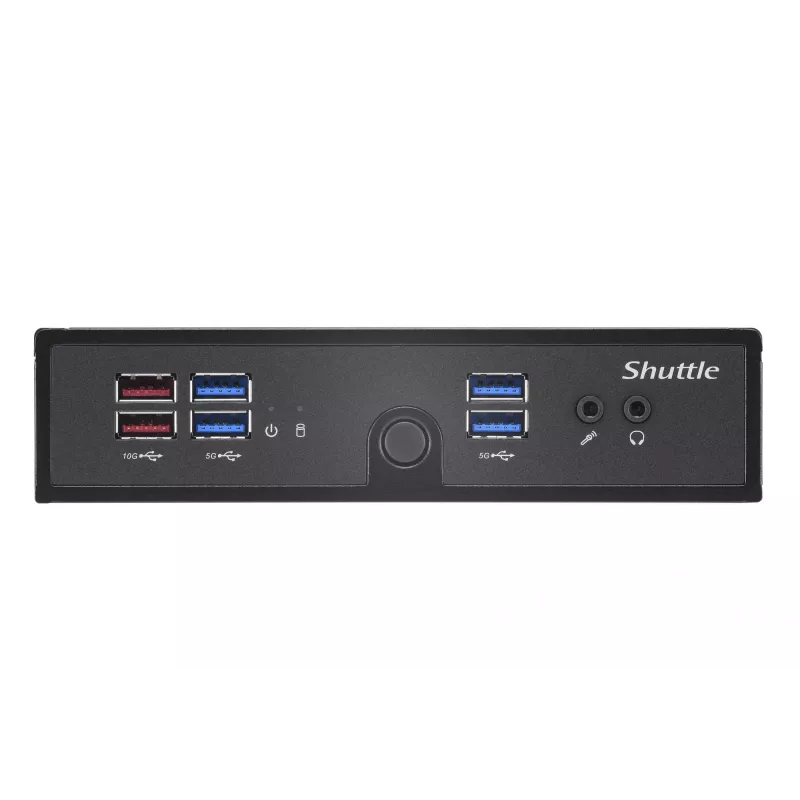

  • HDMI, Display Port and VGA
  • 1.3L sized PC Black
  • Built-in processor Intel 7305
  • 2 SO-DIMM Maximum internal memory: 64 GB DDR5-SDRAM
  • HDD & SSD 2.5,M.2
  • On-board graphics card Intel® UHD Graphics
  • Ethernet LAN
Specifications
AC adapter included
Yes
AC adapter output current
1.6 A
AC adapter output voltage
19 V
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Audio chip
RealTek ALC888S
BIOS type
UEFI AMI
Built-in processor
Yes
Built-in speaker(s)
No
Cable lock slot
Yes
Cable lock slot type
Kensington
Chassis type
1.3L sized PC
Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus
Cooling type
Passive
DC-in jack
Yes
Depth
165 mm
DisplayPort version
1.4
DisplayPorts quantity
1
ECC supported by processor
No
Efficient cores
4
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Graphics card family
Intel
Harmonized System (HS) code
84733080
HDMI ports quantity
1
HDMI version
2.0b
Headphone outputs
1
Height
39.5 mm
Housing material
Steel
LAN controller
Intel® I219, Intel I226-LM
LED indicators
HDD, Power
Linux operating systems supported
Yes
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory slots type
SO-DIMM
Memory voltage
1.1 V
Microphone in
Yes
Number of memory slots
2
Number of power supply units
1
Number of processors supported
1
Number of storage drives supported
3
NVMe
Yes
On-board graphics card
Yes
On-board graphics card model
Intel® UHD Graphics
On/off switch
Yes
Operating relative humidity (H-H)
10 - 90%
Operating system installed
No
Operating temperature (T-T)
0 - 40 °C
Package weight
2.3 kg
Panel mounting interface
75 x 75,100 x 100 mm
Performance cores
1
Power cord included
Yes
Power supply
90 W
Power supply type
External AC adapter
Processor cores
5
Processor family
Intel® Celeron®
Processor manufacturer
Intel
Processor model
7305
Processor threads
5
Product colour
Black
Product type
Mini PC barebone
Quick start guide
Yes
Serial ports quantity
1
Storage drive interface
PCI Express, Serial ATA III
Storage drive sizes supported
2.5,M.2
Supported memory clock speeds
5200 MHz
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Sustainability certificates
ENERGY STAR, ErP
Sustainability compliance
Yes
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
VESA mounting
Yes
VGA (D-Sub) ports quantity
1
Weight
1.6 kg
Wi-Fi
No
Width
200 mm
Windows operating systems supported
Windows 10, Windows 11
