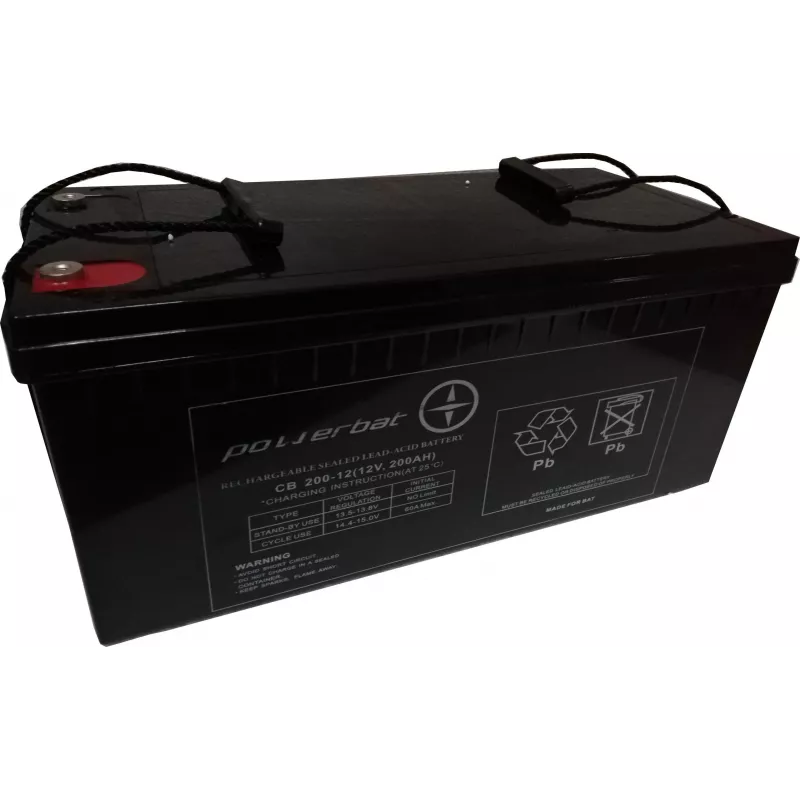

POWERBAT CB 200-12 VRLA Gel Battery 12V 200Ah

The POWERBAT CB 200-12 is a high-performance VRLA Gel battery designed for deep cycle applications. With a nominal voltage of 12V and a capacity of 200Ah (C10) / 210Ah (C20), it provides reliable power for UPS systems, solar/wind energy storage, and telecommunications. Its maintenance-free design and long service life of 10-12 years make it an ideal choice for demanding environments.

Advantages

This battery features VRLA Gel technology, ensuring leak-proof operation and minimal self-discharge (less than 3% per month at 25°C). It supports high discharge currents up to 2000A (5s) and offers excellent cycle life: 1200 cycles at 30% depth of discharge. The ABS container provides durability, while M8 terminals ensure secure connections.

Suitable for

• Uninterruptible Power Supplies (UPS)
• Solar and wind energy storage systems
• Telecommunications equipment
• Deep cycle applications requiring reliable backup power

Key specifications

• Battery Technology: VRLA Gel
• Nominal Voltage: 12V
• Nominal Capacity (C10): 200Ah
• Nominal Capacity (C20): 210Ah
• Design Life: 10-12 years (Eurobat Long Life)
• Cycle Life (30% DOD): 1200 cycles
• Terminal Type: M8 (T11)
• Internal Resistance: Approx. 3.0 mΩ
• Max. Discharge Current (5s): 2000A
• Max. Charge Current: 60A
• Float Charge Voltage: 13.5V - 13.8V @ 25°C
• Cycle Charge Voltage: 14.4V - 14.7V @ 25°C
• Operating Temperature Range (Discharge): -20°C to 50°C
• Self-Discharge Rate: Less than 3% per month at 25°C
• Container Material: ABS
• Maintenance: Maintenance-free

Recommendations

For optimal performance, use with a compatible charger set to the recommended float or cycle charge voltages. Ensure proper ventilation and secure mounting. This battery is a direct replacement for many standard 12V 200Ah deep cycle batteries.
