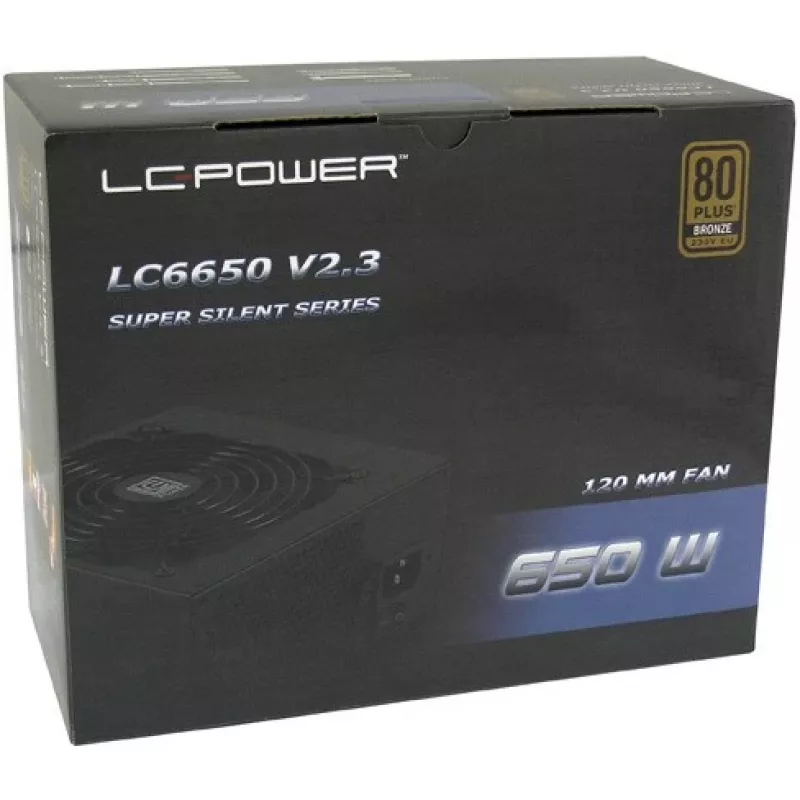

Power Supply Unit LC-Power LC6650 V2.3 650 W

Power Supply Unit LC-Power LC6650 V2.3 650 W
Power Supply Unit LC-Power LC6650 V2.3 650 W
Power Supply Unit LC-Power LC6650 V2.3 650 W
Power Supply Unit LC-Power LC6650 V2.3 650 W
R1,592
The LC-POWER LC6650 V2.3 from the SUPER SILENT SERIES is a desktop power supply designed for office and home systems. It combines a 120mm low-noise fan with a honeycomb ventilation grille to provide effective cooling while maintaining a low operating noise level. The unit includes the common connect... Read More
Stock Out Of StockNo Stock Code 121219 Brand LC-Power Model LC6650 V2.3 Warranty 2 Years

Shipping & Returns

The LC-POWER LC6650 V2.3 from the SUPER SILENT SERIES is a desktop power supply designed for office and home systems. It combines a 120mm low-noise fan with a honeycomb ventilation grille to provide effective cooling while maintaining a low operating noise level. The unit includes the common connectors for mid-range and office motherboards, multiple SATA and PATA connections for hard drives and optical drives, and a PCI-Express 2.0 connector for a graphics card. Energy-saving technology reduces standby consumption to under 0.5 W and raises overall efficiency to over 88%.

Advantages

Quiet operation due to the high-quality 120 mm fan and optimized airflow design. Good compatibility with office and mid-range systems because of multiple SATA and PATA connectors and a PCI-Express 2.0 port. Improved energy efficiency and low standby power consumption, which can reduce overall system energy use. Honeycomb-styled rear grille enhances heat dissipation while keeping noise levels low.

Key specifications

  • Series: SUPER SILENT SERIES
  • Model: LC6650 V2.3
  • Fan: 120 mm low-noise fan
  • Rear ventilation: honeycomb grille
  • Connectors: SATA, PATA, PCI-Express 2.0
  • Standby power consumption: <0.5 W
  • Efficiency: >88%

How to use

Install the power supply in a compatible ATX case, secure it with screws, and connect the main 24-pin ATX and CPU power connectors to the motherboard. Attach SATA and PATA power cables to storage and optical drives as required, and connect the PCI-Express 2.0 cable if a discrete graphics card is used. Ensure proper cable routing to maintain airflow through the honeycomb grille and keep intake/exhaust paths unobstructed. Verify all connections before powering on the system.

Recommendations

For reliable performance, match the LC6650 V2.3 to systems within the office and mid-range power requirements and ensure adequate case ventilation. Regularly check for dust buildup on the fan and grille and clean as necessary to maintain cooling efficiency and low noise levels.
Key Highlights
  • Series: SUPER SILENT SERIES
  • Model: LC6650 V2.3
  • Fan: 120 mm low-noise fan
  • Rear ventilation: honeycomb grille
  • Connectors: SATA, PATA, PCI-Express 2.0
  • Standby power consumption:
  • Efficiency: >88%
Specifications
80 PLUS certification
80 PLUS Bronze
AC input frequency
47 - 63
AC input voltage
230
ATX power connector (20+4 pin)
Yes
ATX version
2.3
Cabling type
Non-Modular
Certification
CE, TÜV
Combined power (+12V)
600 W
Combined power (+3.3V)
100 W
Combined power (+5V)
100 W
Compliance certificates
RoHS
CPU power cable length
450 mm
CPU power connector (4+4 pin)
Yes
Depth
140 mm
Efficiency
88 %
Fan diameter
120 mm
Fan location
Top
Floppy disk drive cable length
550 mm
Floppy disk drive connector
Yes
Floppy drive power connector
1
Harmonized System (HS) code
84733020
Height
86 mm
Input current
5
Max output current (+12V)
50 A
Max output current (+3.3V)
18 A
Max output current (+5V)
18 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.5 A
Motherboard power cable length
550 mm
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of PATA power connectors
3
Number of SATA power connectors
5
Package type
Box
PCI Express connector
Yes
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power connectors (4-pin)
0
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC
SATA power cable length
550, 650, 750
Total power
650 W
Weight
2.082 kg
Width
150 mm

Leaflet

Open Leaflet
