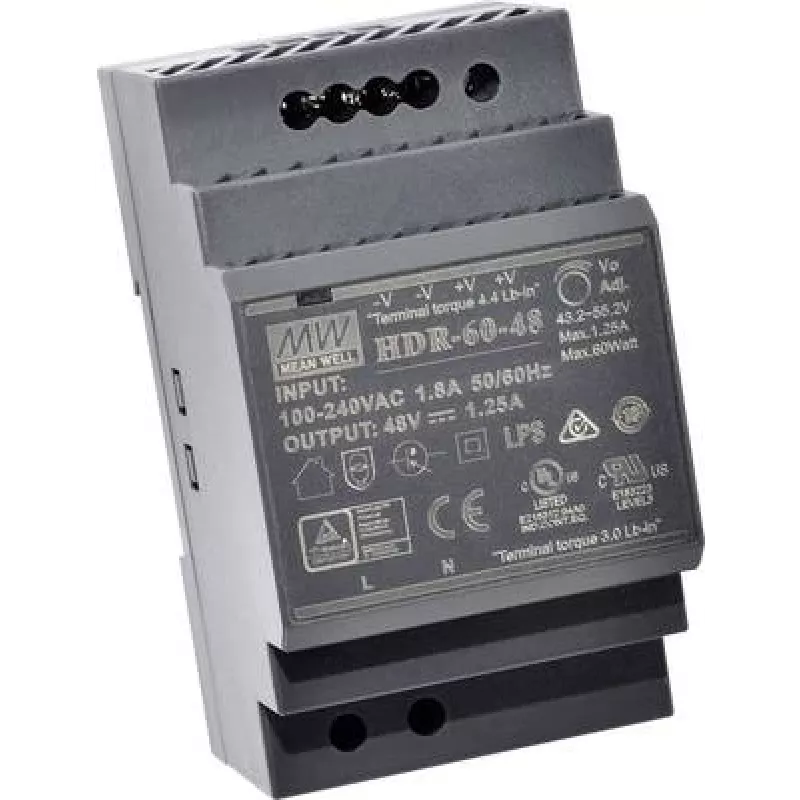

Power Supply Mean Well HDR-60-48

The Mean Well HDR-60-48 is a 60 W DIN‑rail power supply intended for industrial and automation use. It accepts a wide AC input range (90–264 VAC) and provides a stable 48 V DC output at up to 1.25 A. The compact housing is designed for installation on standard DIN rails and includes built‑in protections to ensure reliable operation in equipment and lighting installations.

Advantages

The HDR-60-48 offers high efficiency (up to 90%) to reduce energy loss and heat generation, a compact DIN‑rail form factor for space-saving installation, and integrated protection against short circuit, overload and overvoltage for improved operational safety and equipment protection.

Suitable for

• LED lighting systems requiring 48 V DC
• Industrial automation controllers and sensors
• Control cabinets and DIN‑rail installations
• Small machinery and auxiliary equipment with 48 V supply

Key specifications

• Manufacturer: Mean Well
• Model / MPN: HDR-60-48
• Power: 60 W
• Output: 48 V DC, 1.25 A
• Input voltage: 90–264 VAC
• Efficiency: up to 90%
• Mounting: DIN‑rail (Hutschiene)
• Protections: short circuit, overload, overvoltage
• EAN: 4021087036559

How to use

Mount the power supply on a standard DIN rail inside the control cabinet. Connect the AC input to a suitable mains supply (90–264 VAC) following local wiring regulations and safety rules. Connect the 48 V DC output to the load, observing correct polarity. Ensure adequate ventilation around the unit and avoid placing it near heat sources. Verify connections and measure the output voltage before placing the system into service.

Recommendations

For reliable long‑term operation, keep the ambient temperature within the manufacturer’s specified range, provide sufficient airflow around the unit, and protect the device from moisture and conductive dust. Use appropriate fuses or upstream circuit protection and avoid exceeding the rated load to maintain warranty and safety.
