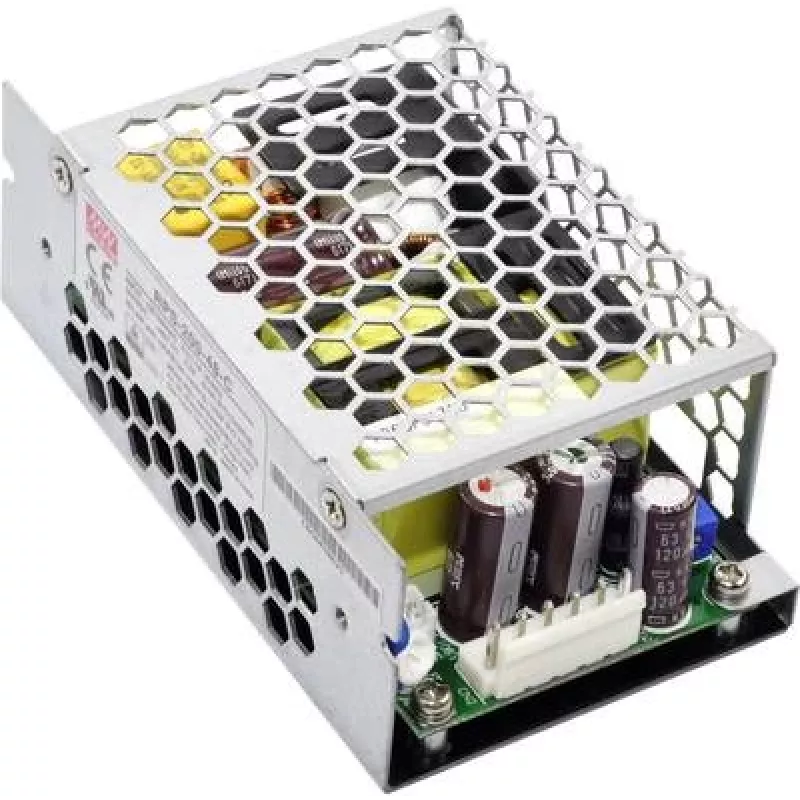

Power adapter mean well RPS-200-24-C, 200 W, 24 V output, 80–264 V input, RoHS, 62×103.4×40 mm

Mean Well RPS-200-24-C is a compact AC‑DC power adapter providing a regulated 24 V DC output at up to 200 W from a universal AC input range of 80–264 V. The unit is intended for industrial and commercial applications where a stable 24 V rail is required in a small footprint; its enclosed construction and compliance with RoHS make it suitable for installations that need reduced environmental impact and reliable power conversion.

Advantages

The adapter delivers a high continuous power density in a compact enclosure measuring approximately 62 × 103.4 × 40 mm, allowing installation in constrained spaces. It accepts a wide AC input range for global compatibility and provides regulated 24 V output for consistent operation of downstream electronics. The design includes medical-grade safety features with double MOPP isolation suitable for medical equipment requirements, and the product meets RoHS restrictions on hazardous substances.

Suitable for

• Control panels and industrial automation devices requiring 24 V supply
• LED driver systems and lighting control electronics
• Embedded systems, communication equipment, and instrumentation
• Medical devices and equipment where medical isolation is required

Key specifications

• Output voltage: 24 V DC
• Output power: up to 200 W
• Output current: up to 5.9 A
• Input voltage range: 80–264 V AC
• Safety isolation: 2×MOPP (medical two times Means of Patient Protection)
• RoHS compliant
• Enclosed/open frame variant with case for protected installation
• Approximate dimensions: 62 × 103.4 × 40 mm (compact footprint)

How to use

Install the adapter in a location that provides adequate ventilation and mechanical protection. Connect the AC input to a properly rated mains supply within the specified 80–264 V range and observe correct polarity on the DC output terminals when wiring the 24 V output to the load. Confirm that the connected load does not exceed the maximum rated current and power. For medical applications, follow applicable installation standards and verify that the required isolation distances and creepage/clearance requirements are maintained.

Recommendations

Ensure the adapter is mounted on a stable surface with sufficient clearance for heat dissipation; avoid placing in sealed enclosures without ventilation. Use appropriately rated fuses or circuit breakers on the input side and observe grounding practices as dictated by the end application. For critical or medical installations, perform acceptance testing under expected load conditions and consult relevant safety standards.
