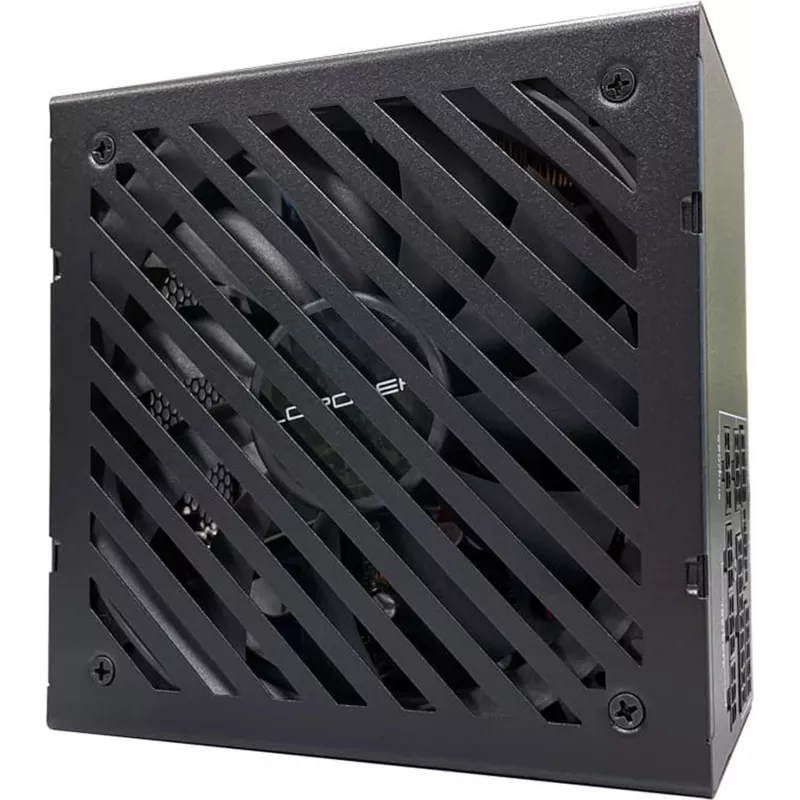

Power Supply LC-Power 650W Integrator Pro Modular

ATX 3.1 with 650 watts and 135 mm fan The LC6650G-SI V3.1 is an 80 PLUS GOLD-certified, fully modular ATX power supply that ensures good performance and stability in the system. The Integrator Series LC6650G-SI V3.1 power supply offers an output of 650 watts and is a reliable power supply solution for a wide range of applications. Equipped with a quiet 135 mm fan, it works efficiently and ensures optimal cooling. Fully modular & sleeved cables Equipped with a fully modular cable management system, the LC6650G-SI V3.1 offers users optimum flexibility when installing and configuring their system. The Integrator Series LC6650G-SI V3.1 power supply comes with high-quality black sleeved cables, which not only offer an aesthetically pleasing appearance, but also enable simple and clean installation. Connectors for versatile systems The LC6650G-SI V3.1 features a 20+4-pin motherboard connector compatible with most motherboards, as well as a 600 mm 4+4-pin motherboard 12V connector, a 750 mm 4+4-pin motherboard 12V connector, six SATA and two PATA, ensuring a stable power supply for powerful CPUs, hard drives and disc drives. For graphics cards, the LC6650G-SI V3.1 has an excellent three PCI-Express 6+2 pin connectors and a powerful PCI-Express 5.1 12V-2x6 12+4-pin connector, providing a direct and reliable power supply for multiple GPUs. ATX form factor 650 W 135 mm fan fully modular cable management Black braided cable 80 PLUS® Gold certified Efficiency of up to 90 % Full range: 100 – 240 V six safety circuits DC-to-DC technology Powerful +12 V line (54.1 A) 3× PCIe 6+2-pin 1× PCIe 5.1 12V-2x6 12+4-pin Technical specifications: Power supply series: Integrator-Pro series ATX standard: ATX 3.1 Dimension power supply: 86 × 150 × 150 mm Dimension packaging: 113 × 200 × 245 mm Weight (product/total): 2.13 / 2.38 kg Power: 650.0 W Lüfter: 135-mm lüfter Certification: 80 PLUS® GOLD PFC: active Efficiency: up to 90 % Standby consumption: Temperature-dependent control for casing: Yes Safety circuits: OVP = overvoltage protection OCP = overcurrent protection OPP = overpower protection SCP = Short-circuit protection SIP = Surge protection UVP = Undervoltage protection Range: Full Range (100.0 V / 240.0 V) Material: metal, plastic Colour: black Connections: 20+4-pin mainboard: 1× 600 mm 4+4-pin mainboard 12V (8-pin EPS): 1× 600 mm / 1× 750 mm PCIe 5.1 12V-2x6 12+4-pin: 1× 600 mm PCI-Express 6+2-pin: 3× total (1× 550 mm / 1× 600 mm / 1× 700 mm) SATA: 6× total (2× 450 mm / 2× 600 mm / 2× 700 mm) PATA: 2× 900 mm Power output: +3.3 V: 20.0 A +5 V: 20.0 A +12 V: 54.1 A Max. combined +3.3 V / +5 V: 100.0 W Max. combined +12 V: 649.2 W

• Height packaging: 0.115m
• Output voltage: 3.3 - 12.0V
• Length packaging: 0.245m
• Manufacturer information: Silent LC Power
  Formerweg 8-12
  47877 Willich
  Deutschland
  [email protected]
• Country of origin: Taiwan
• Im Angebot: No
• Stark reduziert: No
• Width packaging: 0.200m
• Customs tariff number: 8504403000
• Manufacturer No.: LC6650G-SI V3.1
• EAN Barcode: 4262443280708
• Modular: Yes
• 80 PLUS: Gold
• Form factor: ATX 3.1
• Weight: 2,385kg
• Brand: LC-Power
• Colour: Black
• Max. output power: 650W

How to use

Install the PSU into a compatible ATX case following the case manufacturer’s mounting points and orientation recommendations. Connect the main 24-pin motherboard cable and the required CPU and GPU power connectors, attaching only the modular cables necessary for your configuration. Ensure connectors are fully seated and cable routing does not block fans or airflow paths. After making all connections, verify voltage selector (if present) and power on the system while monitoring for normal operation and stable voltages.

Recommendations

Place the power supply so its fan intake aligns with the case ventilation design to optimize cooling. Use only the cables supplied with the unit and avoid routing cables tightly across heat sources. For systems under heavy load, periodically check internal temperatures and connections to ensure continued reliable performance.
