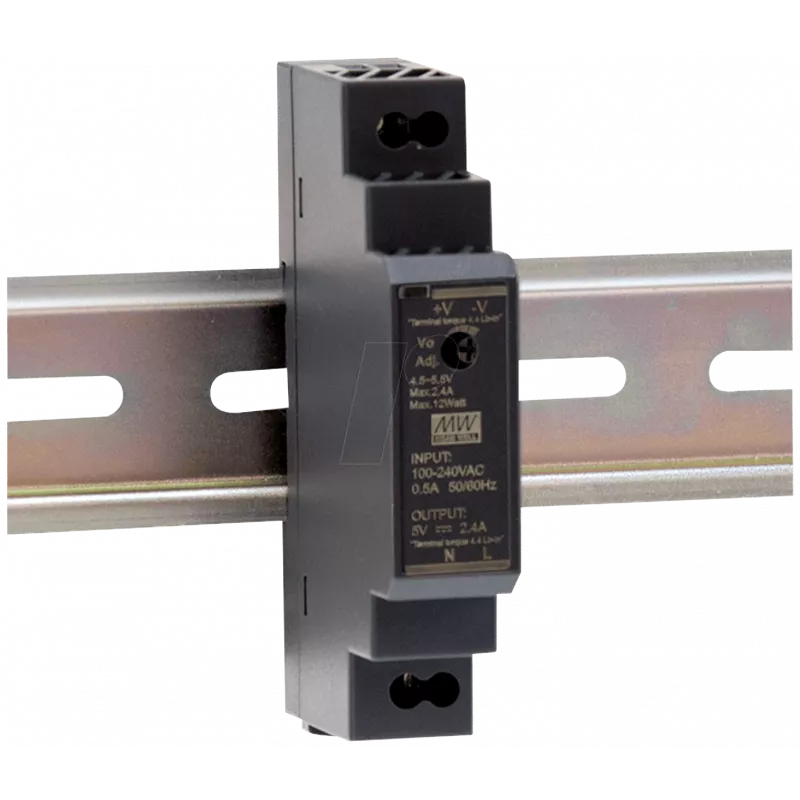

Power Adapter MEAN WELL HDR-15-5

The MEAN WELL HDR-15-5 is an ultra-slim DIN rail AC-DC power supply providing a stable 5VDC output at up to 2.4A from a wide input range of 85–264VAC. This compact 15W module meets RoHS requirements and is designed for space-efficient installation on standard DIN rails, with dimensions of 54.5 mm depth and 90 mm height and a lightweight construction of approximately 80 g. It is suitable for industrial control panels, automation systems and other low-voltage 5V applications.

Advantages

The HDR-15-5 delivers regulated 5V output with up to 2.4A current in a slim form factor that saves DIN rail space. Its wide input range (85–264VAC) supports use in varied mains environments, while RoHS compliance ensures reduced environmental impact. The unit's low weight and compact dimensions simplify mounting and integration into control cabinets and compact enclosures.

Suitable for

• Industrial control panels and PLC systems
• Automation and building management equipment
• 5V logic devices, sensors and low-voltage peripherals
• Applications requiring compact DIN-rail power modules

Key specifications

• Model: HDR-15-5
• Input voltage: 85–264VAC
• Output: 5VDC, 2.4A (15W)
• Form factor: Ultra-slim DIN rail power supply
• Compliance: RoHS
• Dimensions (depth × height): 54.5 mm × 90 mm
• Weight: ~80 g
• Manufacturer: MEAN WELL
• MPN: HDR-15-5
• EAN: 4021087036641

How to use

Mount the HDR-15-5 securely on a standard DIN rail inside a suitable enclosure, ensuring adequate ventilation and clearance from heat sources. Connect the AC mains input (85–264VAC) to the input terminals following local electrical codes and polarity markings. Connect the 5VDC output to the load, observing correct polarity. Verify connections before powering on and confirm output voltage under load. For multi-unit installations, allow spacing as recommended in product literature to maintain proper cooling.

Recommendations

For reliable operation, install the unit in a dry, ventilated cabinet and avoid locations with excessive vibration or corrosive atmospheres. Ensure the connected load does not exceed 2.4A and provide surge protection at the distribution level if the supply is used in areas with unstable mains.
