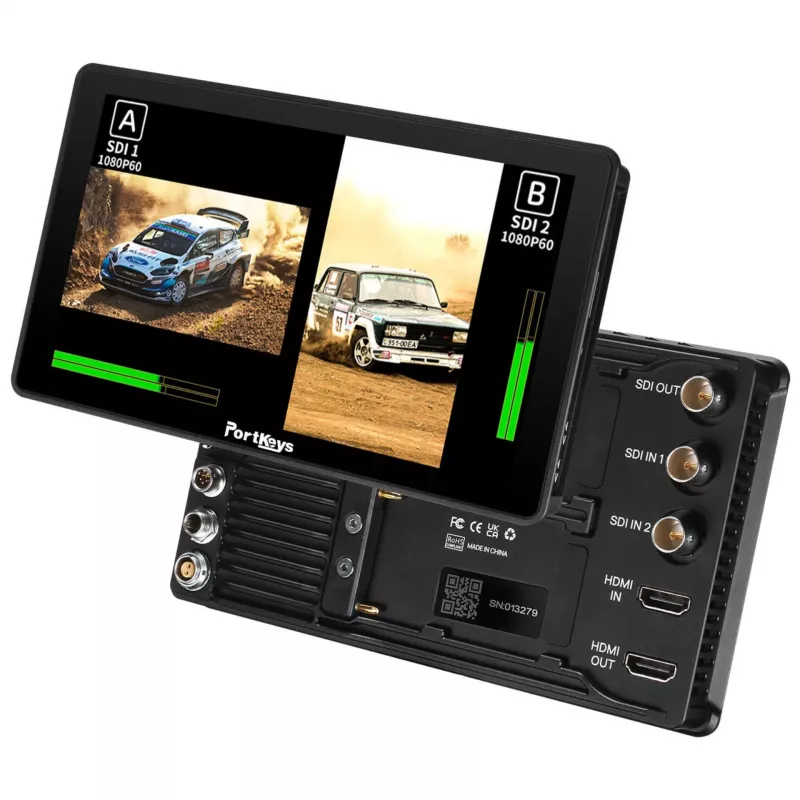

Portkeys BM7 II DS 7 inch Wireless Camera Control Monitor

The Portkeys BM7 II DS is a professional 7-inch wireless camera control monitor designed for filmmakers and videographers. With a bright 2200 cd/m² Full HD display, it offers excellent visibility even in outdoor conditions. The monitor supports wireless camera control via Bluetooth and Wi-Fi, compatible with major brands like RED, Blackmagic, Sony, Canon, and more. Its robust aluminum alloy construction ensures durability on set.

Advantages

High brightness and contrast for accurate monitoring in various lighting conditions. Wireless control reduces cable clutter, and the built-in NP-F battery plate allows for flexible power solutions. Comprehensive monitoring tools including waveform, vectorscope, histogram, false color, zebra, focus peaking, and 3D LUT support enhance workflow efficiency.

Suitable for

• Professional videographers and cinematographers
• Camera operators needing wireless control
• Studio and field production environments

Key specifications

• Display: 7-inch IPS, 1920x1200 Full HD, 2200 cd/m² brightness, 1000:1 contrast
• Touchscreen: Yes
• Video Inputs/Outputs: 1x HDMI, 1x 3G-SDI (each)
• Camera Control: Wireless (Bluetooth/Wi-Fi) and Wired (USB)
• Power Input: DC 7.4-24V (4-pin aviation connector)
• Battery Compatibility: Sony NP-F series (built-in plate)
• Monitoring Tools: Waveform, Vectorscope, Histogram, False Color, Zebra, Focus Peaking, LUTs
• Construction: Aluminum Alloy
• Audio Output: 3.5mm headphone jack
• USB Ports: 1x USB-A (Control/Firmware), 1x USB-C (Firmware/Power)

Recommendations

For optimal performance, use with compatible NP-F batteries or external DC power. Ensure firmware is updated via USB for latest features.
