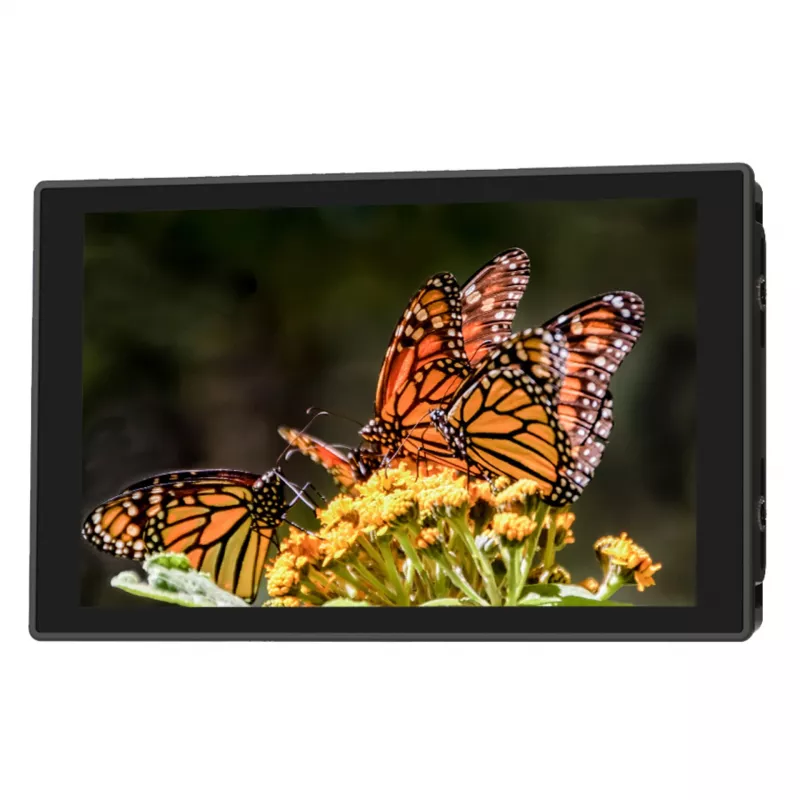

Portkeys HD7T 7 inch 2200 cd/m² IPS On-Camera Monitor with 3D LUT

The Portkeys HD7T is a professional 7-inch on-camera monitor designed for filmmakers and videographers who demand accurate exposure and focus tools. With an ultra-bright 2200 cd/m² IPS panel, it delivers clear visibility even in direct sunlight. The monitor supports 4K HDMI input and loop-out, HDR monitoring (HLG/PQ), and 3D LUT loading via USB-A for precise color grading. Its robust aluminum alloy housing and multiple 1/4"-20 mounting points ensure durability and flexible rigging.

Advantages

High brightness enables outdoor use without a sun hood. The 1920x1200 resolution provides sharp image detail, while the 178° viewing angle ensures accurate color from any position. Built-in professional tools like waveform, vectorscope, histogram, false color, peaking, zebras, and anamorphic de-squeeze assist in critical focus and exposure. The HDMI 2.0 loop-out allows daisy-chaining to additional monitors or recorders.

Suitable for

• DSLR and mirrorless camera operators needing a bright field monitor
• Cinema camera crews requiring accurate exposure and focus aids
• Colorists who need on-set 3D LUT preview
• Gimbal and drone operators (lightweight design)

Key specifications

• Display: 7" IPS LCD, 1920x1200, 2200 cd/m², 1000:1 contrast
• Input: 1x HDMI 2.0 (up to 4K DCI 24p / 4K UHD 30p)
• Output: 1x HDMI 2.0 loop-out
• Power: DC 7-24V or Sony NP-F battery plate
• Tools: Waveform, Vectorscope, Histogram, False Color, Peaking, Zebras, Grids, Anamorphic De-squeeze
• Construction: Aluminum alloy, 3x 1/4"-20 threads

Recommendations

For best performance, use a high-quality HDMI cable and a compatible NP-F battery. Update firmware via USB-A for latest features. Ideal for outdoor shoots where sunlight readability is critical.
