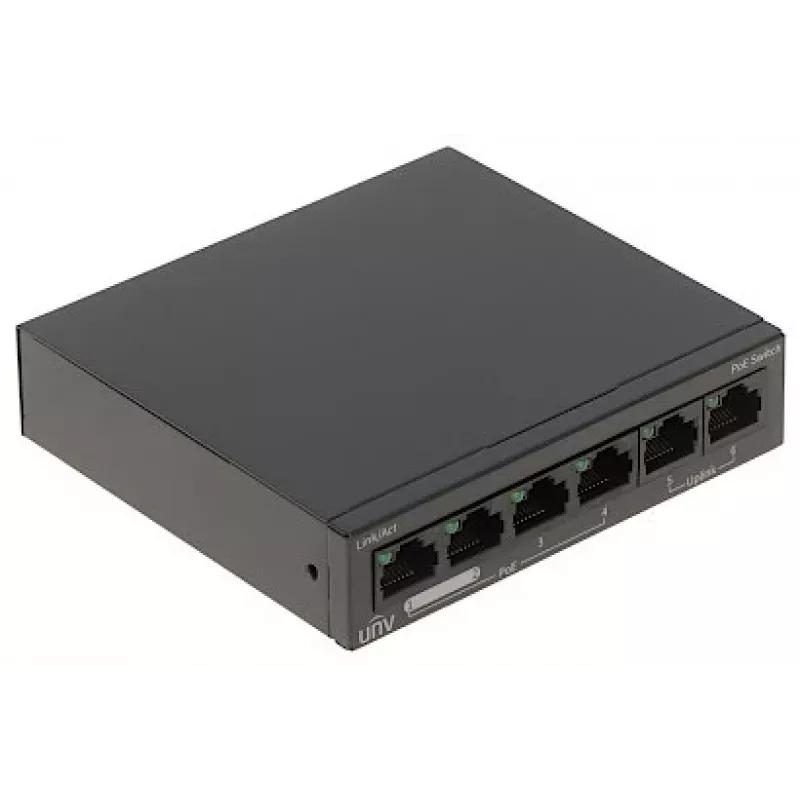

POE LANG NSW2020-6T-POE-IN PoE Switch 4-Port Uniview

The POE LANG NSW2020-6T-POE-IN is a 6-port PoE switch designed for small to medium-sized networks, featuring 4 PoE ports and 2 uplink ports. It supports IEEE 802.3af/at PoE standards with a total power budget of 58W, making it ideal for powering IP cameras, VoIP phones, and wireless access points. The switch offers reliable performance with a switching capacity of 2.8 Gbps and supports jumbo frames up to 10K for efficient data transfer.

Advantages

This switch provides cost-effective network expansion with PoE capability, eliminating the need for separate power supplies for connected devices. Its compact desktop and wall-mountable design saves space, while the 6KV surge protection ensures durability in various environments. The extend mode allows transmission distances up to 250m, perfect for large-area coverage.

Suitable for

• Small offices and home networks requiring PoE for IP cameras or VoIP phones
• Surveillance systems needing reliable power and data transmission
• Wireless access point deployments in retail or hospitality settings

Key specifications

• Total Ports: 6 (4 PoE + 1 RJ45 uplink + 1 SFP uplink)
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 58W
• Switching Capacity: 2.8 Gbps
• Packet Forwarding Rate: 2.08 Mpps
• MAC Address Table: 2K
• Jumbo Frame Support: 10K
• Transmission Distance: 100m (standard), 250m (extend mode)
• Power Supply: External DC 52V
• Operating Temperature: -10°C to 55°C
• Surge Protection: 6KV
• Mounting: Desktop, wall-mount

Recommendations

For optimal performance, use Category 5e or higher Ethernet cables. The switch is plug-and-play, requiring no configuration. Ensure the power adapter is connected to a surge-protected outlet.
