Pin header DeLOCK 66700 Printed Circuit Board (PCB) accessory

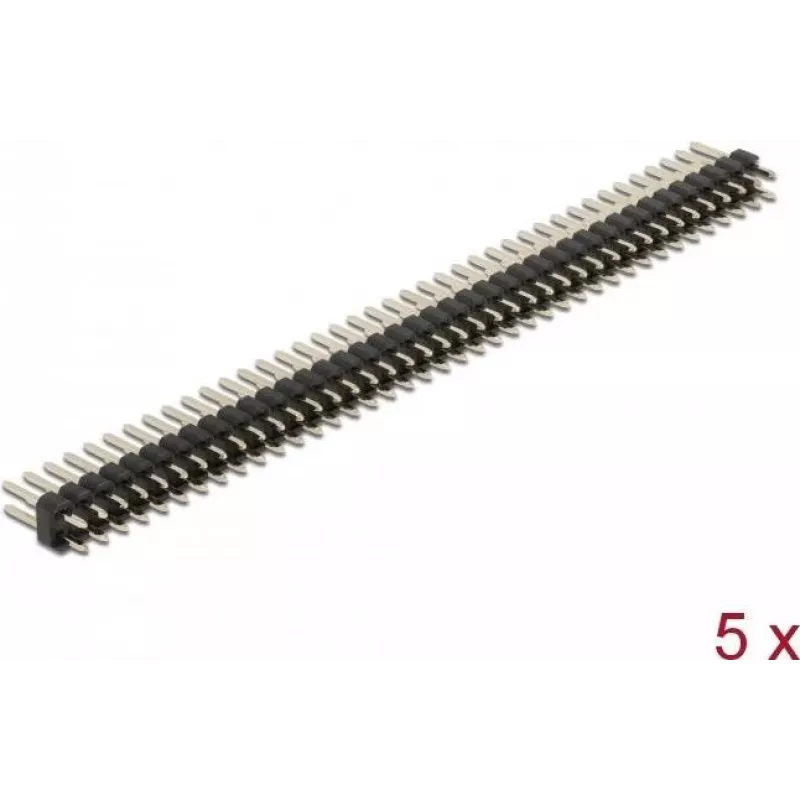

The DeLOCK 66700 pin header is an accessory for printed circuit boards (PCBs) designed to create reliable electrical connections between individual boards. Made of metal and plastic with a black and metallic finish, this pin header is supplied in a pack of five and fits a variety of electronic applications.

Advantages

The DeLOCK 66700 offers a compact form factor (101.6 mm length, 11.5 mm depth, 5 mm height) suitable for tight PCB layouts. Its combination of metal contacts and plastic housing provides mechanical stability and electrical conductivity. Supplied as a 5-piece pack, it simplifies procurement for small projects and repairs.

Suitable for

• Creating board-to-board connections on PCBs
• Prototyping and small electronic projects
• Repairing or extending existing circuit boards

Key specifications

• Brand: DELOCK
• Model / MPN: 66700
• EAN: 4043619667000
• Material: metal contacts and plastic housing
• Color: black and metallic
• Dimensions: length 101.6 mm, depth 11.5 mm, height 5 mm
• Package quantity: 5 pieces
• Category: Printed Circuit Board (PCB) accessory

How to use

Align the pin header with the corresponding holes or pads on the PCB and solder each pin to the board according to your circuit design. Ensure correct orientation before soldering and verify electrical continuity after installation. Use appropriate soldering tools and observe standard ESD precautions when handling and mounting the component.

Recommendations

For reliable results, use a temperature-controlled soldering iron and flux suitable for electronics; avoid excessive heat on the plastic housing. Store the spare pin headers in anti-static packaging and handle them with care to prevent bending the pins.
