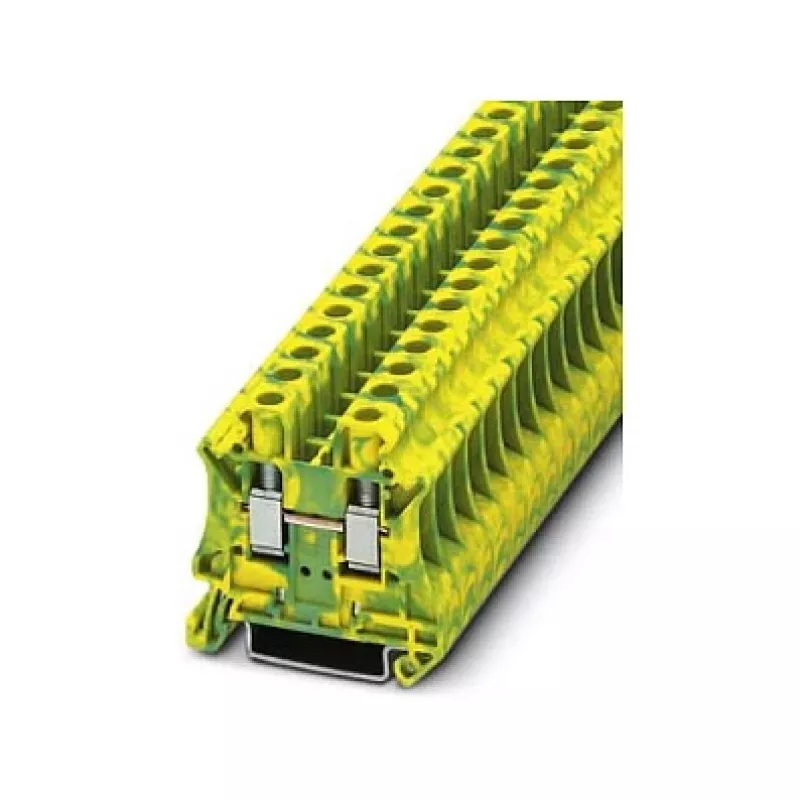

Phoenix Contact UT 6-PE Protective Conductor Terminal Block, Screw Connection, Green-Yellow, 10 mm²

In industrial control cabinets and on DIN rails, electricians and panel builders need a reliable way to connect protective earth conductors. The Phoenix Contact UT 6-PE protective conductor terminal block provides a secure screw connection point for PE conductors up to 10 mm², ensuring compliance with IEC 60947-7-2 and safe grounding in power distribution and automation systems.

Key specifications

• Connection method: screw connection with M4 thread, tightening torque 1.5–1.8 Nm
• Conductor cross-section: solid up to 10 mm², stranded up to 6 mm² (AWG 20–8)
• Number of connections: 2; number of positions: 1; number of levels: 1
• Mounting type: DIN rail NS 35/7.5 or NS 35/15
• Colour: green-yellow (PE identification)
• Insulating material: polyamide (PA), flammability rating UL 94 V0
• Operating temperature: -60 °C to +105 °C
• Stripping length: 10 mm
• Standards: IEC 60947-7-2, pollution degree 3, overvoltage category III

Why choose it

The UT 6-PE is engineered for durability and safety. Its robust screw connection ensures a vibration-resistant, low-resistance ground path, critical for protecting personnel and equipment. The green-yellow housing provides instant identification as a PE terminal, reducing wiring errors. The high-quality polyamide insulation withstands harsh industrial environments, and the wide temperature range makes it suitable for both indoor and outdoor applications.

Ideal use cases

• Grounding protective conductors in control panels and switchgear
• Connecting PE conductors in motor control centers and distribution boards
• Railway, machinery, and renewable energy installations requiring reliable earthing
• Retrofitting or expanding existing DIN rail terminal blocks

Good to know

The terminal block is part of the Phoenix Contact CLIPLINE complete system, allowing easy bridging and marking with standard accessories. It is designed for use with copper conductors only. Always follow the specified torque to ensure a secure connection and avoid damage to the conductor or terminal.
