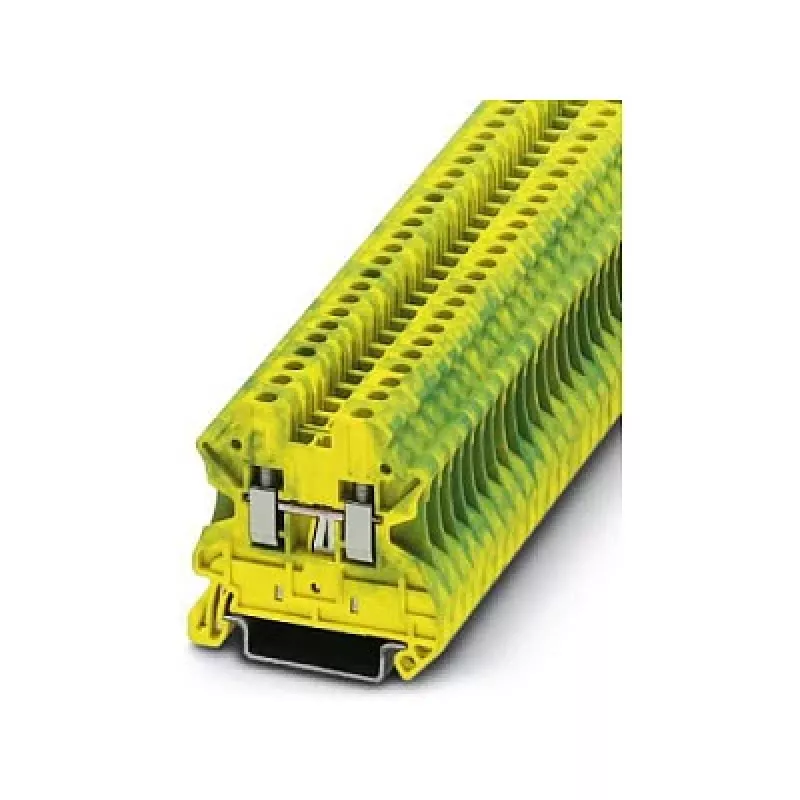

Phoenix Contact UT 2,5-PE Protective Conductor Terminal Block - Green-Yellow, Screw Connection, 2.5mm², DIN Rail Mount

With a nominal cross section of 2.5 mm² and a screw connection system, this Phoenix Contact UT 2,5-PE terminal block provides a secure and reliable protective earth connection for industrial control panels and distribution boards. Its green-yellow housing clearly identifies it as a PE terminal, ensuring compliance with electrical safety standards.

Overview

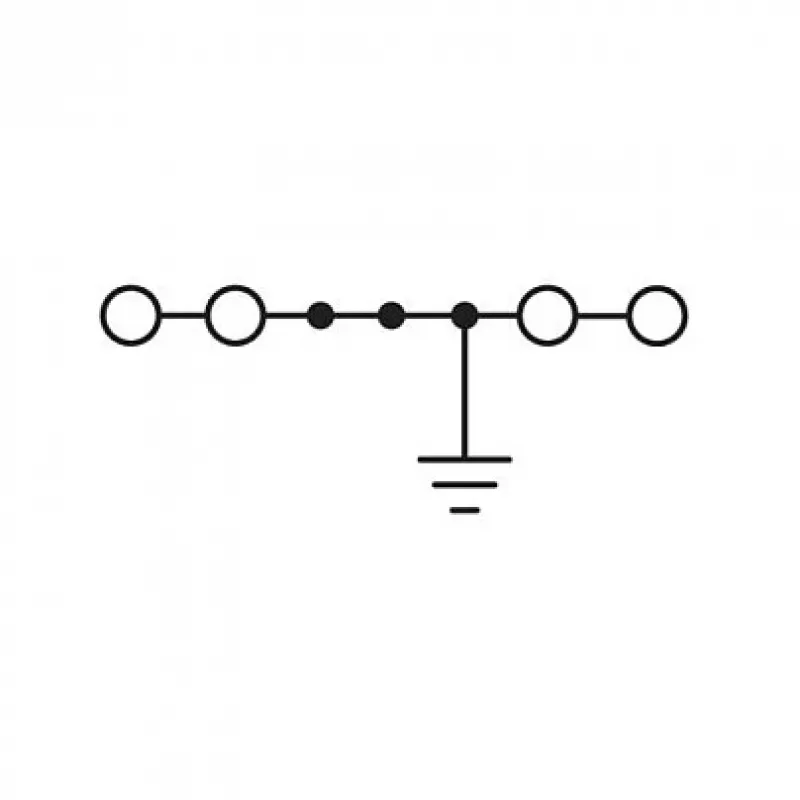

The UT 2,5-PE is a single-level protective conductor terminal block designed for DIN rail mounting on NS 35/7.5 or NS 35/15 rails. It accommodates conductors from 0.14 mm² to 4 mm² (solid or stranded) and AWG 26 to 12, making it versatile for a wide range of wiring applications. The screw connection with M3 thread and a tightening torque of 0.5 to 0.6 Nm guarantees a vibration-resistant and maintenance-free connection.

What stands out

• High safety: UL 94 V0 flammability rating and IEC 60947-7-2 compliance for protective conductor terminals.
• Wide operating temperature range from -60 °C to 105 °C, suitable for harsh environments.
• Robust polyamide (PA) insulation with excellent mechanical and electrical properties.
• Compact design with a width of only 5.2 mm, saving space on the DIN rail.
• Global approvals: UL, cUL, EAC, VDE, CSA, KEMA-KEUR.

Technical details

• Type: Protective conductor (PE) terminal block
• Connection method: Screw connection
• Number of connections: 2
• Number of positions: 1
• Nominal cross section: 2.5 mm²
• Conductor cross section solid: 0.14 - 4 mm²
• Conductor cross section stranded: 0.14 - 4 mm²
• AWG range: 26 - 12
• Stripping length: 9 mm
• Screw thread: M3
• Tightening torque: 0.5 - 0.6 Nm
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Insulation material: PA (polyamide)
• Flammability rating: UL 94 V0
• Operating temperature: -60 °C to 105 °C
• Pollution degree: 3
• Overvoltage category: III
• Standards: IEC 60947-7-2, UL, cUL, EAC, VDE, CSA, KEMA-KEUR

Our verdict

The Phoenix Contact UT 2,5-PE is a reliable and compact PE terminal block that meets stringent international standards. Its robust construction and wide temperature range make it an excellent choice for industrial applications where safety and durability are paramount.
