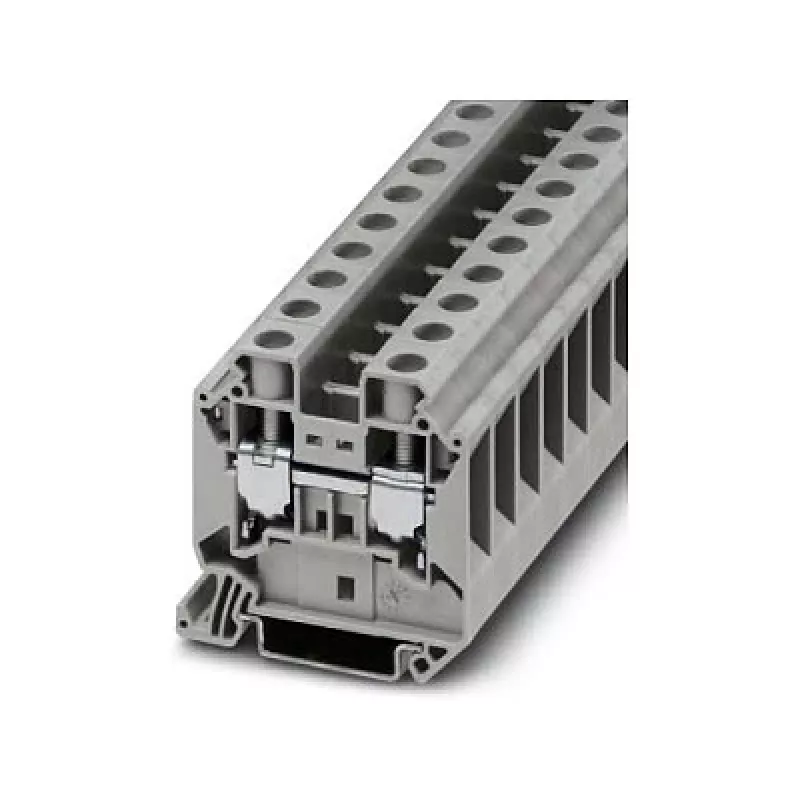

Phoenix Contact UT 16 Feed-Through Terminal Block, Screw Connection, 76 A, 1000 V, Gray

The Phoenix Contact UT 16 feed-through terminal block stands out with its robust screw connection and a generous 16 mm² conductor cross-section, making it a dependable choice for demanding industrial wiring. Its compact design and high current rating of 76 A ensure reliable power distribution in control cabinets and junction boxes.

Highlights

• Screw connection for secure and vibration-resistant terminations
• Rated voltage of 1000 V and rated current of 76 A for heavy-duty applications
• Accepts solid and stranded conductors from 0.5 mm² to 16 mm² (AWG 20 to 6)
• Gray polyamide (PA) housing with UL 94 V0 flammability rating for enhanced safety
• Mounts on standard DIN rails (NS 35/7.5, NS 35/15) for easy installation
• Wide operating temperature range from -60 °C to 105 °C

In daily use

This terminal block is engineered for straightforward wiring in industrial settings. The M4 screw thread and a stripping length of 12 mm simplify preparation, while the recommended tightening torque of 1.5–1.8 Nm ensures a reliable connection. With two connection points and one position, it facilitates clear and organized wiring, reducing installation time and maintenance effort.

Full specifications

• Connection method: Screw connection
• Number of connections: 2
• Number of positions: 1
• Nominal voltage: 1000 V
• Nominal current: 76 A
• Conductor cross-section (solid): 0.5 mm² - 16 mm²
• Conductor cross-section (stranded): 0.5 mm² - 16 mm²
• AWG wire size: 20 - 6
• Color: Gray
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Insulating material: PA (Polyamide)
• Flammability rating (UL 94): V0
• Pollution degree: 3
• Overvoltage category: III
• Rated surge voltage: 8 kV
• Operating temperature: -60 °C ... 105 °C
• Stripping length: 12 mm
• Screw thread: M4
• Tightening torque: 1.5 Nm - 1.8 Nm

Final note

This feed-through terminal block is a reliable and versatile solution for electrical connections in industrial environments. Its robust construction and high electrical ratings ensure long-term performance, making it a valuable component for your wiring projects.
