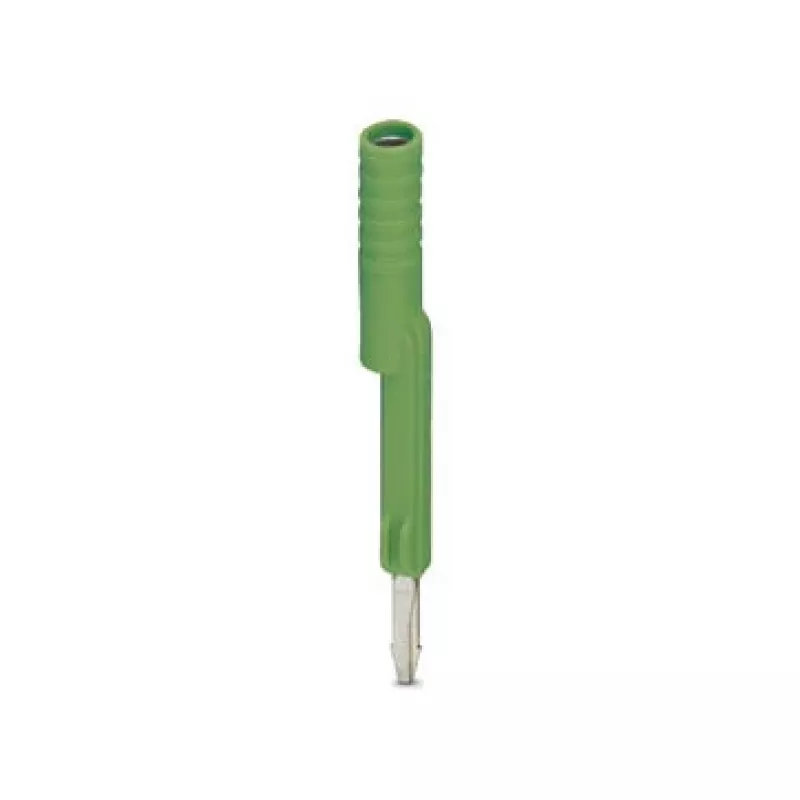

Phoenix 3032758 Profile Adapter PAI-4-FIX GN

In control cabinets and industrial panels, terminal blocks often need a secure alternative to DIN rail mounting. The Phoenix 3032758 PAI-4-FIX GN profile adapter provides exactly that: a green polyamide adapter that snaps onto compatible terminal blocks and screws directly to the mounting plate. It is part of the CLIPLINE complete system and is ideal for applications where space is limited or where a fixed, vibration-resistant installation is required.

Key specifications

• Product type: Profile adapter
• Mounting type: Direct mounting / Snap-on
• Material: Polyamide (PA)
• Colour: Green
• Dimensions: 4 mm length, 10 mm width, 12.5 mm height
• Operating temperature: -60 °C to 105 °C
• Flammability rating: UL 94 V0
• Environmental compliance: RoHS compliant
• Series: CLIPLINE complete
• Installation method: Screw mounting to plate, snap-on for terminal block

Why choose it

This adapter offers a robust and reliable fixing solution for terminal blocks, eliminating the need for DIN rails. Its snap-on design ensures quick and secure attachment, while the screw mounting provides a permanent hold on the plate. The polyamide material delivers excellent mechanical strength and insulation, and the UL 94 V0 rating ensures fire safety. The green colour allows for easy identification in complex wiring setups.

Ideal use cases

• Mounting terminal blocks in control cabinets without DIN rails
• Securing terminal blocks in high-vibration environments
• Creating custom terminal block arrangements on flat panels
• Applications requiring RoHS compliance and high temperature tolerance

Good to know

The PAI-4-FIX GN is compatible with various Phoenix Contact terminal blocks from the CLIPLINE complete range. It is a simple yet effective component for panel builders and electrical engineers who need flexible mounting options. The adapter is lightweight and easy to install, making it a practical choice for both prototyping and production.
