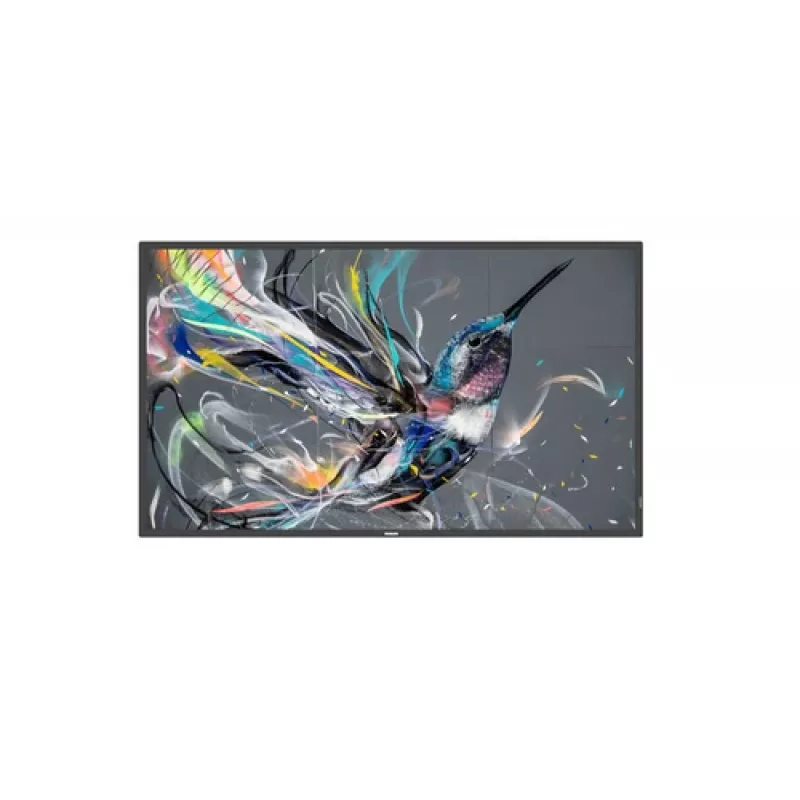

Philips 86BDL3511Q/00 Public Display Digital signage flat panel 2.18 m (86 inch) IPS 400 cd/m² 4K Ultra HD Black

The Philips 86BDL3511Q/00 is an 86" digital signage flat panel with IPS technology and 4K Ultra HD resolution (3840 x 2160). With a brightness of 400 cd/m², a typical contrast ratio of 1200:1 and built-in speakers, this display is designed for continuous public-facing use in retail, corporate and hospitality environments. It supports VESA mounting and includes an OPS slot for embedding a compatible PC or CRD50 module.

Advantages

This Philips 86" professional display offers reliable network management via CMND and Control for local LAN operation, FailOver to keep content playing when the primary source fails, and a built-in media player that schedules and plays USB content. The OPS slot enables a slot-in PC solution without external cabling, while IPS panel technology and 4K resolution provide wide viewing angles and sharp images suitable for large-format signage.

Suitable for

• Retail stores and window displays
• Corporate lobbies and meeting rooms
• Hospitality areas and waiting rooms
• Information kiosks and public venues

Key specifications

• Model: Philips 86BDL3511Q/00
• Display diagonal: 86"
• Resolution: 3840 x 2160 (4K Ultra HD)
• Panel type: IPS
• Brightness: 400 cd/m²
• Contrast ratio (typical): 1200:1
• Response time: 8 ms
• Pixel pitch: 0.493 x 0.493 mm
• VESA mounting: Yes
• Built-in speakers: Yes
• OPS slot: Yes (supports slot-in PC/CRD50 module)
• Energy class (SDR): G; Consumption: 355 kWh/1000h
• Colour: Black

How to use

Install the display using a VESA-compatible mount in the selected location, connect power and network via LAN for CMND and Control management, or use local inputs. To embed a PC or CRD50 module, insert it into the OPS slot and ensure the slot module is powered. To play scheduled content from USB, save video, audio or image files to a USB drive, insert it into the display and use the on-screen SmartPlayer menu to create playlists and set a playback schedule.

Recommendations

For continuous public operation, configure CMND and Control to monitor multiple displays centrally and set FailOver input lists to avoid blank screens. Use the OPS slot for secure, internal PC installation and preferred content sources, and schedule frequent content checks to keep playlists current.
