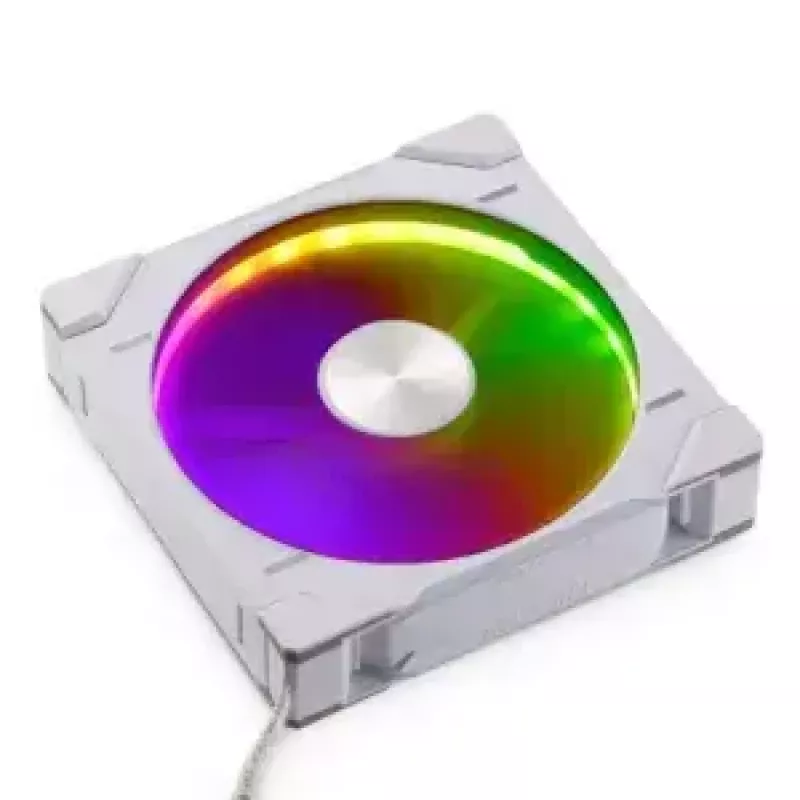

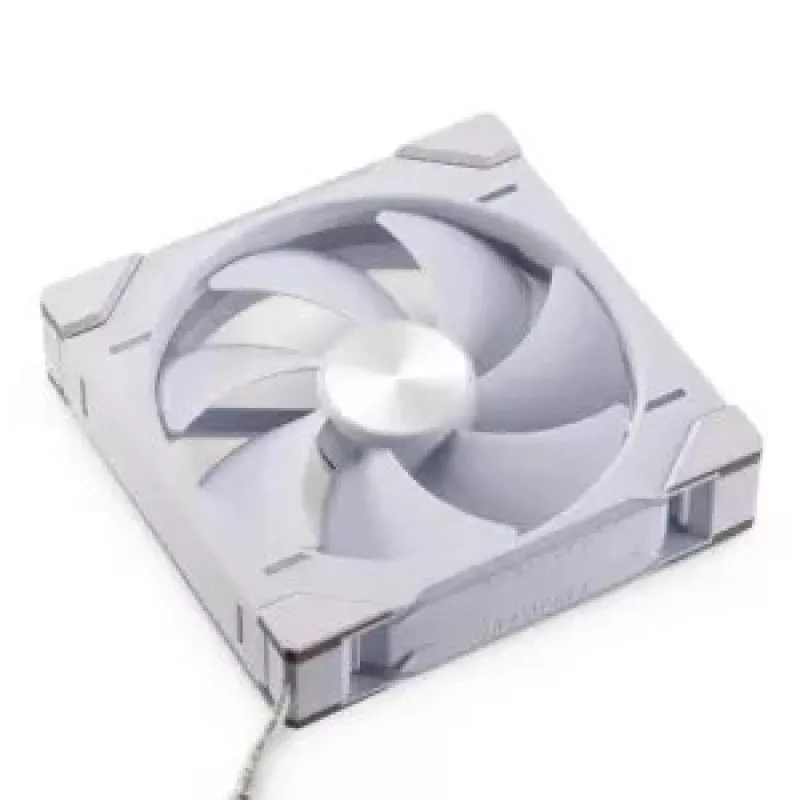

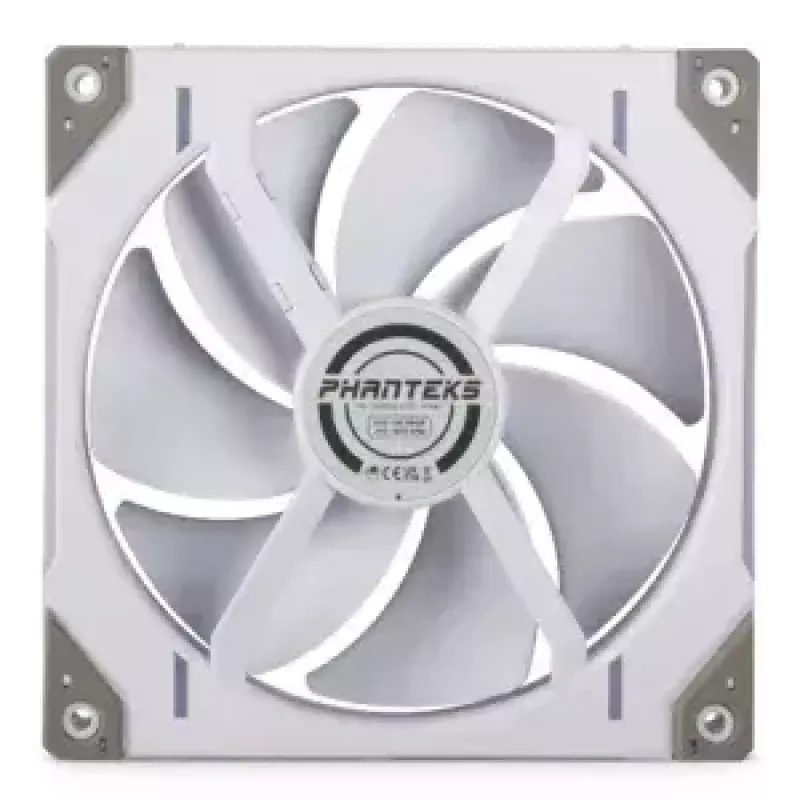

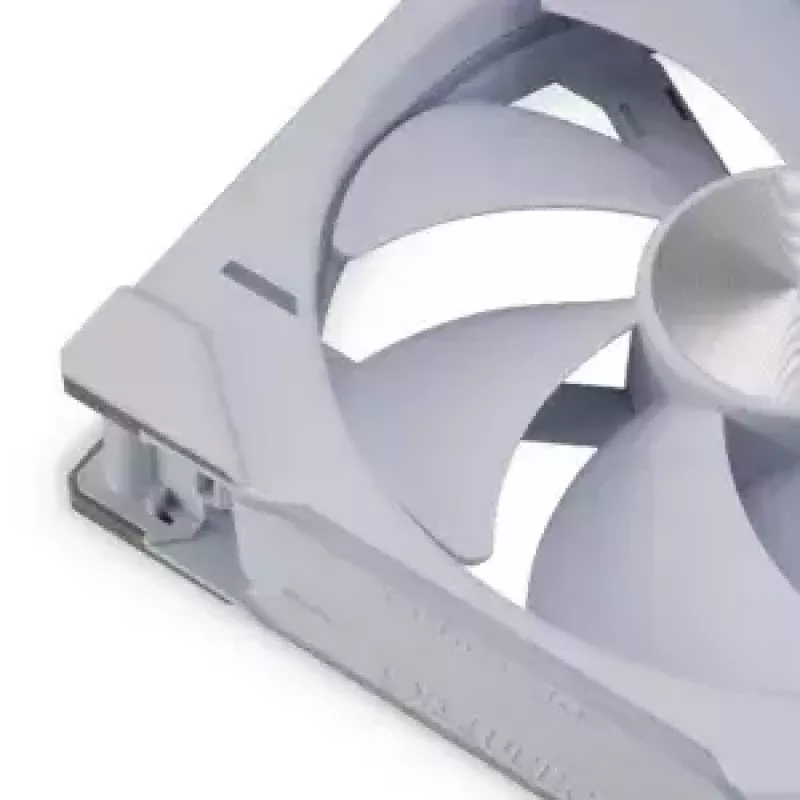

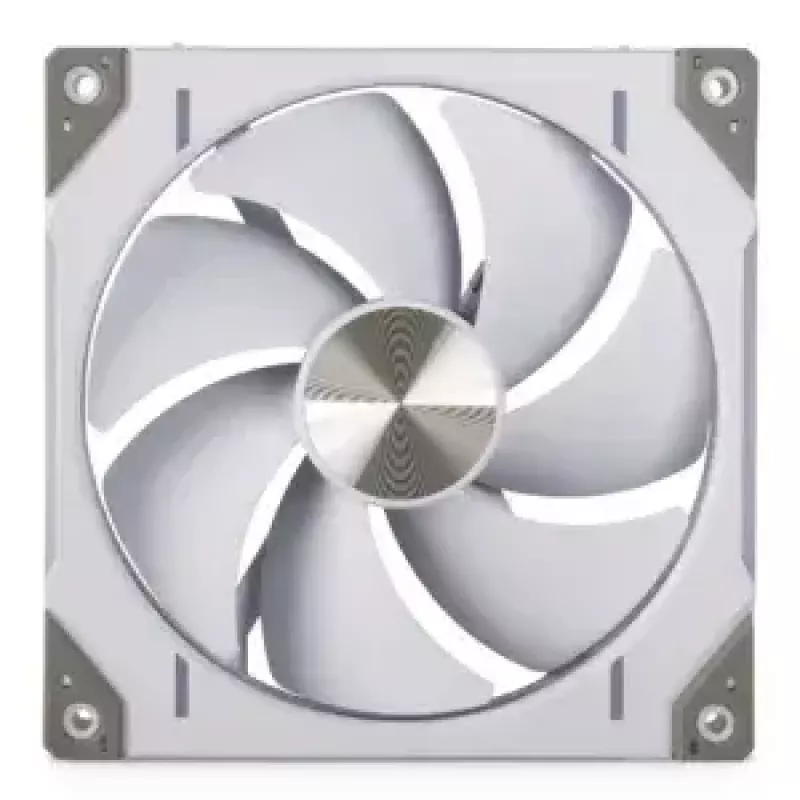

Fan Phanteks D30-140 14 cm Black 250-1800 RPM Fluid Dynamic Bearing

The Phanteks D30-140 is a 140 mm case fan with integrated D-RGB lighting, a fluid dynamic bearing and a speed range of 250–1800 RPM. It is 30 mm thick with aerodynamic blades and is available in regular and reverse airflow models to allow flexible fan orientation. The fan is compatible with Digital-RGB motherboards and Phanteks Digital-RGB accessories, and is designed to perform on radiators, mesh panels and dust filters.

Advantages

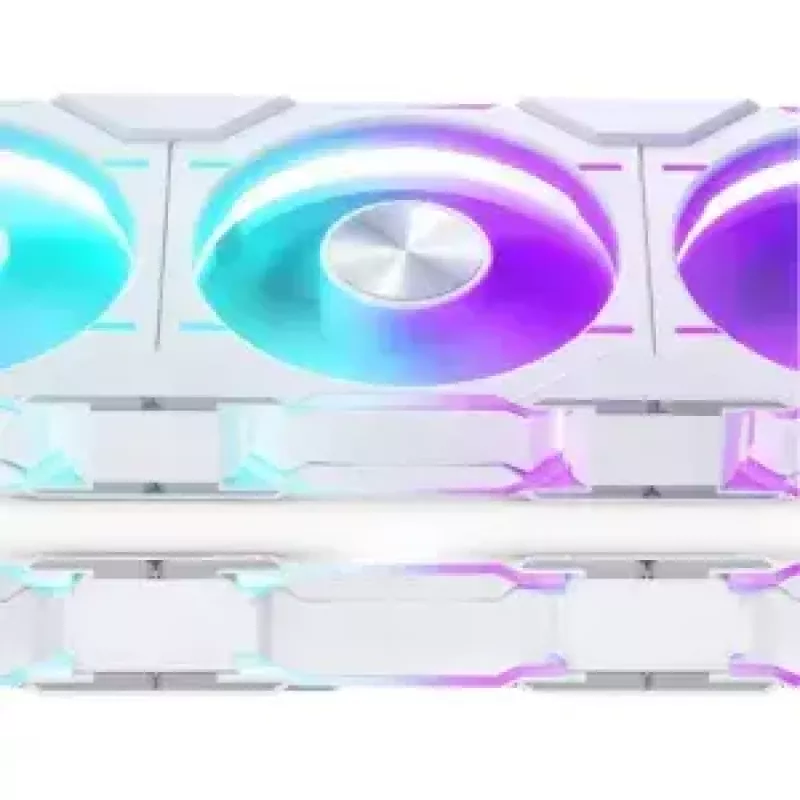

The D30-140 combines 30 mm thickness and aerodynamic blade geometry for improved noise-normalized performance, while the fluid dynamic bearing provides quieter operation and longer lifespan. Full-frame D-RGB lighting and reflective blades create even illumination visible from all sides. Bridge connectors and screw cover plates enable up to four fans to be linked and present a cleaner cable- and screw-free appearance. Standard PWM control allows direct speed management from the motherboard.

Suitable for

• Case cooling in desktop PCs
• Cooling on radiators for liquid-cooling setups
• High airflow needs with noise-conscious builds
• Systems where aesthetic D-RGB lighting and clean cable routing are desired

Key specifications

• Fan diameter: 140 mm
• Thickness: 30 mm
• Speed: 250–1800 RPM
• Bearing: Fluid Dynamic Bearing (FDB)
• Max static pressure: 3.32 mmH2O
• Operating voltage: 5–13.2 V
• Colour: Black
• Lighting: Integrated Digital-RGB (D-RGB), compatible with Digital-RGB motherboards

How to use

Choose the regular or reversed airflow model depending on the required airflow direction (regular: front-to-rear; reversed: rear-to-front). Mount the fan to the case or radiator using the supplied screws, and connect the PWM cable to the motherboard fan header for speed control. Connect the Digital-RGB cable to a compatible D-RGB header or Phanteks controller to enable lighting. Use the bridge connectors to link up to four D30 fans and install screw cover plates to conceal mounting screws for a cleaner look.

Recommendations

For optimal cooling and noise balance, use the D30-140 on radiators or behind mesh filters and control fan speed with motherboard PWM profiles. Combine regular and reverse models when needed to achieve both airflow direction and a uniform exterior appearance.
