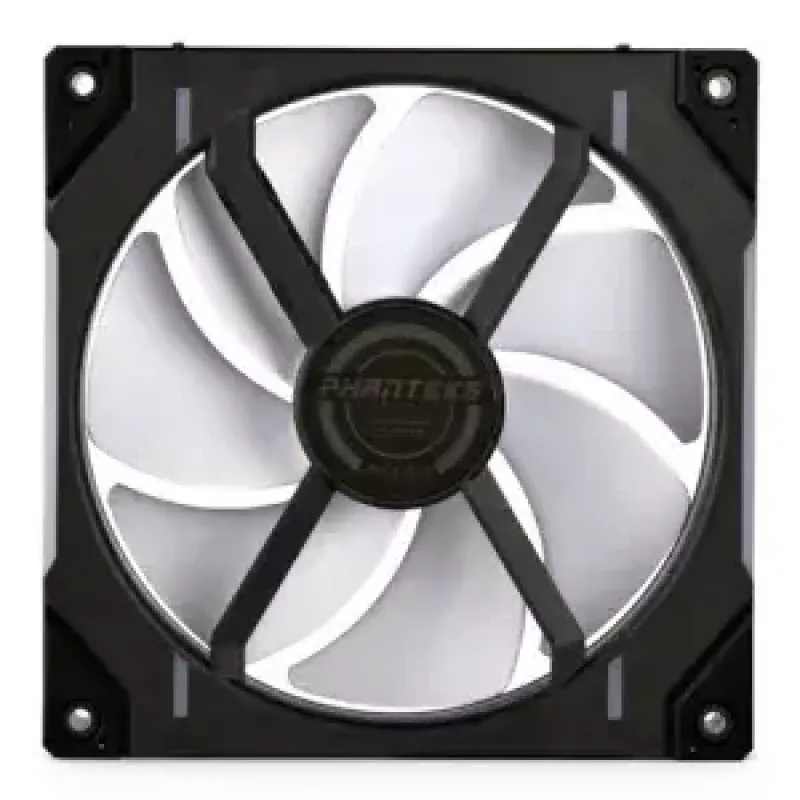

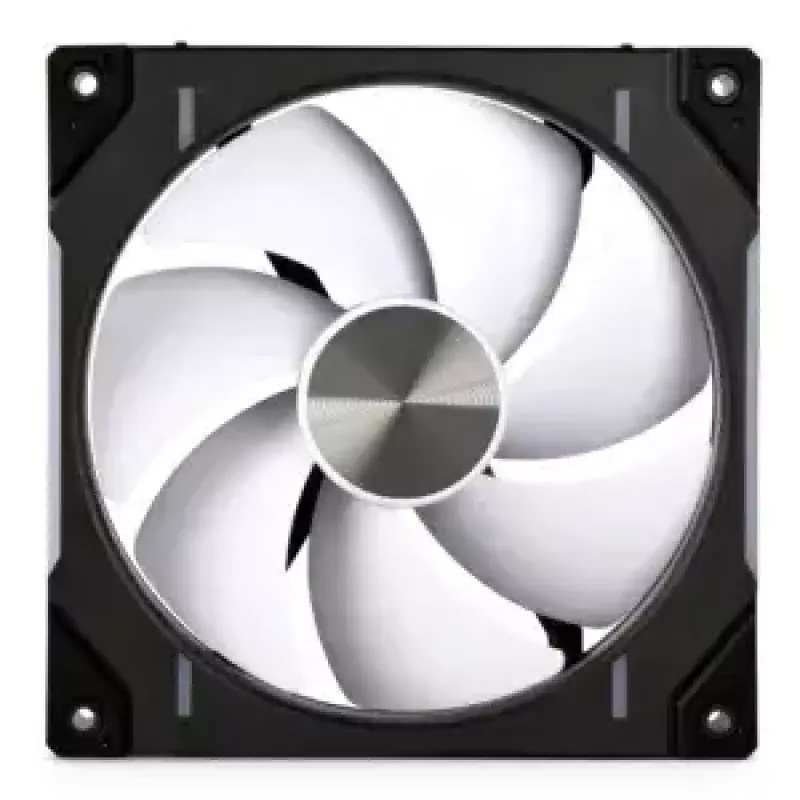

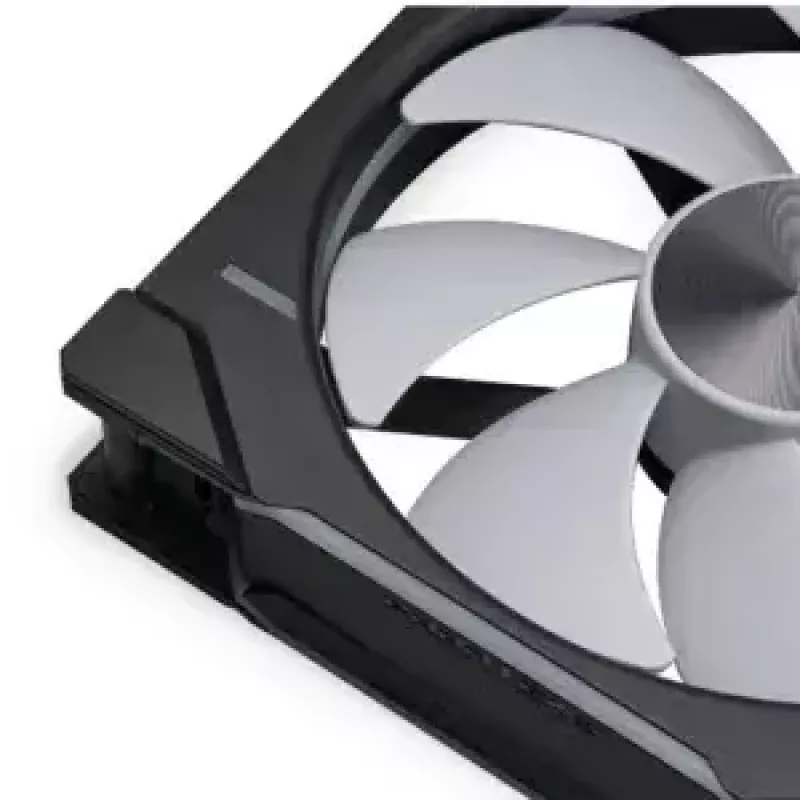

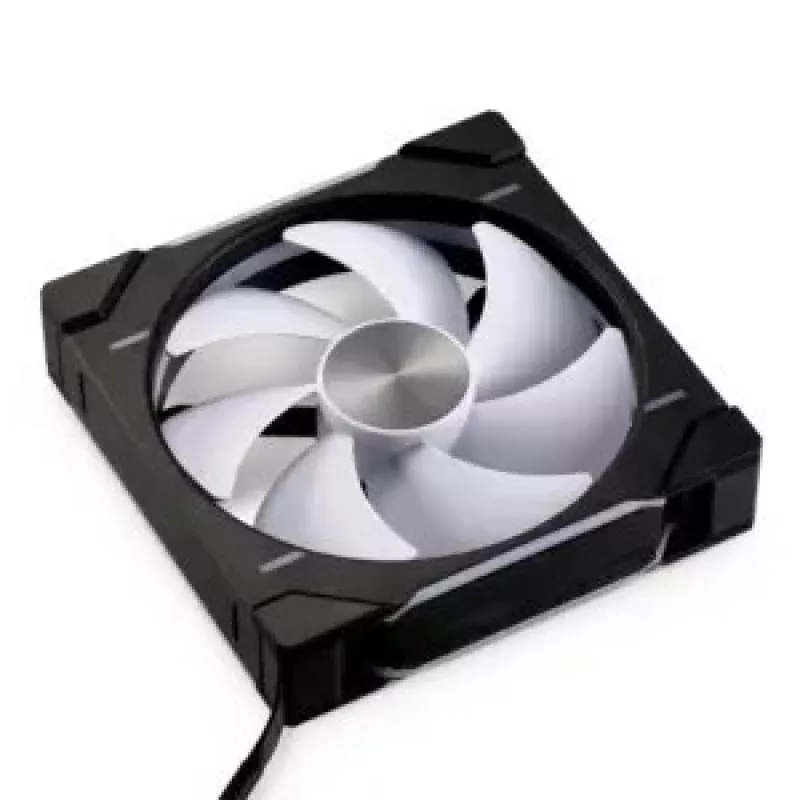

Fan Phanteks D30-140 14 cm Black 250-1800 RPM 29.5 dB

The Phanteks D30-140 is a 140 mm case fan with 30 mm thickness, designed for system cooling and radiator use. It features integrated D-RGB lighting visible from all sides, aerodynamic 30 mm blades derived from the T30 design, and is available in regular and reversed airflow models to allow flexible installation and a clean visual layout. The fan supports PWM control and is compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.

Advantages

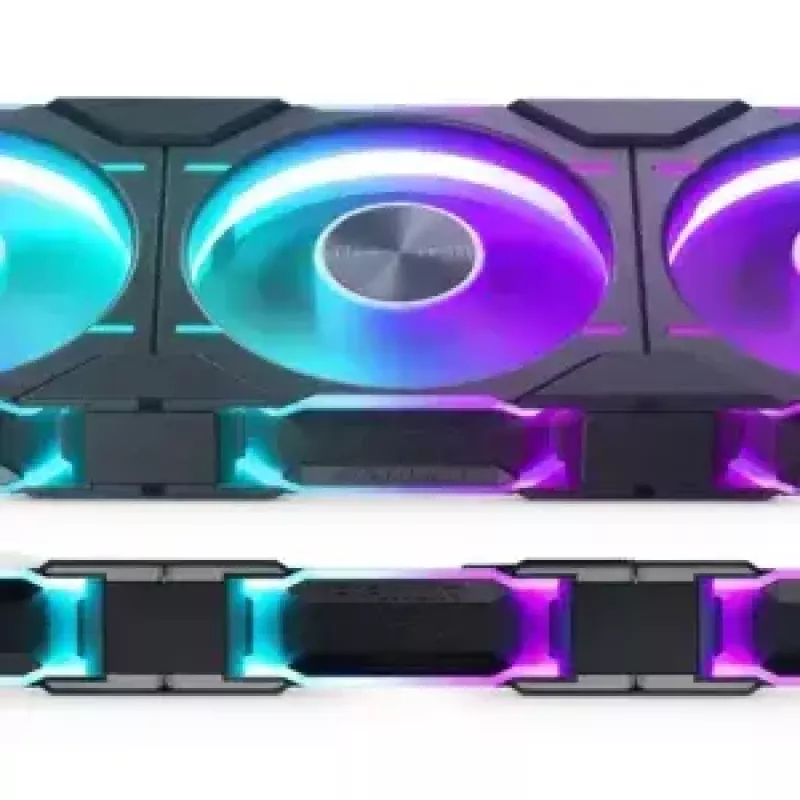

The fan combines a thick 30 mm frame and aerodynamic blades for improved noise-normalized performance, delivering up to 71.93 CFM while maintaining a maximum noise level of 29.5 dB. Integrated D-RGB lighting and reflective blades provide uniform lighting effects from all sides. Bridge connectors and screw cover plates enable linking up to four fans and hiding screws for a tidy build. Standard PWM control and a Fluid Dynamic Bearing add reliable speed control and long-term durability.

Suitable for

• Case cooling in mid-tower and full-tower systems
• Radiator cooling for AIO liquid coolers and custom loops
• Front or top panel intake/exhaust with regular or reversed airflow models
• RGB-focused builds requiring multi-fan lighting synchronization

Key specifications

• Fan diameter: 140 mm (dimensions 140 x 30 mm)
• Speed range: 250–1800 RPM (PWM)
• Maximum airflow: 71.93 CFM
• Noise level (max): 29.5 dB
• Bearing: Fluid Dynamic Bearing
• Voltage range: 5–13.2 V

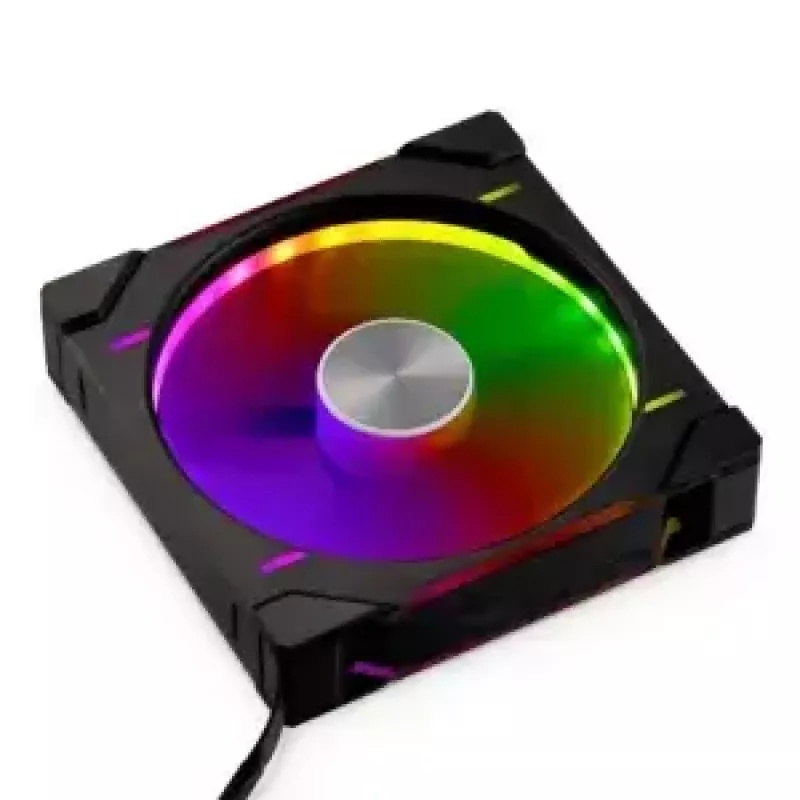

• Lighting: Integrated Digital-RGB (D-RGB), visible from all sides
• Models: Regular (front-to-rear) and Reversed (rear-to-front)
• Colour: Black

How to use

Select the regular or reversed model depending on the desired airflow direction and mount the fan to the case or radiator using the supplied screws. Connect the PWM power cable to a motherboard fan header for automatic speed control. Attach the Digital-RGB connector to a compatible Digital-RGB header or Phanteks controller to enable lighting control and synchronization. Use the bridge connectors and screw cover plates when installing multiple D30-140 fans to reduce cable clutter and achieve a clean appearance.

Recommendations

For optimal thermal performance on radiators and mesh panels, place the D30-140 so the airflow direction matches your system's intake/exhaust plan; combine regular and reversed models if needed to maintain a consistent visual orientation while achieving desired airflow. Ensure the motherboard or controller provides Digital-RGB support for full lighting functionality.
