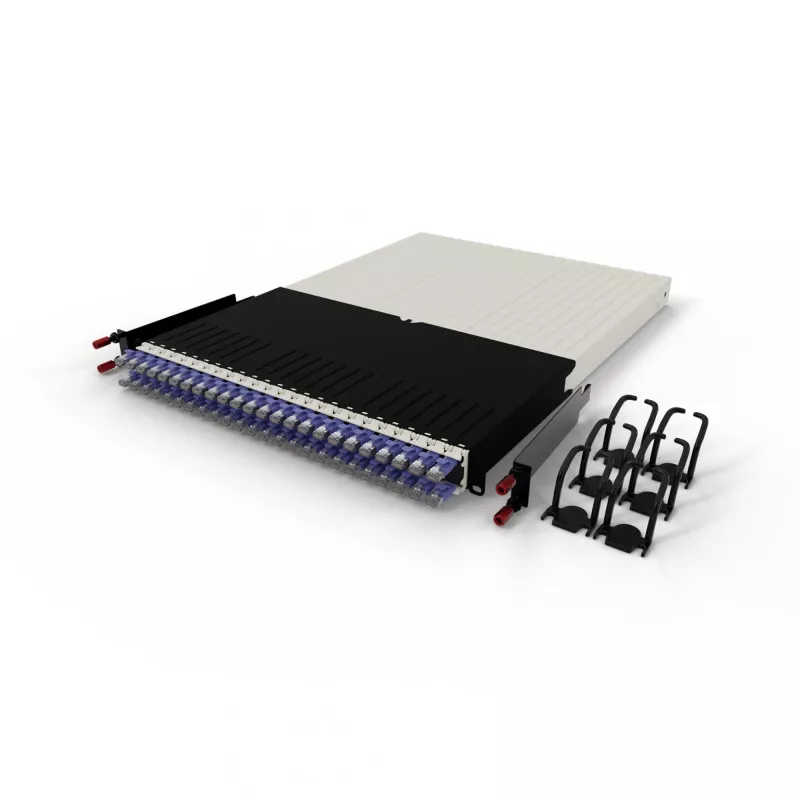

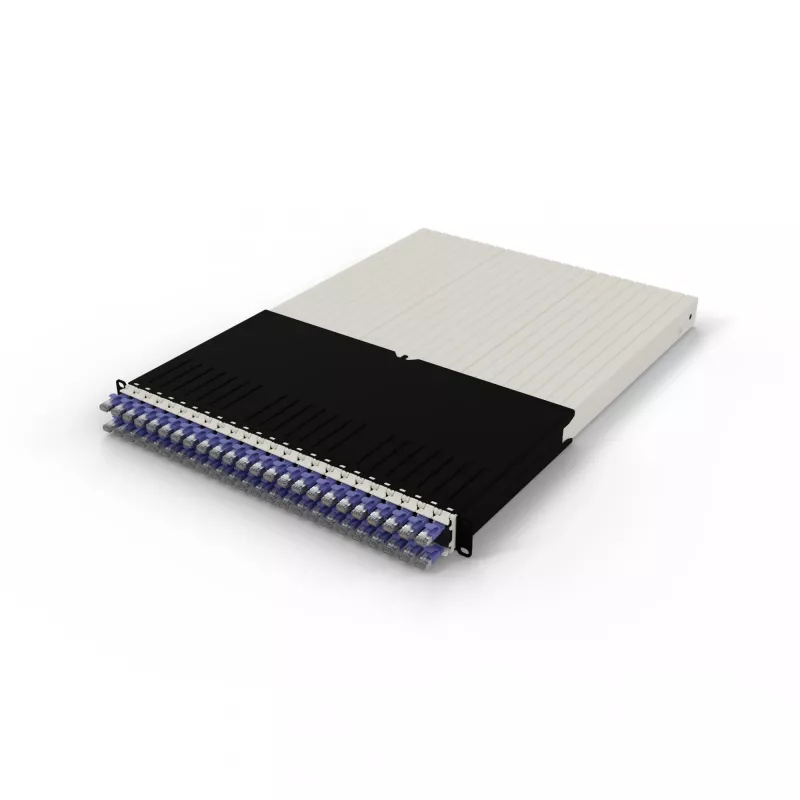

PATCHBOX patchbox.one 30RU STP Violet Cat.6a Retractable Patch Cable System, 1.8m, 24 Cassettes, RJ45, 10G, PoE++

Forget wrestling with cable slack in crowded racks. The PATCHBOX patchbox.one 30RU STP Violet replaces conventional patch leads with a modular retractable system: 24 pre-terminated Cat.6a cables, each 1.8 m long, coil neatly inside cassettes that mount in seconds. Pull only the length you need—no measuring, no cutting, no zip ties. The violet jacket gives instant visual coding for VLANs, uplinks, or security zones.

Highlights

• Retractable Cat.6a S/FTP cables, 1.8 m each, stored in 24 cassettes
• Supports 10 Gigabit Ethernet and PoE/PoE+/PoE++ (up to 90 W)
• Violet LSZH jacket for colour-coded rack management
• Fits 30RU enclosures; frees up to 50% more rack space
• Tool-less cassette replacement and rearrangement
• 10-year warranty on system and cables

In daily use

Install the patchbox.one in a 30RU cabinet and connect servers, switches, or patch panels in a fraction of the usual time. Each cable extends smoothly and locks at your chosen length; a gentle tug retracts it back into the cassette. The snagless RJ45 boots protect clips during frequent moves, while the stranded copper conductors withstand repeated flexing. Because excess cable lives inside the cassette, airflow improves and dust traps disappear. When your topology changes, simply swap cassettes—no re-cabling from scratch.

Full specifications

• Brand: PATCHBOX
• Model: patchbox.one 30RU STP Violet
• MPN: PONE30STPVI
• EAN: 4262427630789
• Cable type: Cat.6a S/FTP (Screened Foiled Twisted Pair)
• Length per cable: 1.8 m (6 ft)
• Connectors: RJ45 male to RJ45 male, snagless, T568B
• Data rate: 10 Gbps Ethernet
• Bandwidth: 500 MHz
• Conductor: Stranded copper, AWG 26/7
• Jacket: LSZH (Low Smoke Zero Halogen), violet
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Compliance: RoHS, TIA/EIA-568-C.2, ISO/IEC 11801 Class Ea
• Cassettes included: 24
• Rack height: 30RU

Final note

One system replaces dozens of individual patch cords. With the PATCHBOX patchbox.one, your rack stays organised, your team works faster, and your infrastructure is ready for 10G and high-power PoE today.
