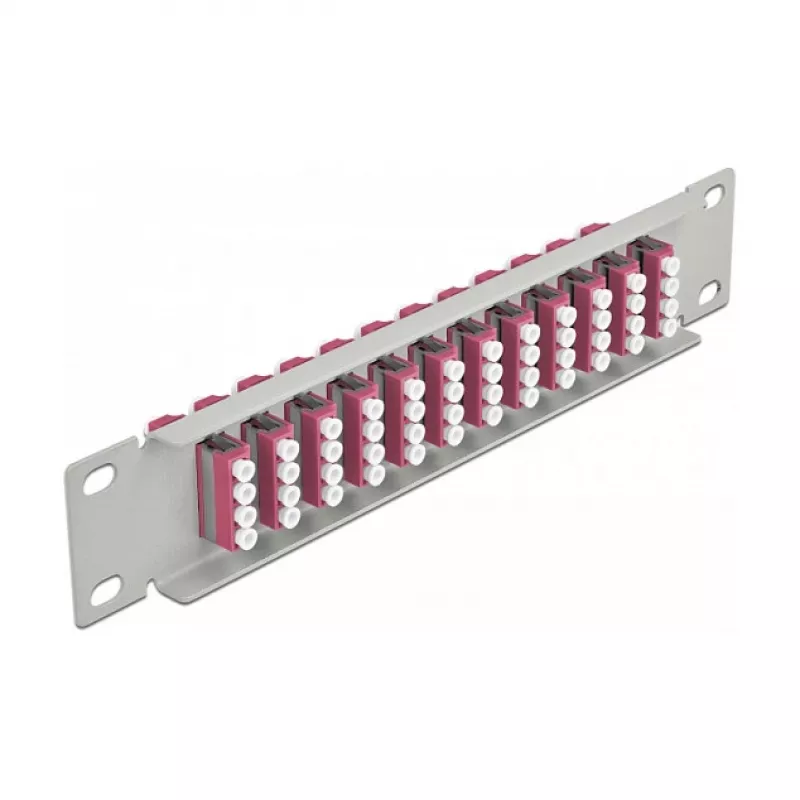

Patch Panel DeLOCK 66800

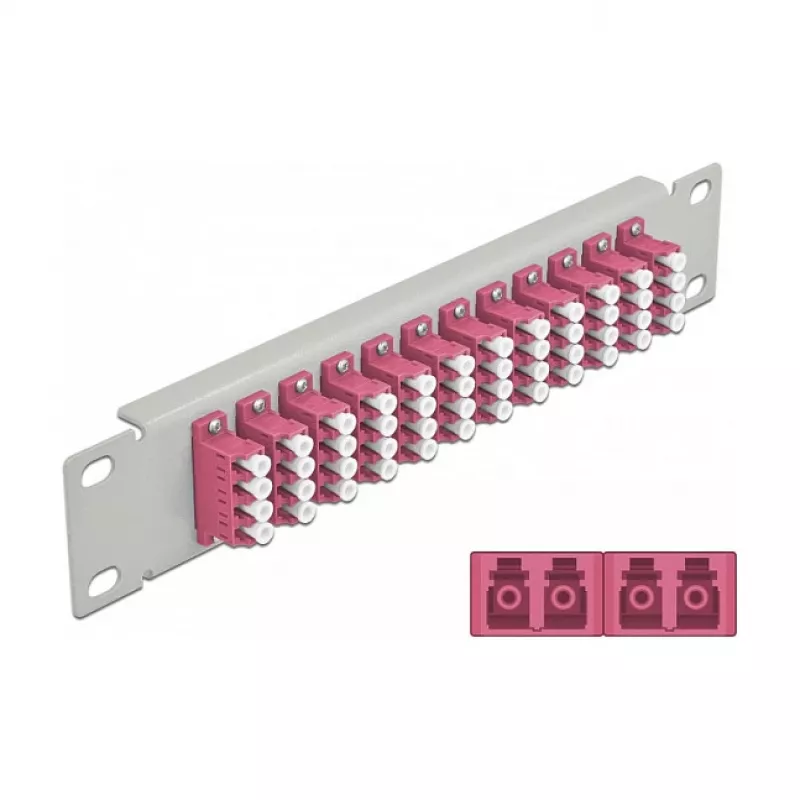

The DeLOCK 66800 patch panel is a 10" rack-mounted unit designed for organized fiber management. It houses twelve LC Quad fiber optic couplers and accepts LC-style fiber connectors. Constructed from durable metal, the compact panel measures 44 mm (width) × 10 mm (height) × 254 mm (depth) and is available in grey and violet finishes.

Advantages

The patch panel provides twelve LC Quad couplers for high-density fiber connections in a single 10" module. Its metal construction ensures mechanical stability and long-term durability, while the compact dimensions save rack space. The use of LC Quad couplers allows simple and reliable mating of LC fiber connectors.

Suitable for

• Rack-mounted fiber distribution in 10" network cabinets
• High-density LC connector terminations and cross-connects
• Data centers, telecommunication closets and server rooms

Key specifications

• Manufacturer: DELOCK
• Model: 66800
• Ports quantity: 12 (LC Quad couplers)
• Form factor: 10" rack-mount
• Material: Metal
• Dimensions (W × H × D): 44 × 10 × 254 mm
• Product colours: Grey, Violet
• MPN: 66800
• EAN: 4043619668007

How to use

Install the panel into a compatible 10" network cabinet or rack using appropriate mounting hardware. Terminate fiber patch cables with LC connectors into the LC Quad couplers on the front of the panel. Ensure proper fiber handling and routing to avoid sharp bends or strain; secure cables with cable management accessories as required.

Recommendations

For reliable performance, verify that connected LC fiber connectors are clean and undamaged before mating. Maintain bend radii according to fiber manufacturer specifications and use dust caps when ports are not in use.
