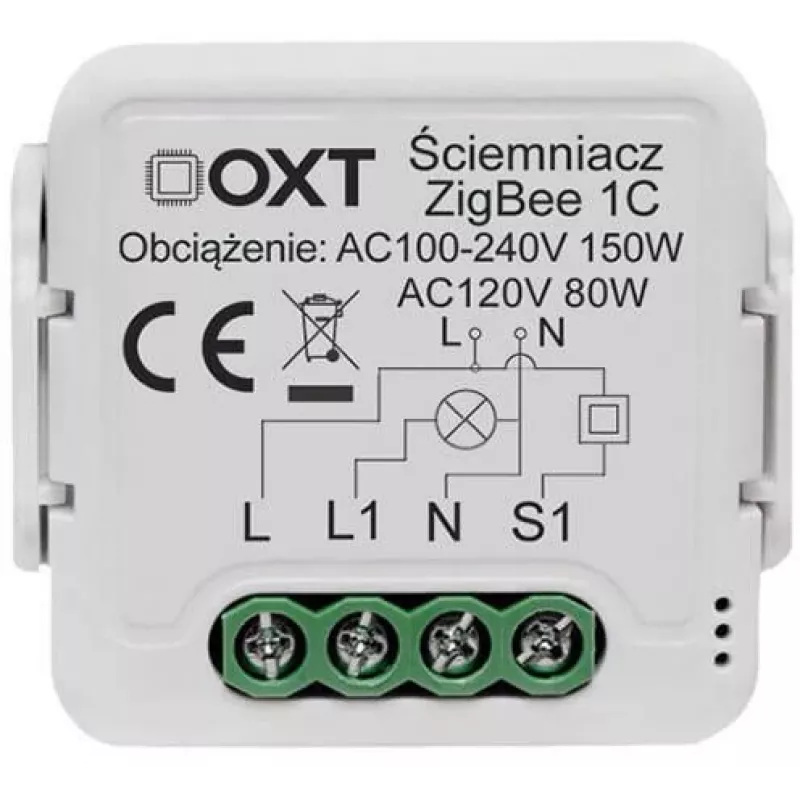

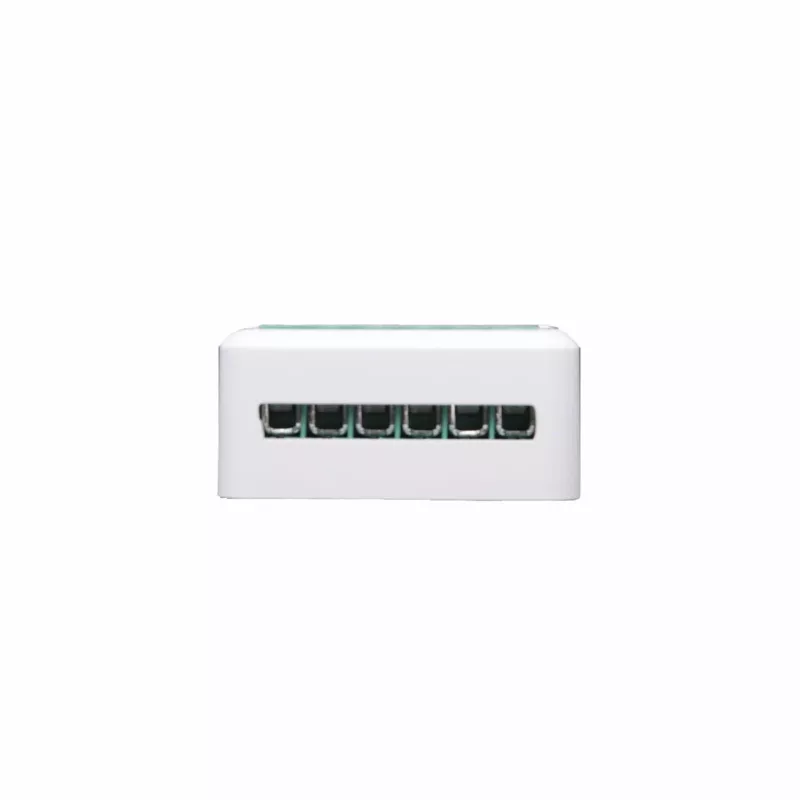

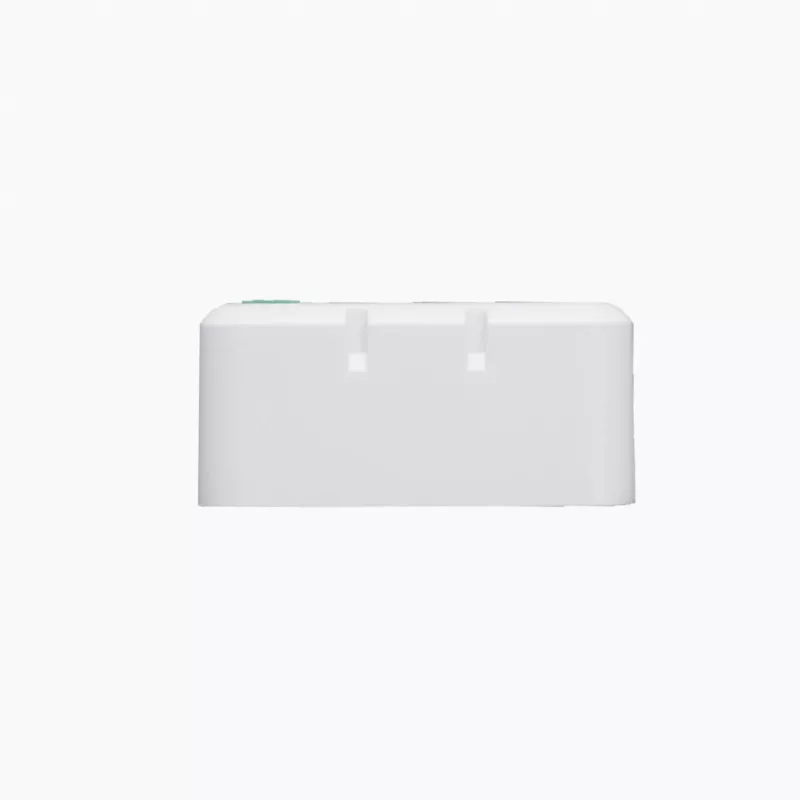

OXT Mini Dimmer Module 1 Circuit ZigBee TUYA T265

The OXT T265 Mini Dimmer Module is a compact, single-circuit ZigBee 3.0 dimmer designed for seamless integration with the TUYA Smart Life ecosystem. It enables smooth 0-100% dimming for LED and incandescent/halogen lighting, supporting both leading and trailing edge phase-cut control. Ideal for smart home automation, this module requires a neutral wire and offers overload, short circuit, and over-temperature protection for reliable operation.

Advantages

Universal phase-cut dimming compatibility, compact size for easy installation behind switches or in junction boxes, and robust safety protections. Works with popular voice assistants via a compatible ZigBee hub.

Suitable for

• Residential and commercial smart lighting control
• Retrofitting existing lighting circuits with smart dimming
• Integration with TUYA-based smart home systems

Key specifications

• Wireless Protocol: ZigBee 3.0
• Smart Home Platform: TUYA Smart Life
• Input Voltage: AC 100-240V, 50/60Hz
• Max Load (LED): 150W
• Max Load (Incandescent/Halogen): 300W
• Number of Channels: 1
• Dimming Type: Universal Phase-Cut (Leading/Trailing Edge)

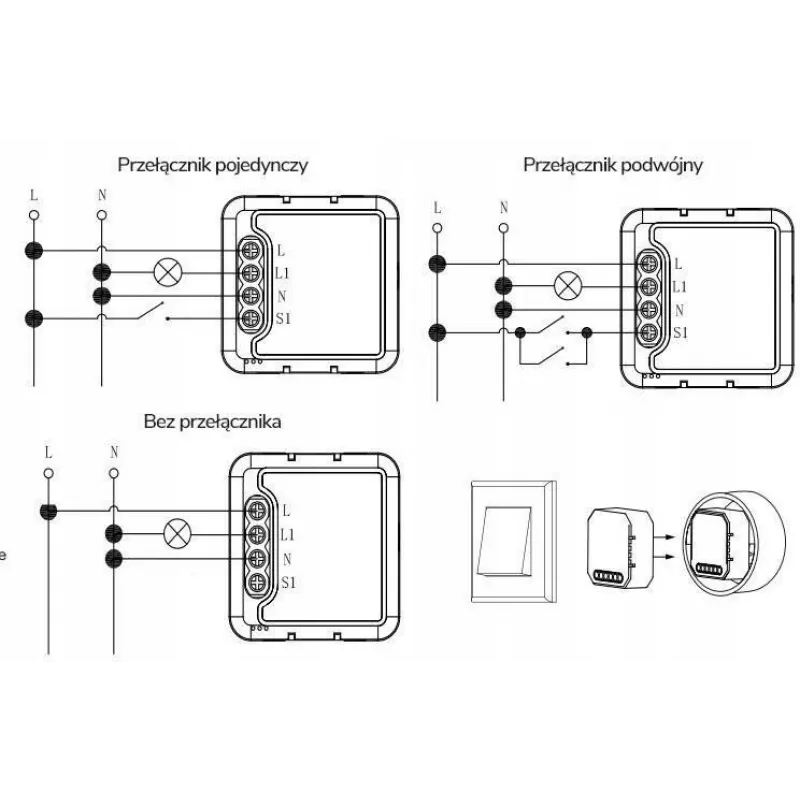

• Neutral Wire Required: Yes
• Control Methods: App Control, Voice Control (via compatible hub), Push Button Switch
• Dimming Range: 0-100%
• Operating Temperature: -10°C to 40°C
• Housing Material: PC V0 Fireproof
• Certifications: CE, RoHS
• Standby Power Consumption: <0.5W

Recommendations

Ensure a neutral wire is present at the installation point. For voice control, pair with a compatible ZigBee 3.0 gateway or hub that supports TUYA Smart Life. Professional installation recommended.
