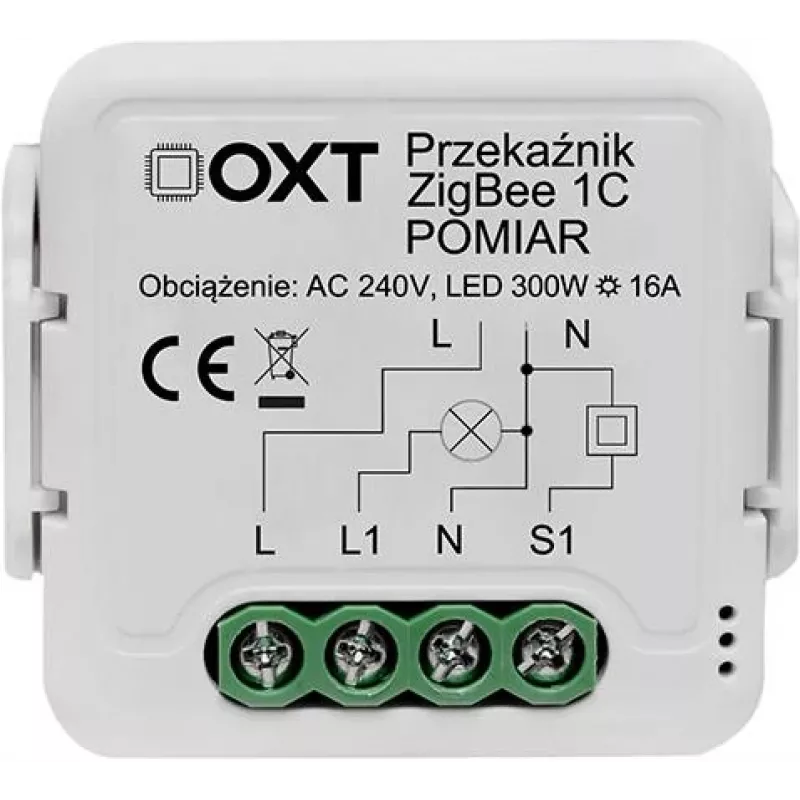

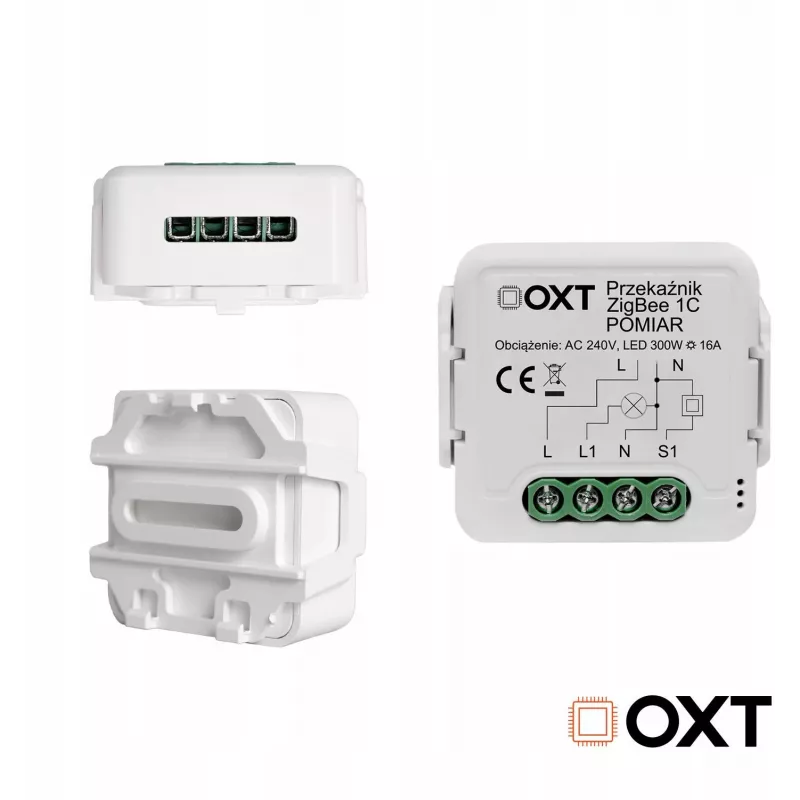

OXT T260P 1-Channel 16A Smart Relay Module with Power Monitoring, ZigBee 3.0, Tuya Compatible

The OXT T260P is a compact 1-channel smart relay module designed for in-wall or junction box installation. It supports ZigBee 3.0 wireless protocol and integrates seamlessly with the Tuya Smart / Smart Life platform, enabling remote control, voice control (via compatible hub), and power monitoring. Rated for 16A max load current and AC 100-240V input, it is ideal for automating lighting, appliances, and other electrical devices.

Advantages

Easy to install behind existing switches or in junction boxes, the T260P offers real-time power monitoring, timer and schedule functions, and scene control. Its fire-retardant PC V0 housing ensures safety, while low standby power consumption (<0.5W) contributes to energy efficiency.

Suitable for

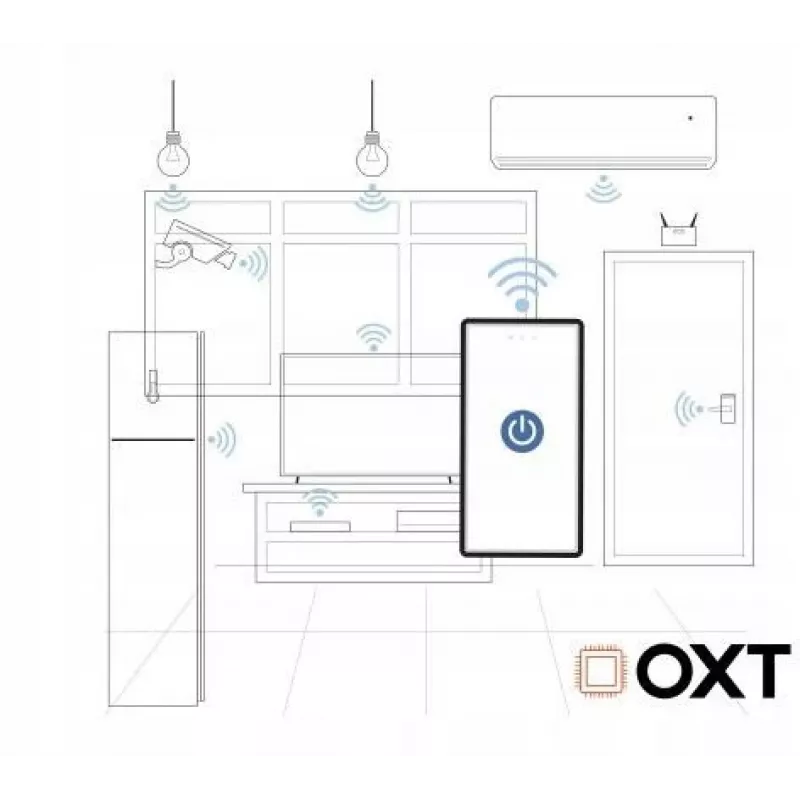

• Home automation: control lights, fans, heaters, and other appliances remotely
• Energy management: monitor power consumption of individual circuits
• Smart building integration: works with Tuya-compatible gateways and voice assistants

Key specifications

• Device Type: Smart Relay Module
• Number of Channels: 1
• Max Load Current: 16A
• Power Monitoring: Yes
• Wireless Protocol: ZigBee 3.0
• Smart Home Platform: Tuya Smart / Smart Life
• Input Voltage: AC 100-240V, 50/60Hz
• Standby Power Consumption: <0.5W
• Installation Type: In-wall / Behind Switch / Junction Box
• Material: PC V0 (Fire-retardant)
• Operating Temperature: -10°C to 40°C
• Operating Humidity: 0% - 95% RH (Non-condensing)
• Control Methods: App, Voice Control (via compatible hub), Manual Switch
• Required Hub: ZigBee Gateway/Hub
• Certifications: CE, RoHS
• Additional Features: Timer, Schedule, Scene Control

Recommendations

For optimal performance, pair the T260P with a ZigBee 3.0 compatible gateway (e.g., Tuya ZigBee Hub). Ensure the module is installed by a qualified electrician and used within its rated specifications. Compatible with Amazon Alexa and Google Assistant for voice control.
