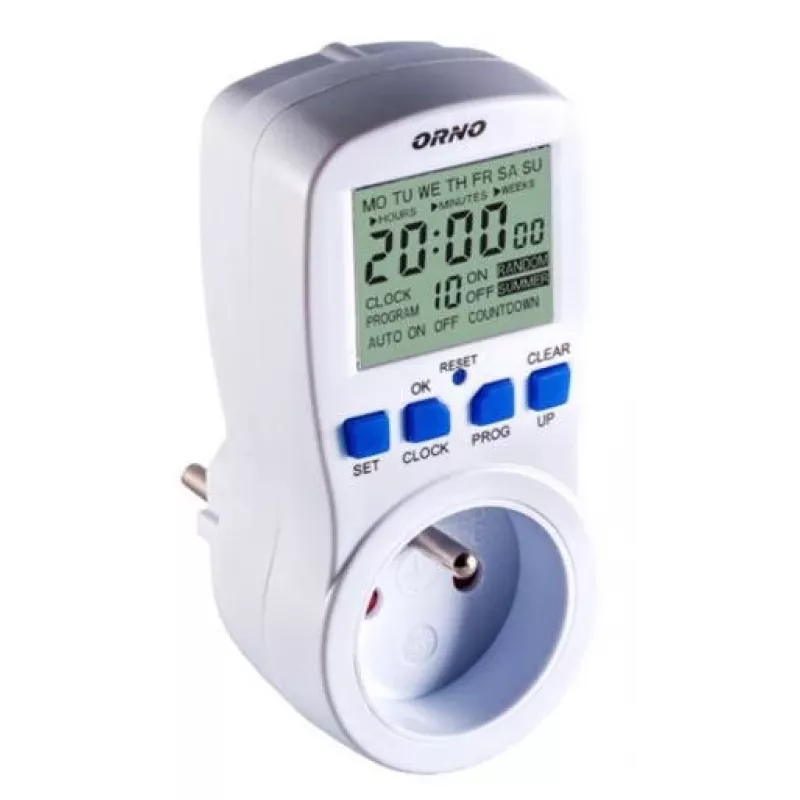

ORNO OR-PRE-409 Digital Weekly Programmable Timer, 230V, 16A, 10 Programs, LCD Display, Countdown

The ORNO OR-PRE-409 is a versatile digital weekly programmable timer designed for precise control of electrical devices. With its intuitive interface and comprehensive programming options, it offers reliable automation for home and office applications. This plug-in timer features a clear LCD display and supports up to 10 ON/OFF programs with 16 day combinations, making it ideal for managing lighting, heating, and other appliances.

Advantages

Easy to program with manual ON/OFF and automatic modes. Built-in NiMH rechargeable battery ensures memory backup during power outages. Countdown function up to 99 hours 59 minutes. Random mode for security simulation. Summer/winter time automatic adjustment. Compact design fits standard sockets.

Suitable for

• Automating home lighting and appliances
• Energy saving by scheduling devices
• Security simulation with random on/off
• Controlling heating systems, pumps, and fans

Key specifications

• Timer Type: Digital Weekly
• Power Supply: 230V AC, 50Hz
• Max Load: 3680W (resistive)
• Max Current: 16A
• Number of Programs: 10
• Minimum Setting Time: 1 minute
• Day Combinations: 16
• Operating Modes: Manual ON/OFF, Automatic
• Display: LCD
• Memory Backup: Built-in NiMH battery
• Accuracy: ±1 minute per month
• Special Functions: Random, Countdown, Summer/Winter Time
• Countdown Range: Up to 99h 59min
• Protection Rating: IP20
• Operating Temperature: -10°C to +40°C
• Mounting: Plug-in (socket)

Recommendations

For best performance, use with resistive loads up to 3680W. Ensure the socket is easily accessible. The built-in battery maintains settings for several hours during power failure. Suitable for indoor use only.
