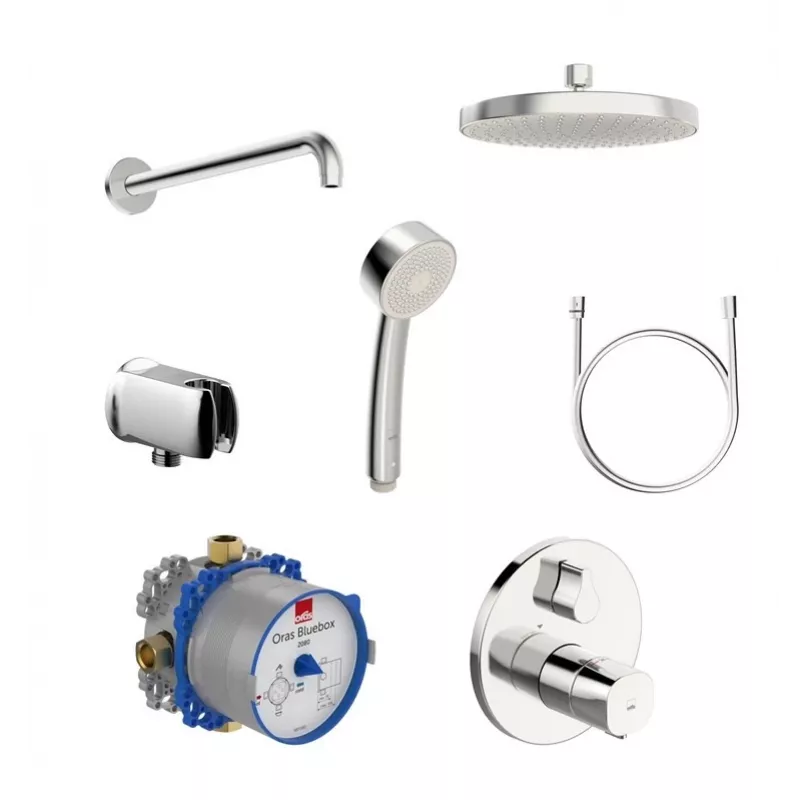

Oras Concealed Installation Unit 2090 for Shower and Bath Mixers

The Oras Concealed Installation Unit 2090 is a high-quality concealed installation system designed for shower and bath/shower mixers. This unit provides a reliable and durable foundation for your Oras trim sets, ensuring a clean and modern look in any bathroom. Manufactured from DZR brass with a plastic protection box, it offers excellent corrosion resistance and easy installation.

Advantages

This concealed unit features reversible connections for flexible installation, sound insulation for quiet operation, and a protection box that simplifies mounting in both lightweight and solid walls. With a minimum installation depth of 75 mm and maximum of 105 mm, it fits a wide range of wall constructions.

Suitable for

• Oras Safira, Nova, Optima, Cubista, and other compatible trim sets
• Shower and bath/shower mixer applications
• Wall-mounted concealed installations

Key specifications

• Product Type: Concealed Installation Unit
• Material: DZR Brass body, Plastic protection box
• Water Connections: G1/2 (DN15)
• Number of Water Inlets: 2 (Hot, Cold)
• Number of Water Outlets: 2 (Configurable for Shower/Bath)
• Operating Pressure: 100 - 1000 kPa (1.0 - 10.0 bar)
• Max Hot Water Temperature: +80°C
• Sound Class: I (ISO 3822)
• Installation Depth: 75 - 105 mm

Recommendations

For optimal performance, pair this concealed unit with Oras trim sets and ensure proper installation by a qualified professional. Always follow local plumbing codes and manufacturer guidelines.
