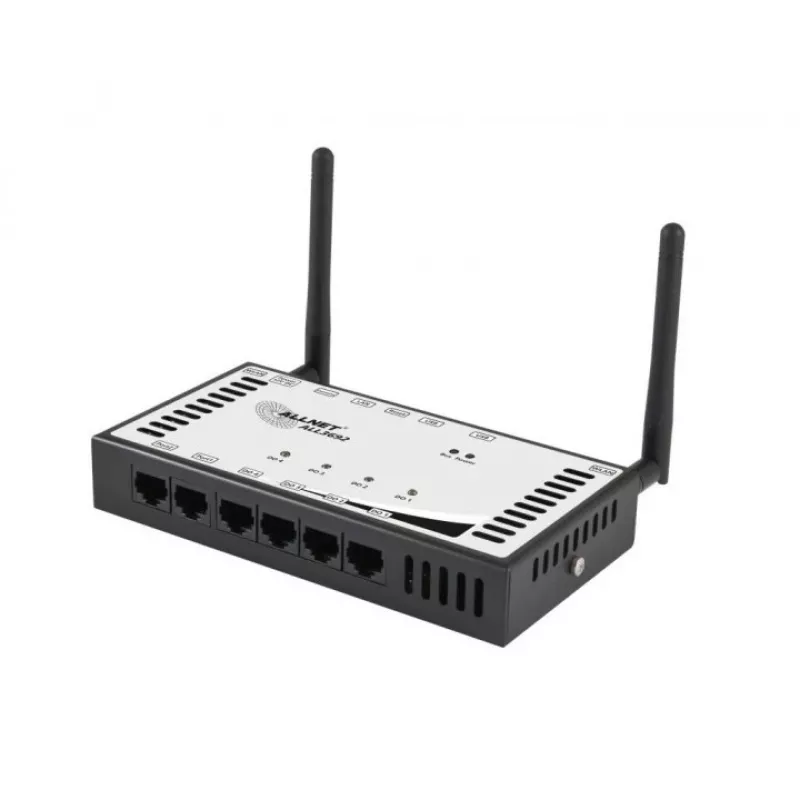

Optical Power Meter ALLNET ALL3692

The ALLNET ALL3692 Optical Power Meter is a compact network-enabled device for monitoring and recording power meter readings via D0 optical outputs. Designed as the successor to the ALL369x Power Meter series, the ALL3692 collects calibrated measurements from D0 meters with optical read heads and presents detailed consumption data through an integrated web server and wireless or wired network interfaces. Its functions include live charts, table displays, CSV export and alerting when preset thresholds are exceeded.

Advantages

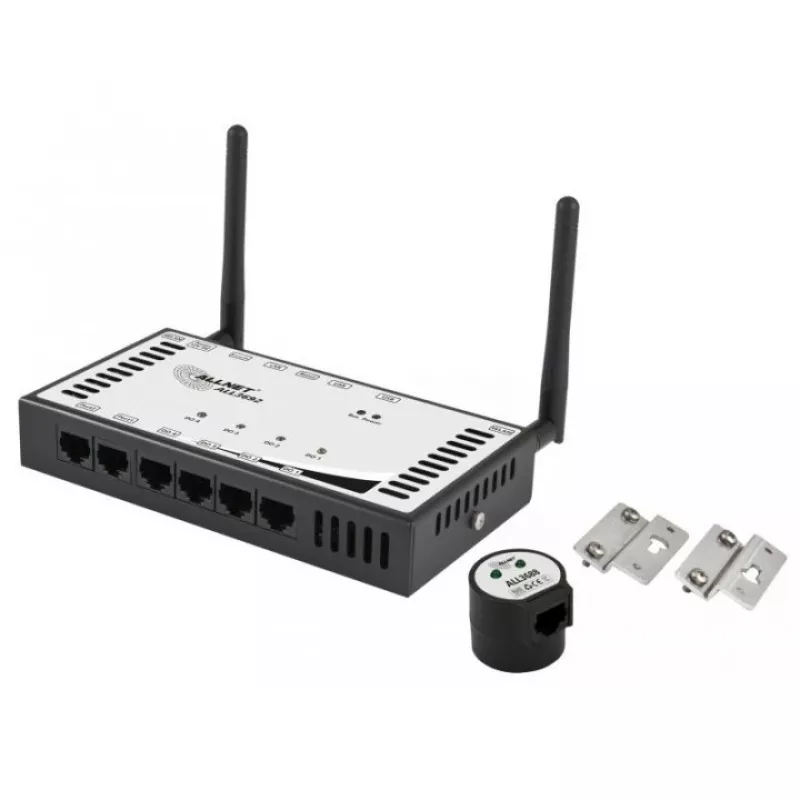

The ALL3692 supports four D0 inputs for connecting optical read heads (such as ALL3688 or ALL3689) without altering household wiring, and provides both 300 Mbit wireless and 1x wired network connectivity. An integrated web interface simplifies installation and operation, while features like email notifications, data export in CSV format and live visualizations allow centralized monitoring and historical analysis of power consumption. The device is compact and complies with CE and RoHS standards.

Suitable for

• Remote monitoring of multiple D0 optical power meters in residential or small commercial sites
• Collecting and exporting calibrated consumption data for analysis or billing
• Setting alerts for threshold-based energy monitoring

Key specifications

• Model: ALLNET ALL3692
• Inputs: 4 x D0 ports (for optical read heads ALL3688 / ALL3689)
• Network: 1 x wired Ethernet, 300 Mbit wireless
• Additional interfaces: 2 x I2C sensor/port, 2 x external USB ports
• Features: integrated web server, live charts, table view, CSV download, email alerting
• Certifications: CE, RoHS
• Dimensions: 155 mm x 28 mm x 26 mm

How to use

Connect up to four D0 optical read heads (ALL3688 or ALL3689) to the ALL3692 D0 ports and attach the read heads to the corresponding power meters. Provide network access via the wired Ethernet port or the 300 Mbit wireless interface. Access the integrated web server from any browser on the same network (or remotely if the device location has Internet access) to view live charts, tables and historical data. Configure email alerts and export measurements as CSV for further processing.

Recommendations

Install the optical read heads without modifying household wiring; ensure the ALL3692 has stable network access for remote monitoring and regular backups of exported CSV data for record-keeping.
