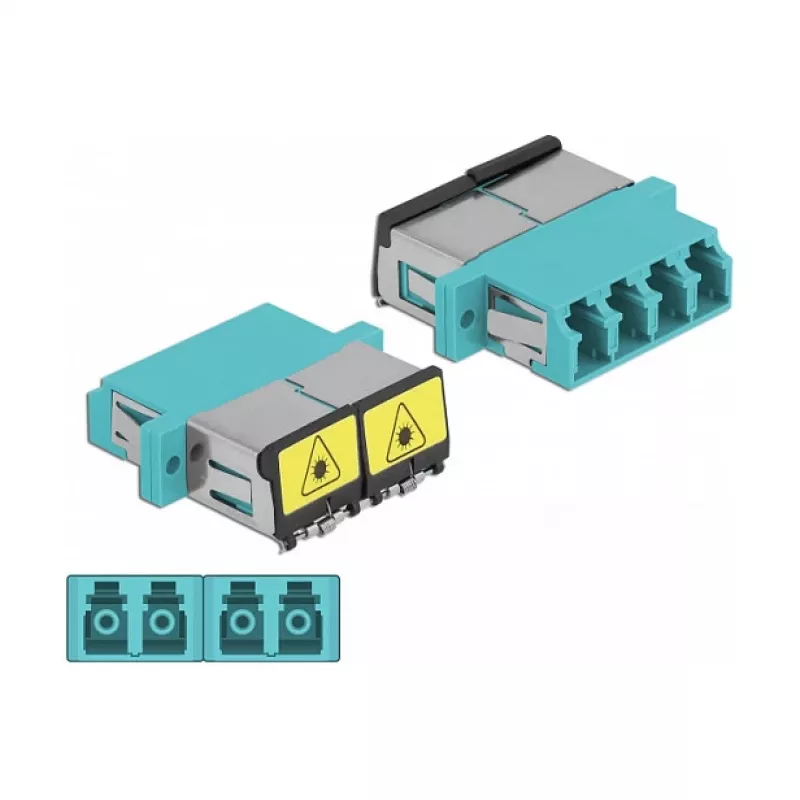

Optical Fiber Coupler DeLOCK 86905 LC Quad female to LC Quad female Multi-mode aqua

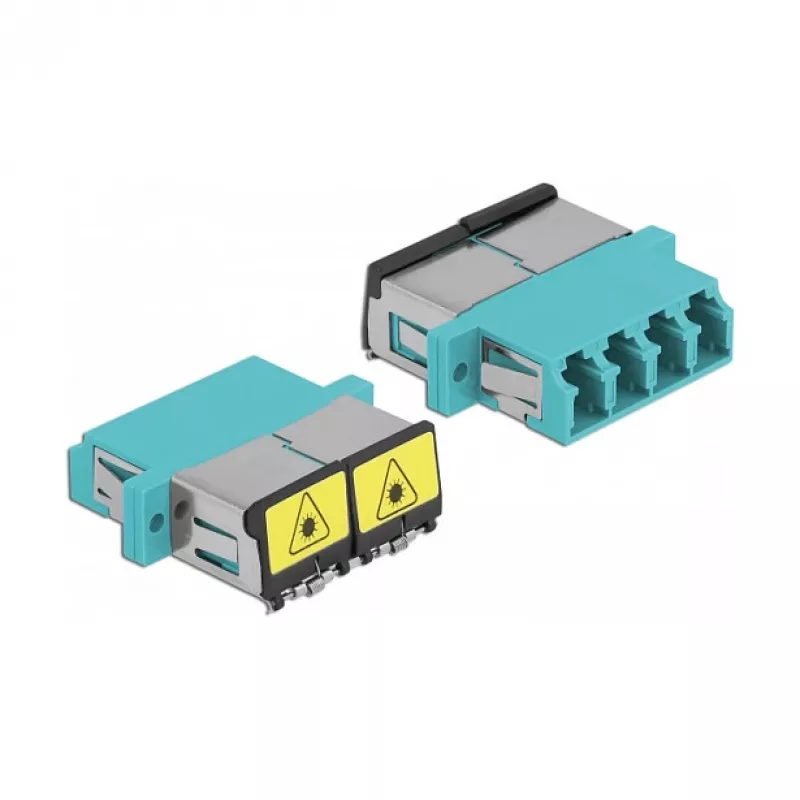

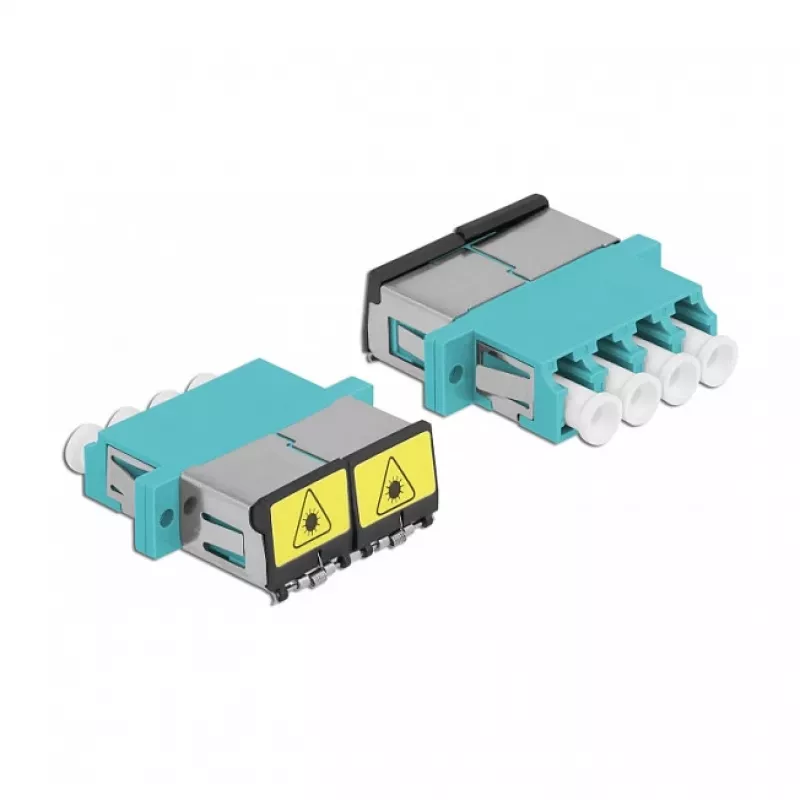

The DeLOCK Optical Fiber Coupler 86905 is an LC Quad female to LC Quad female multi-mode coupler in aqua color designed for straightforward connections between optical fiber male connectors. Its compact dimensions (25.6 mm W × 29.2 mm D × 9.3 mm H) and two-coupler pack facilitate installation in fiber connection boxes, cabinets and patch panels. The integrated flip provides protection against laser radiation and each coupler includes a dust cap to keep the sleeve clean.

Advantages

The LC Quad design supports reliable alignment of four fibers per connector for consistent multi-mode transmission. The small form factor allows space-saving mounting in standard panels and enclosures. Built-in laser protection increases safety during handling and installation, and supplied dust caps protect ferrules from contamination.

Suitable for

• Patch panels and rack-mounted fiber cabinets
• Optical fiber connection boxes and splicing enclosures
• Multi-mode LC Quad fiber links and short-reach networks
• Field installations and laboratory test setups

Key specifications

• Model: DeLOCK 86905
• Connector type: LC Quad female to LC Quad female
• Fiber type: Multi-mode
• Color: Aqua
• Dimensions: 25.6 × 29.2 × 9.3 mm (W × D × H)
• Pack quantity: 2 couplers
• Protection: Integrated flip for laser protection; dust cap included
• Brand: DELOCK
• MPN: 86905
• EAN: 4043619869053

How to use

Open the dust cap and align the male LC Quad connector with the female coupler; gently insert until it clicks into place. Use the integrated flip as intended to ensure laser protection during connection and disconnection. When the coupler is not in use, replace the dust cap to keep the sleeve free from dust and debris. Mount the coupler into the desired panel or box according to the enclosure manufacturer’s installation instructions.

Recommendations

Handle fiber connectors and couplers in a clean environment and avoid touching the ferrule surfaces. Use the dust cap whenever the coupler is idle. Follow standard fiber safety procedures and use appropriate personal protective equipment when working near active optical sources.
