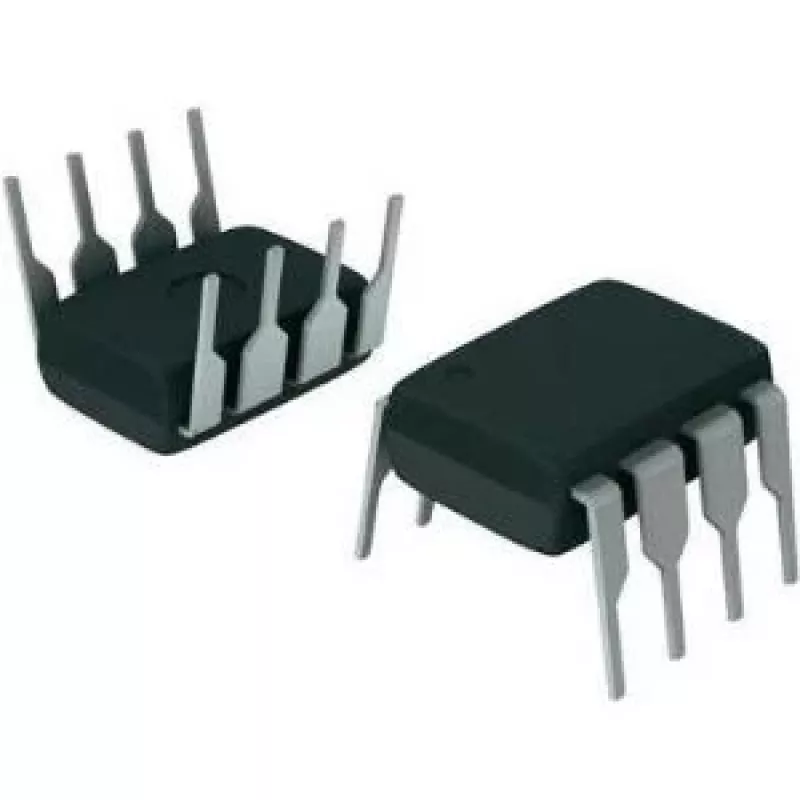

Operational amplifier Texas Instruments OPA27GP — single‑channel, 8 MHz bandwidth, compact SMD package

The Texas Instruments OPA27GP is a single-channel operational amplifier offering an 8 MHz bandwidth in a compact SMD package (dimensions: 10.2 × 6.6 × 4.57 mm). Engineered for precision analog signal conditioning, this device is suitable for low-noise amplification, active filters and instrumentation front-ends in both consumer and industrial electronics. The OPA27 family uses laser-trimmed thin-film resistors for improved long-term offset stability and includes an internal bias current cancellation circuit that maintains bias and offset current performance across the −40°C to +85°C temperature range. The OPA27 is internally compensated for unity-gain stability.

Advantages

The OPA27GP provides low input noise and high precision due to laser-trimmed thin-film resistors, resulting in superior long-term offset stability. Its bias current cancellation circuit ensures consistent bias and offset current performance over a wide temperature range. The device’s compact SMD package supports space-constrained PCB designs while delivering an 8 MHz bandwidth appropriate for many analog signal conditioning tasks. Internal compensation in the OPA27 simplifies design when unity-gain or low closed-loop gains are required.

Suitable for

• Low-noise amplification in sensor and audio circuits
• Active filters and signal conditioning stages
• Instrumentation front-ends and precision measurement circuits
• Space-limited PCB layouts and SMD assemblies
• Consumer and industrial electronic designs requiring stable offset performance

Key specifications

• Amplifier channels: single-channel
• Bandwidth: 8 MHz
• Package type: compact SMD package
• Typical package dimensions: 10.2 × 6.6 × 4.57 mm
• Offset stability: laser-trimmed thin-film resistors for improved long-term stability
• Temperature range performance: bias/offset maintained across −40°C to +85°C
• Compensation: internally compensated for unity-gain stability (OPA27)

How to use

Integrate the OPA27GP into your PCB layout as a standard single operational amplifier SMD device, paying attention to recommended grounding and decoupling practices typical for precision amplifiers. Use appropriate power supply bypass capacitors close to the device to minimize supply-induced noise. Design feedback networks and input conditioning to match the desired closed-loop gain and bandwidth requirements; because the OPA27 is internally compensated for unity-gain stability, it can be used in unity or low-gain configurations without additional phase compensation. For instrumentation or low-noise stages, minimize source impedance and follow layout best practices to preserve the amplifier’s low-noise performance.

Recommendations

For best performance, place bypass capacitors close to the supply pins, keep input traces short, and use a low-noise reference and proper grounding. When designing for wide temperature ranges, verify circuit performance across −40°C to +85°C to ensure offset and bias meet application requirements.
