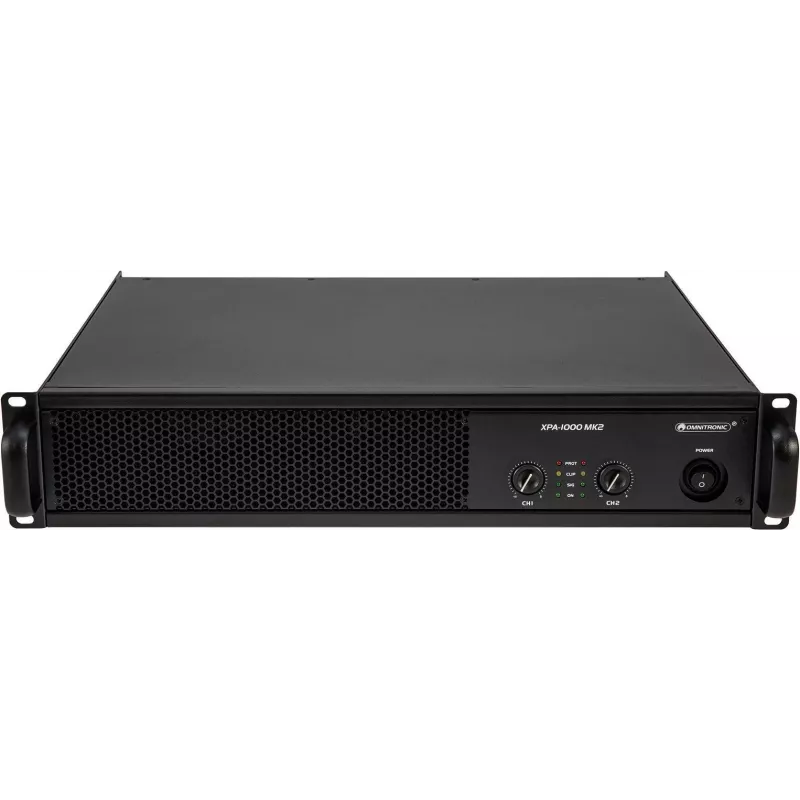

OMNITRONIC XPA-1000 MK2 Power Amplifier 2x500W 4 Ohm 10451003

The OMNITRONIC XPA-1000 MK2 is a professional 2-channel power amplifier delivering 2 x 500 W RMS at 4 ohms, engineered for demanding live sound and fixed installation applications. Its robust Class AB design and comprehensive protection circuitry ensure reliable performance even under continuous high-load operation.

Advantages

With a high damping factor of >350 and a signal-to-noise ratio exceeding 90 dB, this amplifier provides tight bass control and a clean, transparent sound. The bridge mode offers 1000 W RMS at 8 ohms for driving high-power subwoofers or full-range cabinets. Dual variable-speed fans keep the unit cool while maintaining low noise, and the ground lift switch helps eliminate hum in complex setups.

Suitable for

• Live sound reinforcement for bands and DJs
• Fixed installations in clubs, bars, and houses of worship
• Powering passive PA speakers and monitor wedges
• Mobile entertainers needing reliable, rack-mountable amplification

Key specifications

• Output power: 2 x 500 W RMS @ 4 ohms, 2 x 350 W RMS @ 8 ohms, 1 x 1000 W RMS bridged @ 8 ohms
• Class AB amplifier topology with low THD (<0.5%)
• Frequency response: 20 Hz – 20 kHz
• Inputs: 2 x XLR and 2 x 6.3 mm jack (balanced/unbalanced)
• Outputs: 2 x Speaker Twist (NL4) and 2 x binding posts
• Protection: short circuit, DC voltage, temperature, overload, softstart
• 2 RU rack-mountable chassis with front-panel level controls
• Power supply: 230 V AC, 50 Hz; max consumption 1100 W

Recommendations

Pair the XPA-1000 MK2 with high-quality passive speakers rated for at least 500 W program power at 4 ohms. For subwoofer applications, use the bridge mode with an 8-ohm subwoofer to maximize headroom. Ensure proper ventilation in the rack and use balanced XLR cables for long signal runs.
