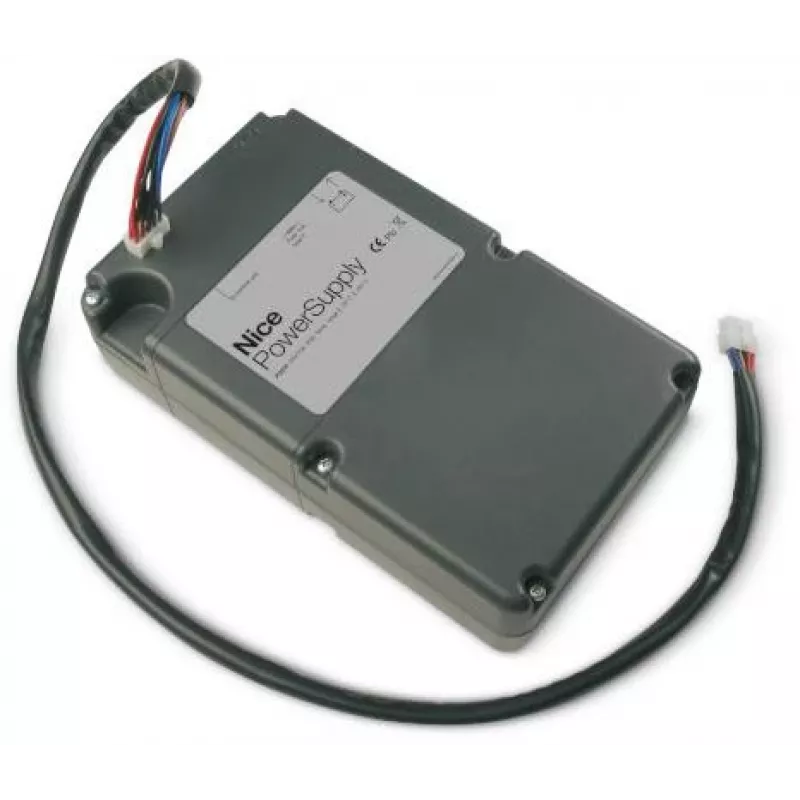

Nice PS224 Emergency Power Supply 24V 7.2Ah with Charging Board

The Nice PS224 is a high-performance emergency power supply unit designed for Nice 24V automation systems. It features a sealed lead-acid (AGM) battery with a nominal voltage of 24V and a capacity of 7.2Ah, providing reliable backup power for gate openers, garage door openers, and barriers. The integrated charging control board ensures safe and efficient charging, extending battery life.

Advantages

Reliable emergency power supply with integrated charging board; maintenance-free AGM technology; long service life of 3-5 years in standby use; overcharge and deep discharge protection.

Suitable for

• Nice 24V automation systems
• Gate openers
• Garage door openers
• Barriers

Key specifications

• Battery Technology: Sealed Lead-Acid (AGM)
• Nominal Voltage: 24V DC
• Nominal Capacity: 7.2Ah
• Energy Storage: 172.8Wh
• Configuration: 2 x 12V 7.2Ah batteries in series
• Integrated Feature: Charging Control Board
• Operating Temperature (Discharge): -10°C to +50°C
• Operating Temperature (Charge): 0°C to +40°C
• Storage Temperature: -20°C to +50°C
• Expected Service Life: 3-5 years (standby use)
• Rechargeable: Yes
• Mounting Type: Designed for internal integration into Nice control units
• Terminal Type: Internal connector for Nice control units
• Protection Features: Overcharge protection, Deep discharge protection (system dependent)

Recommendations

For optimal performance, ensure the battery is installed in a compatible Nice control unit and follow the manufacturer's guidelines for charging and maintenance.
