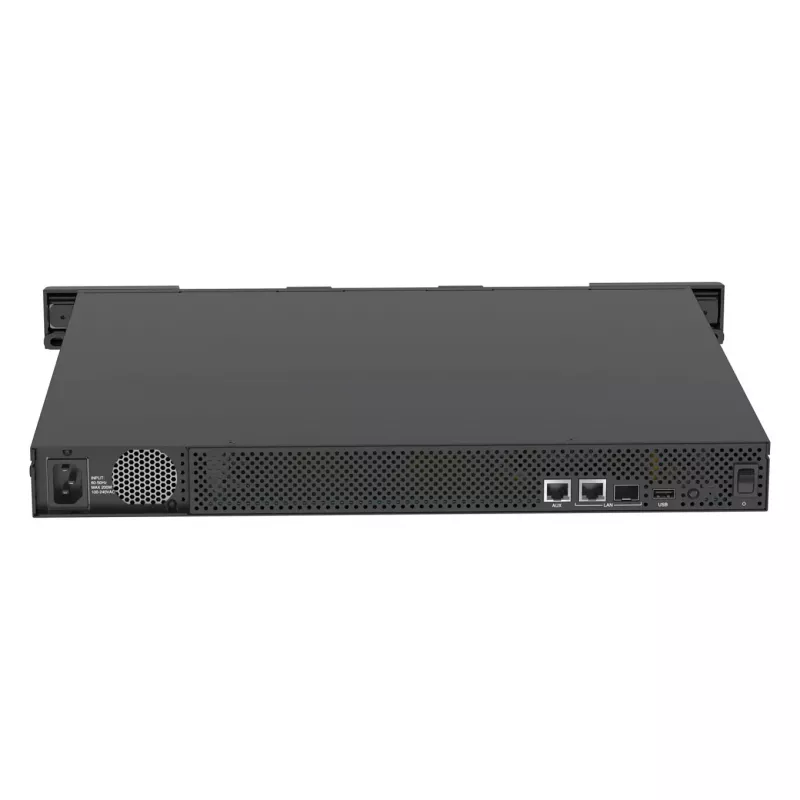

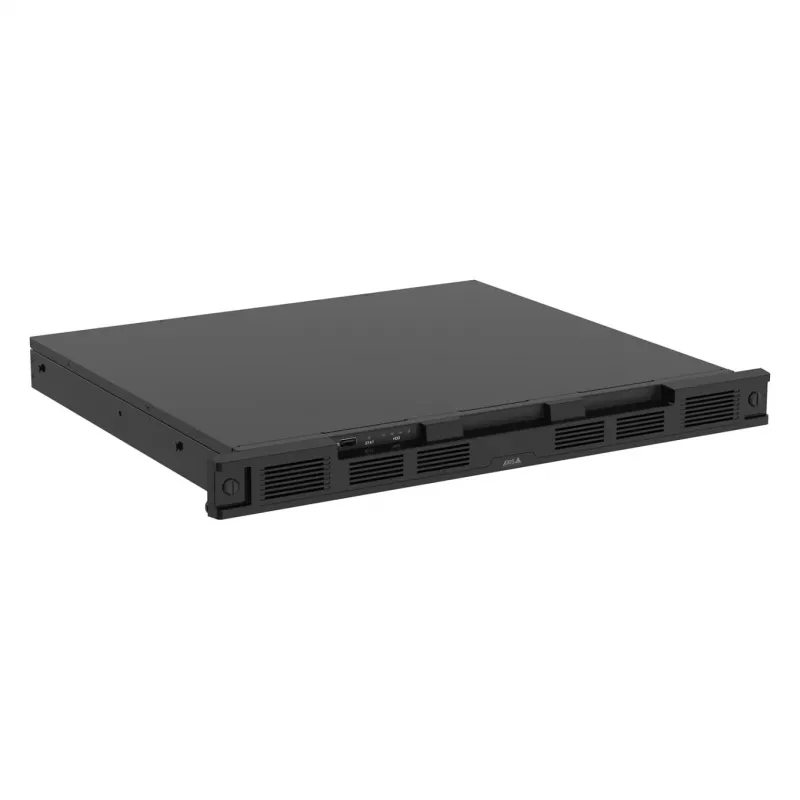

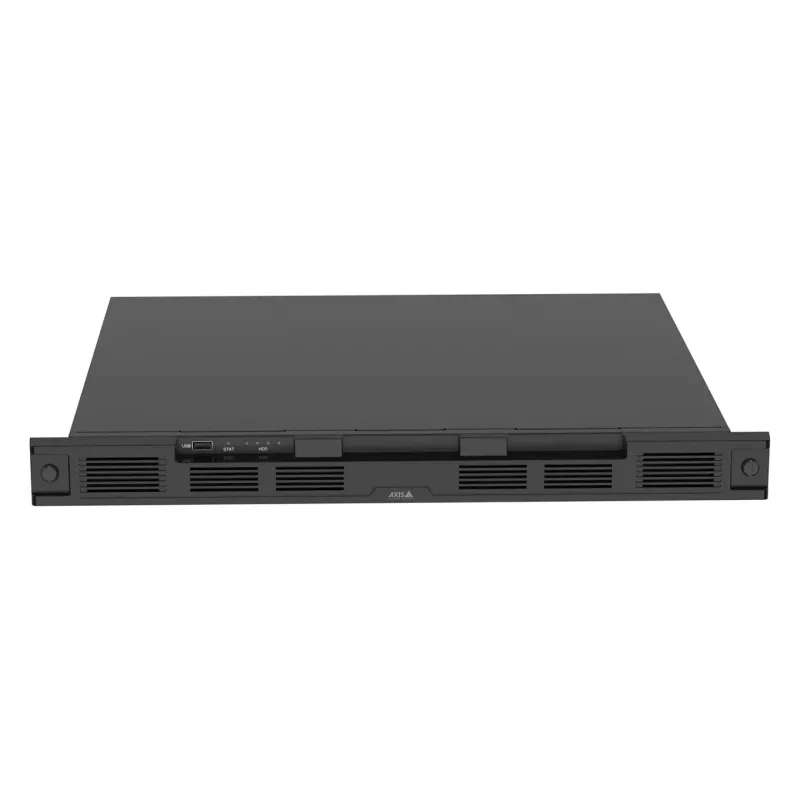

Network Video Recorder AXIS S4000 1U, 16-ch video input, 16 TB installed, up to 32 TB, H.264/H.265, 1U rack

AXIS S4000 1U is a rack-mounted network video recorder designed for centralized recording and storage in commercial and institutional surveillance systems. The recorder supports 16 video input channels, AAC audio, and common video codecs including AVC/H.264, H.265/HEVC and MPEG-4. It ships with 16 TB of surveillance-grade storage installed and is expandable to a maximum of 32 TB (max 4 TB per drive). Built on AXIS OS and complying with Axis security development practices, this 1U rack device offers encrypted storage and transmission plus support for industry security protocols such as 802.1X RADIUS, EAP-TLS, HTTPS and TLS.

Advantages

AXIS S4000 1U provides a compact, quiet rack-mounted solution that integrates with AXIS Camera Station Edge and AXIS Camera Station Pro for centralized management. Its surveillance-grade HDDs and multiple RAID options (0, 1, 5, 6, 10) reduce the risk of data loss and recording gaps while enabling flexible retention policies. The recorder is tested for interoperability with Axis products and third-party network switches, and includes robust cybersecurity features and compliance with TAA/NDAA requirements.

Suitable for

Key specifications

How to use

Install AXIS S4000 1U in a standard 19-inch rack and connect the recorder to your network switch and cameras. Configure storage and RAID settings according to desired retention and redundancy through the integrated management interface or via AXIS Camera Station software. Use the AXIS Camera Station Edge or Pro to add cameras, set recording schedules (continuous or event-based), and manage user access. Ensure network and time synchronization settings are configured to maintain accurate timestamps for recorded video.

Recommendations

For reliable long-term recording, choose a RAID level that matches your redundancy needs and maintain regular backup and maintenance schedules. Use surveillance-grade HDDs and keep firmware and security patches up to date via AXIS OS updates. When deploying across multiple sites, leverage the recorder’s compatibility with AXIS Camera Station Edge and Pro to centralize management while retaining local storage to reduce network load.
