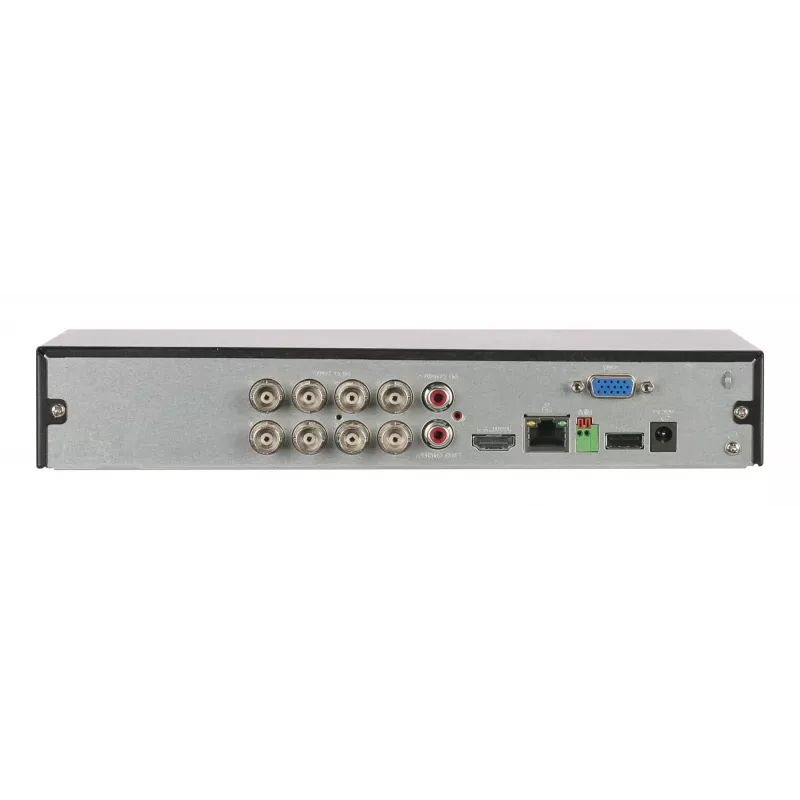

Digital Video Recorder DAHUA XVR5108HS-4KL-I3/T — 8-channel DVR, H.265/H.264, SATA up to 16TB, Gigabit Ethernet, 12V DC, Black

DAHUA XVR5108HS-4KL-I3/T is an 8-channel digital video recorder designed for small commercial and residential surveillance systems. The recorder supports multiple video compression standards including H.265, H.265+, H.264 and H.264+, and accepts analog and IP inputs, enabling flexible deployment with HDCVI, AHD, TVI, CVBS and IP cameras. It includes Gigabit Ethernet, one RJ-45 port, two USB 2.0 ports and one USB 3.2 Gen1 Type-A port, and supports a SATA hard drive up to 16 TB. The unit is powered by 12 V DC with typical power consumption around 10 W and comes in a compact black housing weighing approximately 0.9 kg.

Advantages

The recorder integrates AI-powered features from Dahua’s WizSense platform such as face recognition, perimeter protection, SMD Plus and AcuPick for faster and more accurate target retrieval and alarm filtering. Enhanced encoding and AI coding reduce storage and bandwidth needs while preserving target details. Two-way talk over coaxial cable provides direct voice intercom between camera, client and recorder. Broad compatibility with up to 16 channels of IP input and support for Wi‑Fi cameras makes the XVR flexible for mixed analog-IP installations.

Suitable for

• Small retail shops and boutiques
• Residential buildings and home surveillance
• Small offices and reception areas
• Remote monitoring where bandwidth and storage optimization are required
• Sites requiring AI-assisted detection such as perimeter or face-based access logs

Key specifications

• Channels: 8-channel recorder with support for additional IP channels (up to 16-channel IP input)
• Video compression: H.265, H.265+, H.264, H.264+
• Maximum analog resolution support: up to 5 MP compatibility and 1080p recording
• IP input: up to 8 MP per channel, total incoming bandwidth up to 128 Mbps
• Storage interface: SATA hard drive support up to 16 TB
• Network: Gigabit Ethernet (RJ-45), supports HTTP, RTSP, TCP/IP, DHCP, DDNS, P2P
• USB: 2 × USB 2.0, 1 × USB 3.2 Gen1 Type-A
• Power: 12 V DC, typical consumption around 10 W
• Form factor and colour: compact black chassis, weight approx. 0.9 kg
• Intelligent features: Perimeter Protection, SMD Plus, AcuPick, Face Recognition, AI coding and Enhanced Encoding

How to use

Install the DAHUA XVR5108HS-4KL-I3/T in a stable, ventilated location near the cameras and network connection. Mount and connect analog cameras via coaxial cables or add IP cameras to the network; connect the recorder to the LAN using the Gigabit Ethernet port. Install a SATA hard drive (up to 16 TB) following the manufacturer’s instructions, and connect power using the 12 V DC input. Configure recording channels, encoding profiles and AI rules (perimeter, SMD, face recognition) through the recorder’s local interface or via Dahua client software/DMSS mobile app. Set up user accounts, network parameters (DHCP or static IP), and configure motion detection or AI-triggered alarms as needed.

Recommendations

For reliable performance, use a high-quality SATA surveillance-grade HDD sized to retention requirements and configure H.265/H.265+ to reduce storage usage. Regularly update firmware and maintain a secure network configuration. When using facial recognition or perimeter protection, create and manage face or event databases carefully and test AI sensitivity to minimize false alarms from environmental factors.
