Network Media Converter Trendnet TI-F10S30

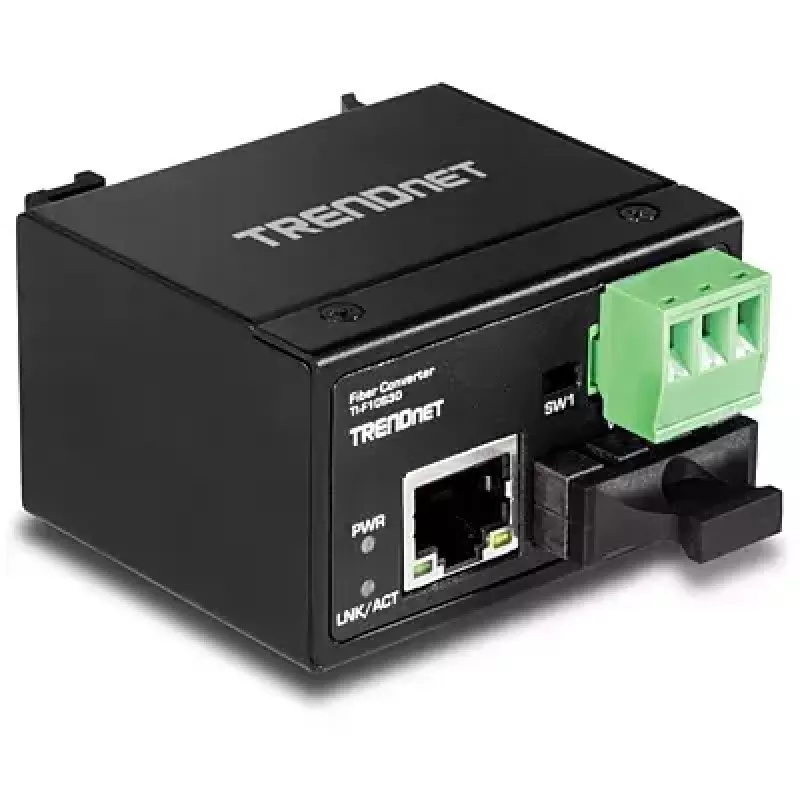

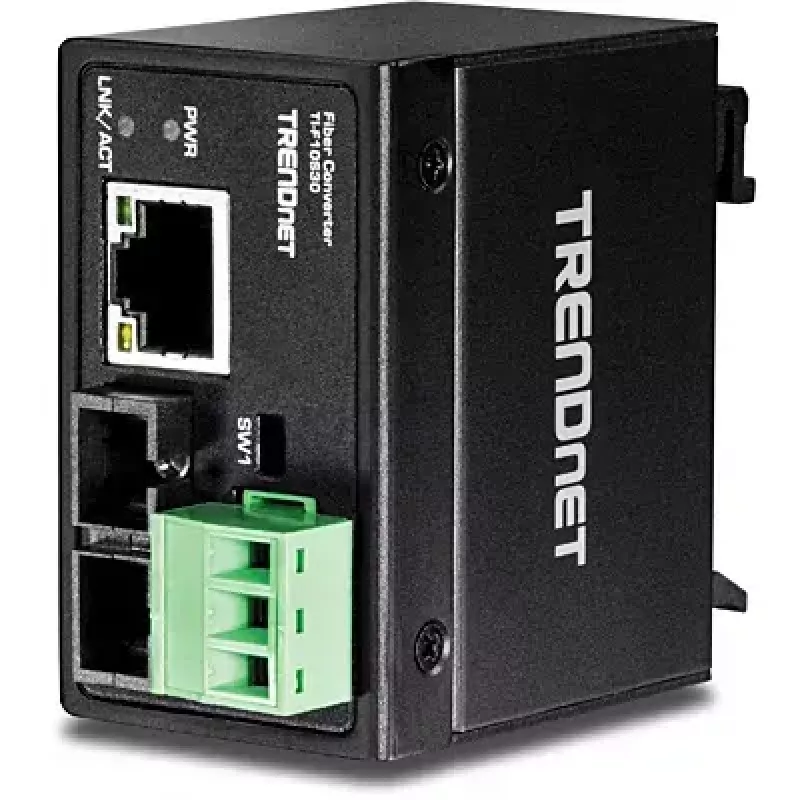

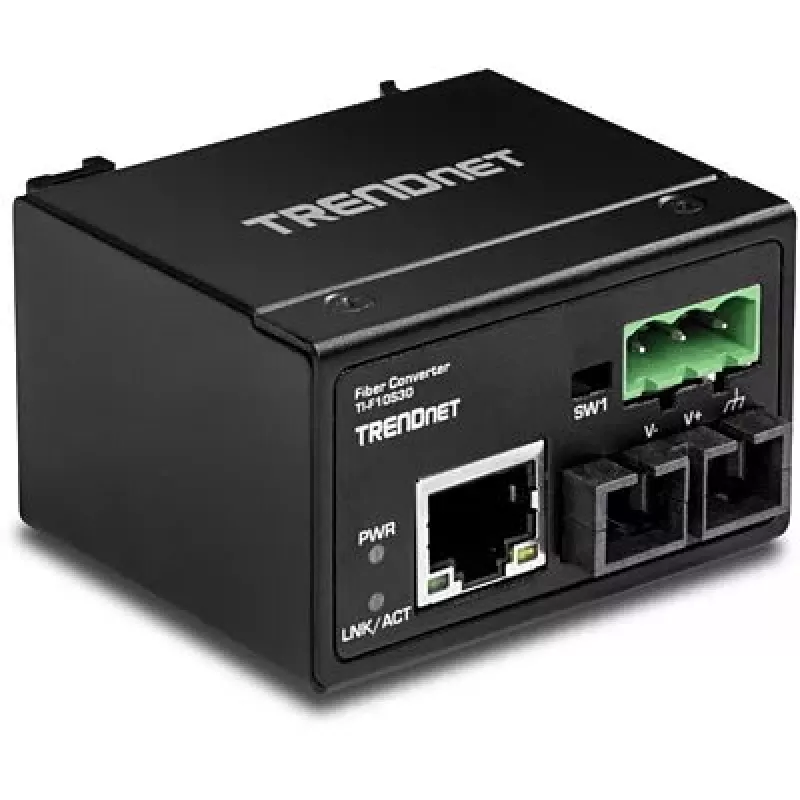

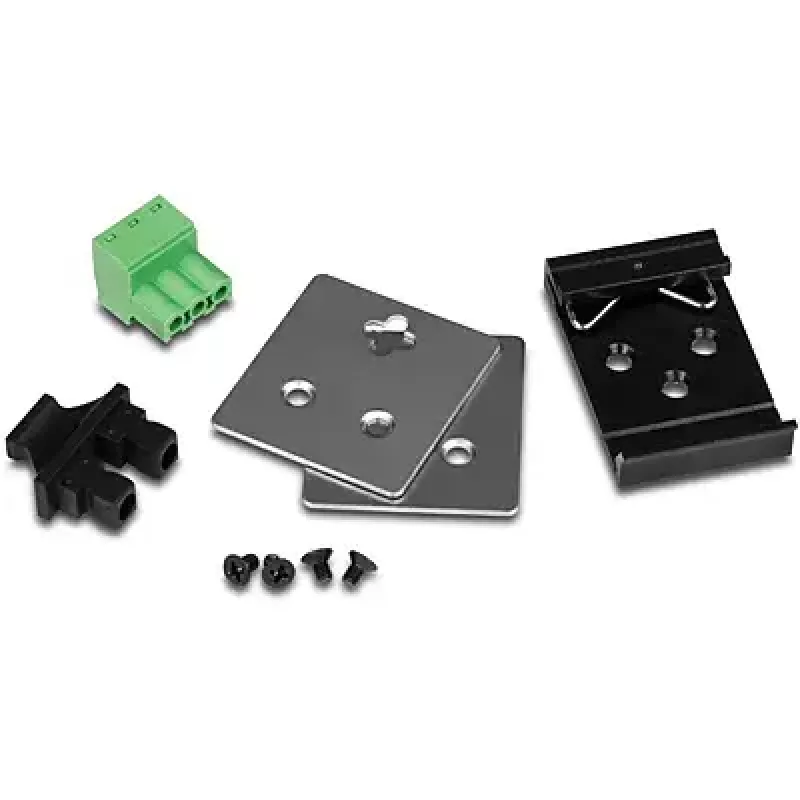

The Network Media Converter Trendnet TI-F10S30 is a compact, industrial-grade media converter that converts 100Base-TX copper Ethernet to 100Base-FX single-mode fiber. Housed in a rugged metal enclosure with an IP40 rating, the TI-F10S30 supports long-distance fiber links up to 30,000 meters (30 km) using SC connectors and operates over a wavelength of 1310 nm. It includes both DIN-rail and wall-mount hardware; power supply is sold separately (model TI-M6024).

Advantages

The TI-F10S30 provides reliable fiber connectivity with a maximum data transfer capability of 200 Mbit/s and supports 10/100 Mbit/s Ethernet on the RJ-45 port. Its hardened components and metal housing offer durability for industrial environments, while the single-mode SC fiber interface enables long-reach connections up to 30 km. Low power consumption and compact size make it suitable for space-constrained installations.

Suitable for

• Extending Ethernet networks over long distances (up to 30 km)
• Industrial automation and factory floor networking
• Connecting remote network segments or CCTV systems
• Locations requiring DIN-rail or wall mounting

Key specifications

• Model: TRENDnet TI-F10S30
• Ethernet interface: 1 x 100Base-TX (RJ-45), 10/100 Mbit/s
• Fiber interface: 1 x 100Base-FX single-mode, SC connector
• Maximum transfer distance: 30,000 m (30 km) at 1310 nm
• Maximum data transfer rate: 200 Mbit/s
• Power: operates from 12–60 V (power supply TI-M6024 sold separately)
• Power consumption: up to 1.92 W
• Ingress protection: IP40
• Weight: 0.09 kg
• Colour: Black

How to use

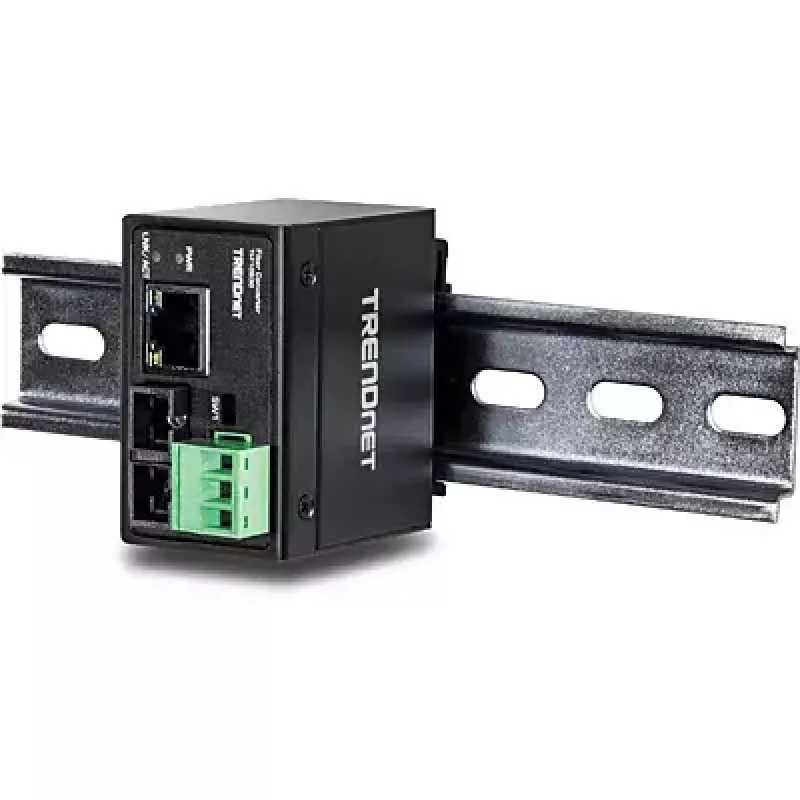

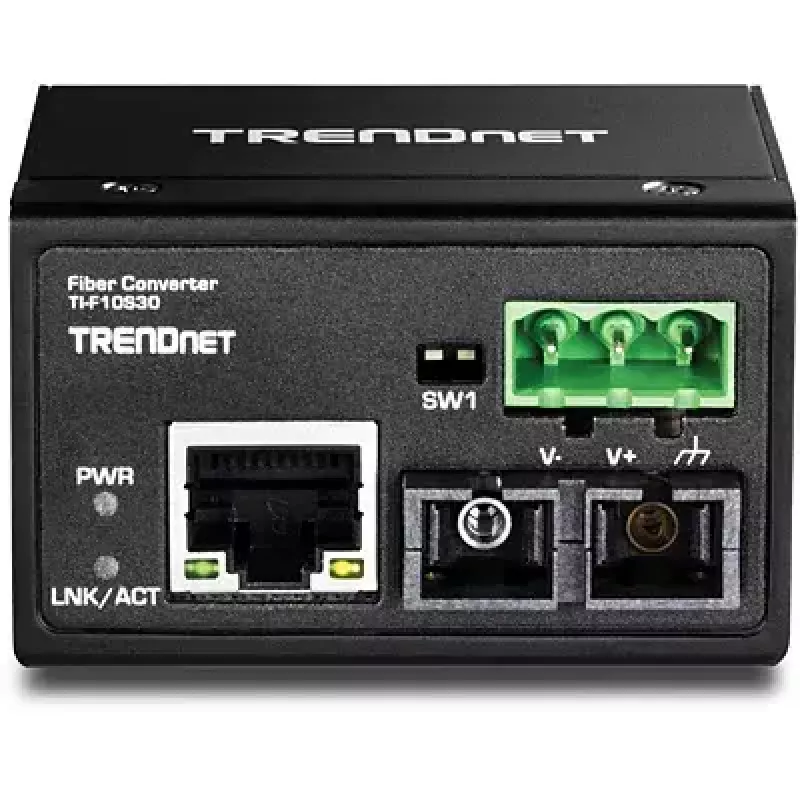

Mount the TI-F10S30 on a DIN-rail or wall using the supplied hardware. Connect the copper Ethernet device to the RJ-45 100Base-TX port and attach a single-mode SC fiber cable to the 100Base-FX port. Install a compatible 12–60 V DC power supply (TI-M6024 sold separately) and apply power. Verify link and activity LEDs to confirm successful connectivity and proper operation.

Recommendations

For stable long-distance links, use single-mode SC fiber of appropriate quality and ensure connectors are clean. Place the converter in a dry, ventilated area within its IP40 rating, and use the recommended TRENDnet power supply (TI-M6024) to guarantee proper voltage and polarity.
