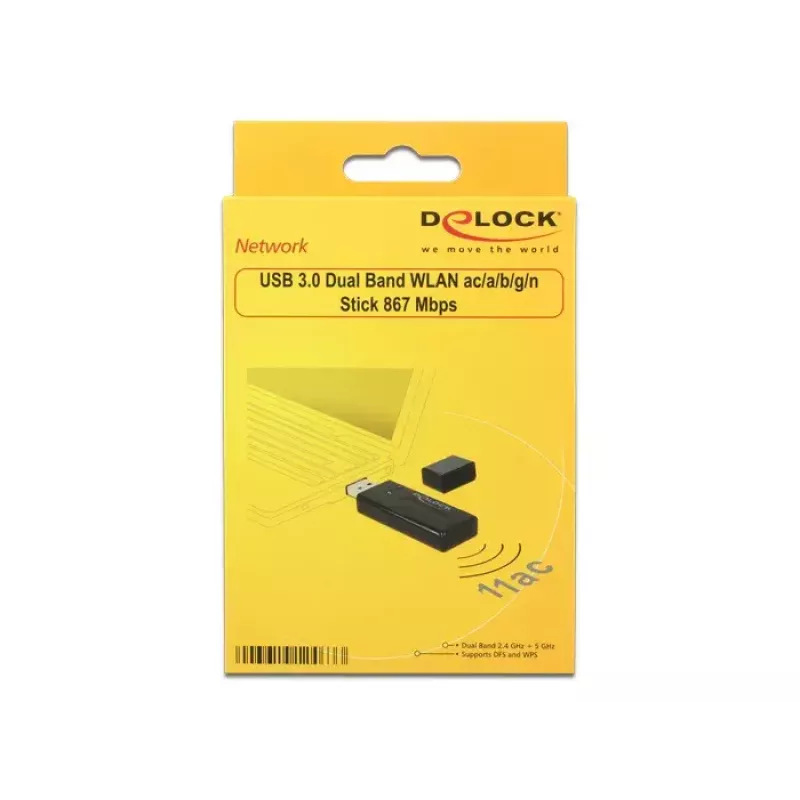

Network Card DeLOCK 12463 WLAN 867 Mbit/s

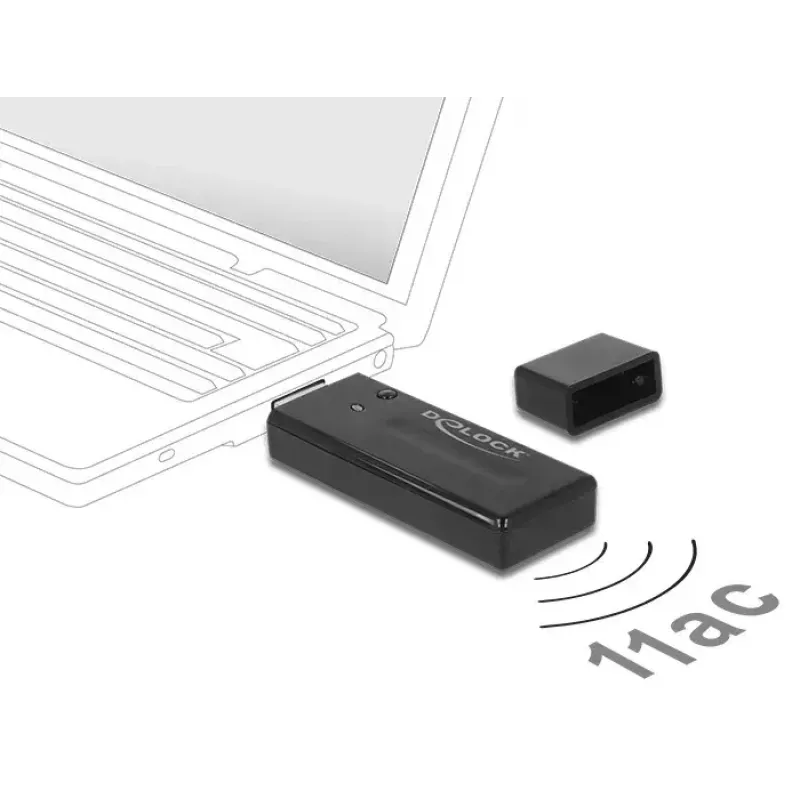

The DeLOCK 12463 WLAN USB stick provides wireless network connectivity via USB, supporting Wi‑Fi 5 (IEEE 802.11ac) and earlier 802.11n/g/b standards. It operates in both 2.4 GHz and 5 GHz bands and offers a maximum data transfer rate of 867 Mbit/s. The compact black adapter enables connection to access points, WLAN routers or direct adhoc links to another computer.

Advantages

The USB WLAN adapter supports dual‑band operation (2.4 GHz and 5 GHz) and the 802.11ac standard for higher throughput up to 867 Mbit/s. Its USB interface allows easy installation on desktop or laptop computers without internal card replacement. The compact black design is unobtrusive and suited for portable use.

Suitable for

• Connecting a desktop or laptop to a home or office WLAN
• Upgrading devices without built‑in Wi‑Fi to Wi‑Fi 5 performance
• Establishing adhoc connections between two computers

Key specifications

• Model: DeLOCK 12463
• Interface: USB (WLAN USB stick)
• Standards: IEEE 802.11ac, 802.11n, 802.11g, 802.11b
• Maximum data transfer rate: 867 Mbit/s
• Frequency bands: 2.4 GHz and 5 GHz
• Colour: Black

How to use

Insert the DeLOCK 12463 USB WLAN stick into an available USB port on your computer. Install drivers if prompted by the operating system or use the manufacturer’s provided driver if necessary. After driver installation, scan for available WLAN networks, select your access point or router, and enter the network credentials. For an adhoc link, configure the wireless mode to ad hoc on both machines and connect directly.

Recommendations

Place the adapter in an unobstructed USB port for optimal signal reception and prefer the 5 GHz band for higher throughput when available; use 2.4 GHz for better range through obstacles.
