Network Cable Tester ShiverPeaks BS75616

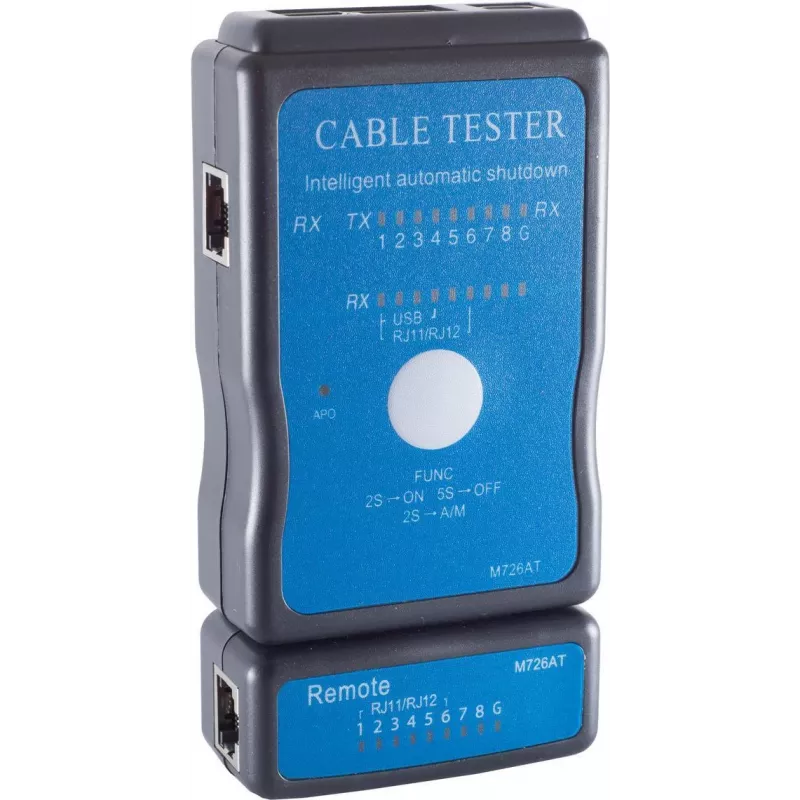

The ShiverPeaks BS75616 network cable tester is a handheld tool for verifying continuity and proper wiring of RJ‑45 and USB cables. It provides visual confirmation via a clear LED display and is powered by a single 9V battery. The compact black-and-blue housing is designed for portability and basic field diagnostics, allowing technicians and DIY users to quickly check pin-to-pin connections, locate open circuits, and verify cable termination.

Advantages

The tester offers a simple, one-person testing workflow with a clear LED indication scheme that reduces ambiguity when identifying wiring faults. Its compact size and lightweight construction make it easy to carry in a toolkit or pocket. Battery operation eliminates the need for mains power during on-site checks, and the device supports both RJ‑45 and USB cable types for versatile troubleshooting.

Suitable for

• Verifying Ethernet patch cables and network terminations
• Checking USB cable continuity and pin mapping
• Quick on-site diagnostics by IT technicians and installers
• Home network troubleshooting and DIY projects

Key specifications

• Supported connector types: RJ‑45 and USB
• Display: multi-segment LED indicators for pin status
• Power source: single 9V battery
• Form factor: compact handheld design with durable housing
• Color: black and blue

How to use

Connect one end of the cable to the main unit and the other end to the remote or appropriate port on the tester. Power the device with a 9V battery and select the required test mode if applicable. Observe the LED sequence to determine continuity, open/short circuits, or miswired pins. For cables with multiple conductors, follow the LED order to confirm correct pin mapping from end to end. Turn off the tester after completing checks to conserve battery life.

Recommendations

Use the tester in dry indoor conditions and avoid exposing it to extreme temperatures or moisture. Replace the 9V battery when indicator brightness diminishes to ensure reliable readings. For more complex diagnostics such as signal loss, attenuation, or intermittent faults, combine this continuity tester with specialized network test equipment.
