Network Cable Tester LogiLink WZ0017

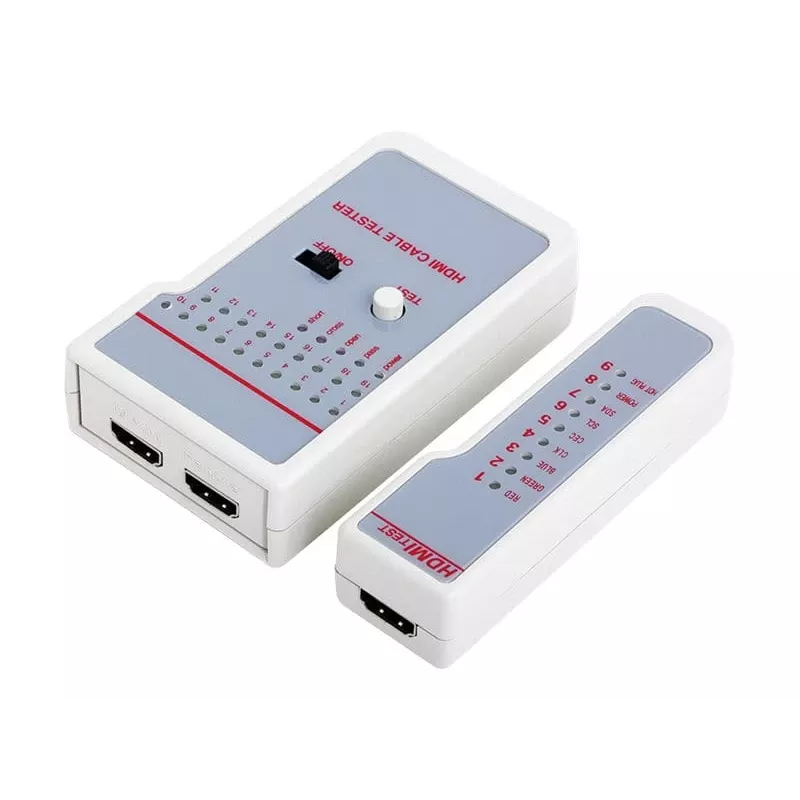

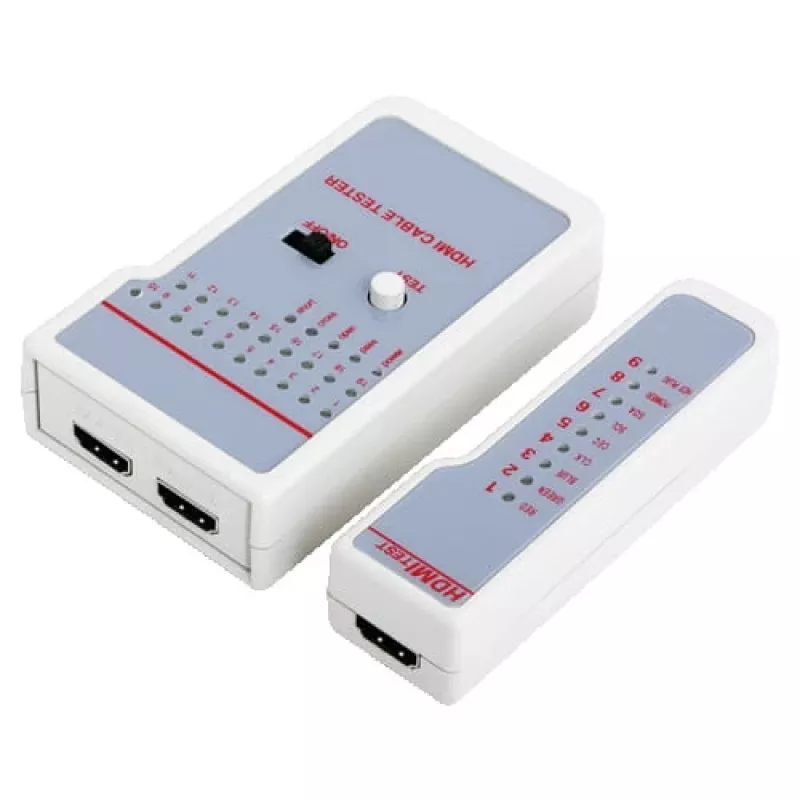

LogiLink HDMI Cable Tester WZ0017 is a handheld tester for checking installed or bulk HDMI cables. The tester includes a main unit and a remote unit and connects via two HDMI A plugs to verify all conductor pairs and shielding. It is battery powered (9 V block battery not included) and offers both visual and audible indicators to show connection status and faults.

Advantages

The compact ergonomic design makes the tester portable and easy to handle on-site. A single-button operation allows quick testing without setup. LEDs provide clear indication of connection status and fault location, while optical and acoustical signals give immediate feedback. The included remote unit lets you test a complete cable run after installation.

Suitable for

• Testing already installed HDMI cabling
• Verifying bulk HDMI cable runs before or after installation
• Identifying opened/shorted conductor pairs and shielding issues
• Field technicians and DIY home AV setup checks

Key specifications

• Brand: LOGILINK
• Model: WZ0017
• Connector type: 2 × HDMI A plugs
• Power: 9 V battery block (not included)
• Indicators: LEDs and audible signals
• Dimensions: 19.8 cm × 12 cm × 3.85 cm

How to use

Insert a 9 V block battery into the main unit, connect the main unit and remote unit to the cable under test using the HDMI A plugs, then press the single test button. Observe the LEDs and listen for acoustic signals to determine whether each conductor pair and the shielding are correctly connected. Use the remote unit at the far end of the cable to verify end-to-end continuity.

Recommendations

Use a fresh 9 V battery for reliable results, test cables with both connected devices disconnected, and interpret LED patterns according to the manufacturer’s indicator scheme to locate specific faults.
