HDMI cable tester No name UT681HDMI — HDMI continuity and wiring verification

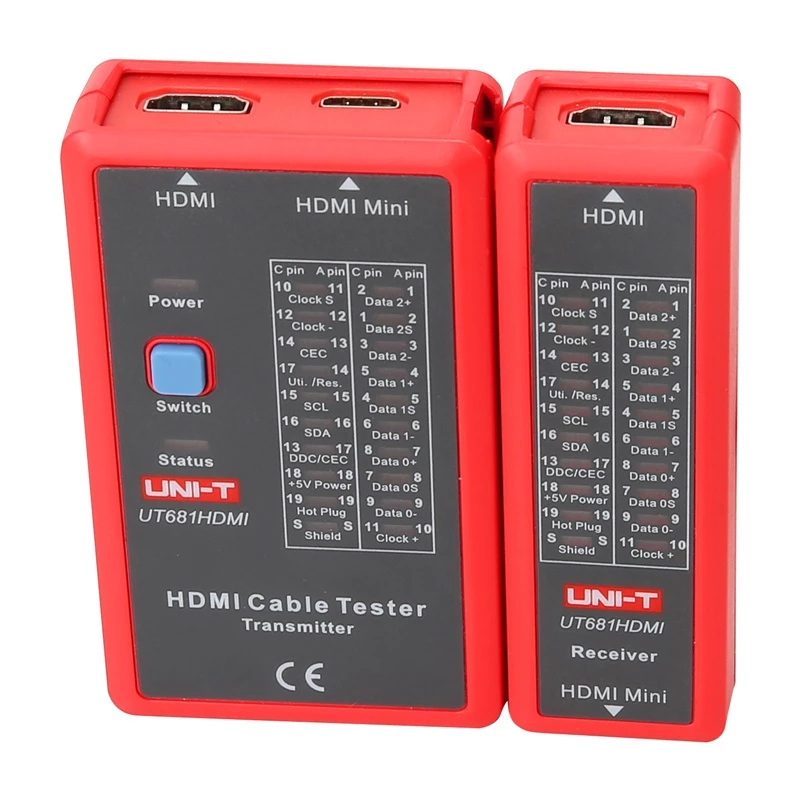

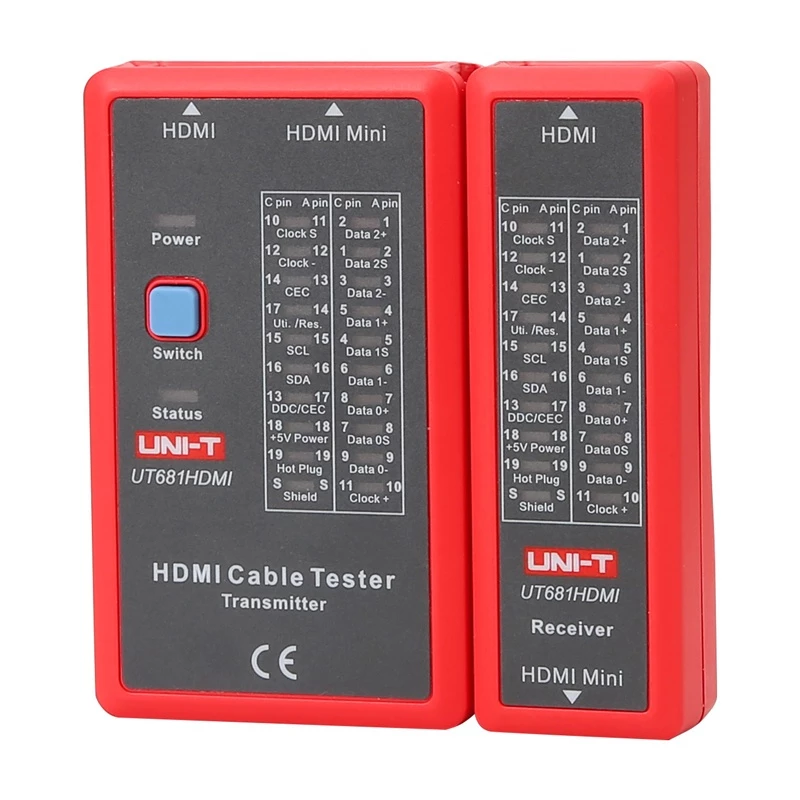

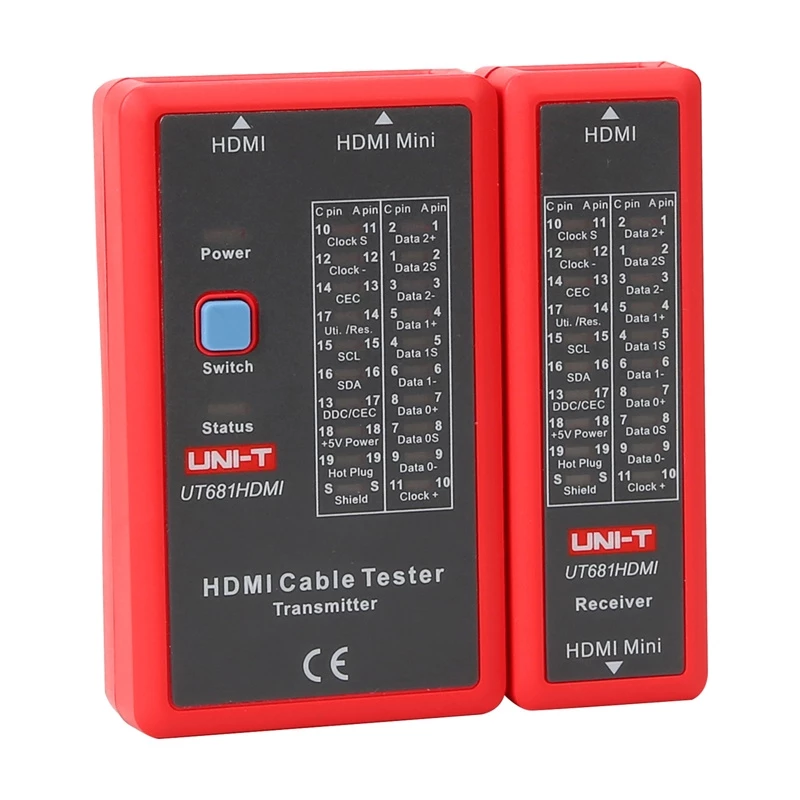

UNI-T UT681HDMI HDMI cable tester

UNI-T UT681HDMI cable tester is a practical tool created to instantly diagnose the condition of HDMI and Mini HDMI cables. With it, you can easily detect breaks, short circuits, misconnections and other common damages that can affect video and audio transmission. The UT681HDMI's compact design, simple operation and precise LED indicators make it an indispensable piece of equipment for service and installation workshops, as well as for anyone who frequently works with audiovisual equipment.

Full diagnostics

The tester is equipped with an intuitive LED system, which allows accurate analysis of as many as 19 pins of an HDMI cable - including the signal ground. The selection of the test mode (fast, full or scan) is done automatically, without complicated configuration. This is a convenient solution for both professionals and home users. The UT681HDMI also supports Mini HDMI connections, making it a universal tester for cables used in monitors, cameras, consoles or projectors.

Compact form factor, high mobility

Thanks to its compact size and low weight, the UT681HDMI will easily fit into the pocket of a tool bag. Power supply from a classic 9V battery and automatic and manual shutdown functions guarantee long operation without the need for frequent replacement of the power source. The device informs you of low battery levels, so you can avoid unexpected interruptions in work.

Robust design and safe operation

The tester's housing is made of durable materials in a red-gray color scheme, typical of UNI-T service equipment. The UT681HDMI meets CE and UKCA safety standards, and its operating range includes temperatures from 0 to 40°C and humidity up to 80%, allowing it to be used in a variety of working environments.

Included

• UNI-T UT681HDMI HDMI cable tester (transmitter and receiver)
• 9V battery
• User manual (English)

How to use

Connect one end of the HDMI cable to the tester's main unit and the other end to the remote/loop connector if provided, or attach the appropriate adapter where required. Power the unit using its internal battery and initiate the test according to the device's control (single-button or switch). Observe the visual indicators to determine if each pin is continuous, shorted or miswired. If the results show faults, retest with known-good cables or inspect connectors for damage, bent pins or improper soldering.

Recommendations

Use the tester in dry, indoor environments and avoid applying excessive force to HDMI connectors. For ambiguous results, verify with a second known-good cable or inspect connectors under magnification. Replace batteries before extended diagnostic sessions to ensure reliable readings.
